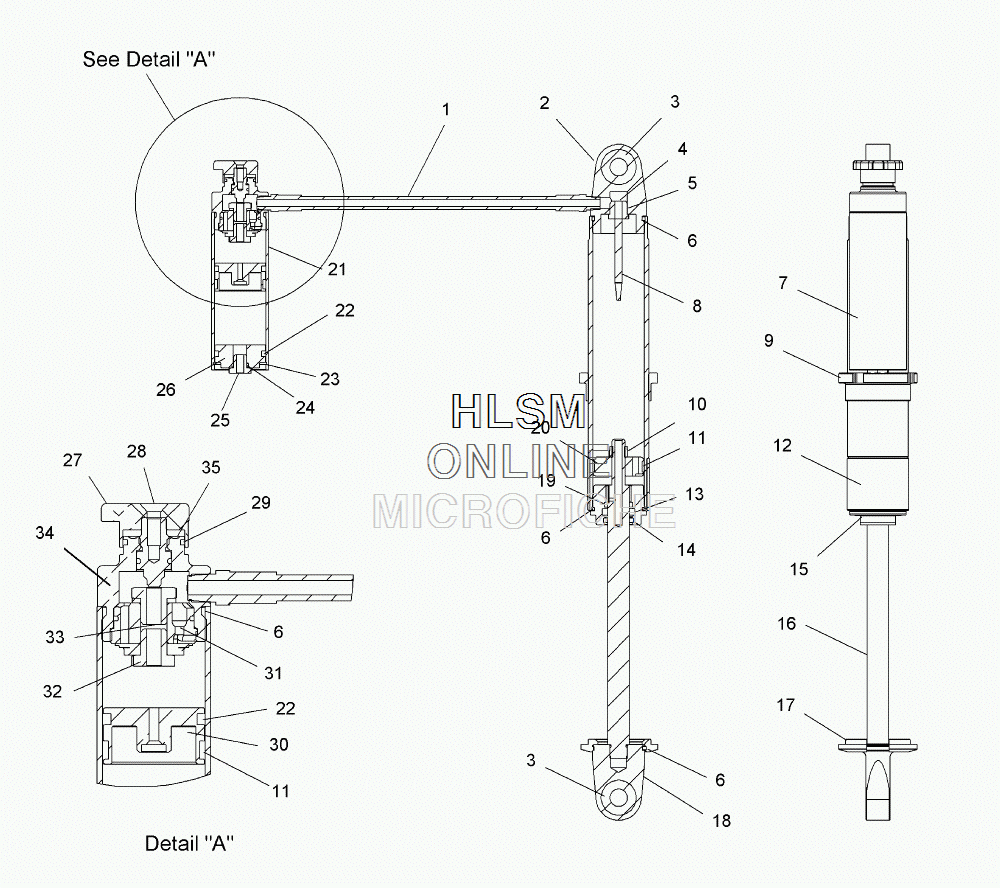

SUSPENSION- SHOCK ASM. IFS- INTERNAL COMPONENTS [7043206] для Polaris IQ TURBO DRAGON (2010) [S10PP7FSL] - 2010 года выпуска
-
№АртикулНазвание
-
11800192 ASM., HOSEASM., HOSE
-
21800098 LOOP, BODYLOOP, BODY
-
31800040 BEARINGBEARING
-
31800041 RING, SNAPRING, SNAP
-
41800299 SCREWSCREW
-
51800301 BOLT, NEEDLEBOLT, NEEDLE
-
61800027 O-RINGO-RING
-
71800304 BODYBODY
-
81800300 NEEDLENEEDLE
-
91800046 RETAINER, SPRINGRETAINER, SPRING
-
101800031 NUT, CRIMPNUT, CRIMP
-
111800297 BAND, WEARBAND, WEAR
-
121800047 WEAR SLEEVEWEAR SLEEVE
-
131800035 U-CUP, SHAFT SEALU-CUP, SHAFT SEAL
-
141800034 WIPER, D-TYPEWIPER, D-TYPE
-
151800131 ASM., SHAFT SEAL HOUSINGASM., SHAFT SEAL HOUSING
-
161800303 SHAFTSHAFT
-
171800116 SPRING, RETAINER RINGSPRING, RETAINER RING
-
181800103 EYELET, SHAFTEYELET, SHAFT
-
191800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
201800130 ASM., PISTON W/BANDASM., PISTON W/BAND
-
211800120 RESERVOIR, BODYRESERVOIR, BODY
-
221800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
231800019 RESERVOIR, SNAP RINGRESERVOIR, SNAP RING
-
241800108 O-RINGO-RING
-
251800107 VALVE, NEEDLEVALVE, NEEDLE
-
251800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
261800106 CAP, ENDCAP, END
-
271800218 KNOBKNOB
-
281800203 SCREWSCREW
-
291800221 O-RING, KNOBO-RING, KNOB
-
301800214 PISTON, RESERVOIR W/BLEED SCREWPISTON, RESERVOIR W/BLEED SCREW
-
301800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
301800211 SCREW, BLEEDSCREW, BLEED
-
311800217 PISTONPISTON
-
321800219 SCREWSCREW
-
331800127 BALL, D-TENTBALL, D-TENT
-
341800220 HOUSING, ADJUSTORHOUSING, ADJUSTOR
-
351800127 BALL, D-TENTBALL, D-TENT
-
351800128 SPRING, D-TENTSPRING, D-TENT
