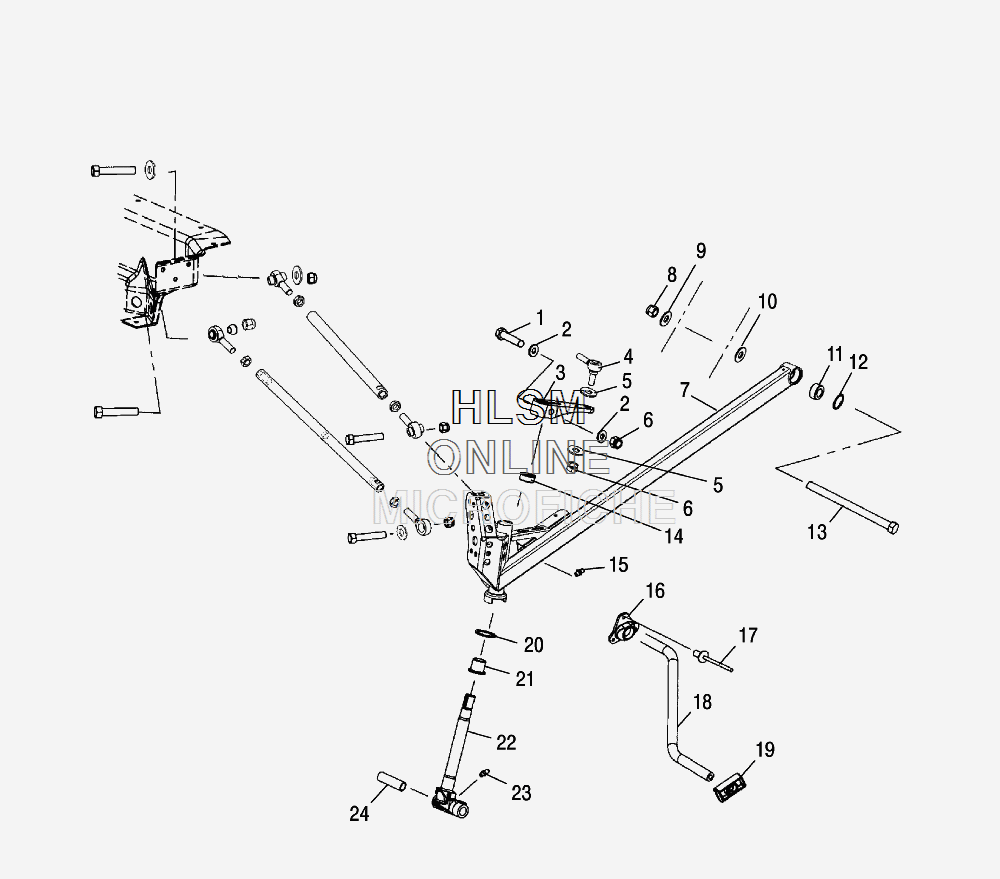

SUSPENSION- RADIUS RODS AND TRAILING ARM 2 для Polaris TRAIL RMK ES (2010) [S10NJ5BSL] - 2010 года выпуска
-
№АртикулНазвание
-
17517583 SCREWSCREW
-
27555832 WASHERWASHER
-
35133060 ARM, STEERINGARM, STEERING
-
57555797 WASHER, FLATWASHER, FLAT
-
67542439 NUT, NYLOKNUT, NYLOK
-
71821260-385 ASM., TRAILING ARM (CLOUD SILVER) LEFT HAND (INCL. 11,12)ASM., TRAILING ARM (CLOUD SILVER) LEFT HAND (INCL. 11,12)
-
71821261-385 ASM., TRAILING ARM (CLOUD SILVER) RIGHT HAND (INCL. 11,12)ASM., TRAILING ARM (CLOUD SILVER) RIGHT HAND (INCL. 11,12)
-
87547066 NUT, NYLOKNUT, NYLOK
-
97555820 WASHER, FLATWASHER, FLAT
-
105132364 CUP, MOUNT, TRAILING ARMCUP, MOUNT, TRAILING ARM
-
117061042 BEARING, SPHERICALBEARING, SPHERICAL
-
127710437 RING, RETAININGRING, RETAINING
-
137512099 SCREWSCREW
-
143573909 BUSHING, FLANGEBUSHING, FLANGE
-
157080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
165433814 BUSHING, TORSION BARBUSHING, TORSION BAR
-
177621452 RIVETRIVET
-
185246871-067 BAR, TORSION (BLACK)BAR, TORSION (BLACK)
-
195412063 SLIDE, SWAY BARSLIDE, SWAY BAR
-
207556509 BUSHINGBUSHING
-
213574208 BUSHING, FLANGEDBUSHING, FLANGED
-
226230225-067 SHAFT, W/STEERING STOP, SPINDLE (BLACK)SHAFT, W/STEERING STOP, SPINDLE (BLACK)
-
237080306 FITTING, LUBRICATION, W/BALLFITTING, LUBRICATION, W/BALL
-
245010158 BUSHING, PIVOTBUSHING, PIVOT
