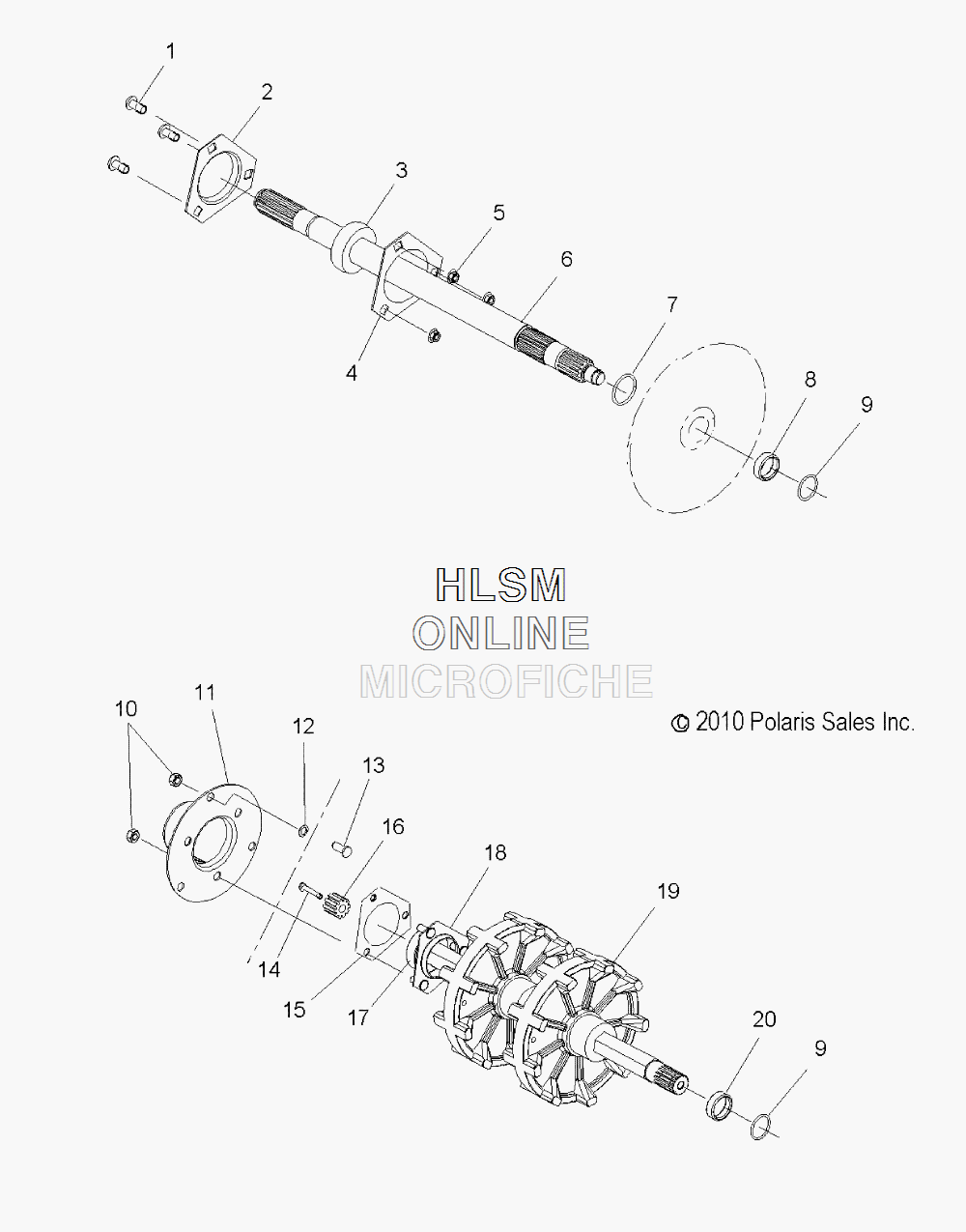

JACKSHAFT ASSEMBLY для Polaris 600 IQ SHIFT INTL [S11PB6HEA] - 2011 года выпуска
-
№АртикулНазвание
-
17512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
25247680 FLANGETTEFLANGETTE
-
33514617 BEARINGBEARING
-
45222751 FLANGETTEFLANGETTE
-
57542343 NUT, FLANGENUT, FLANGE
-
61332336 ASM., JACKSHAFT (INCL. 3,7)ASM., JACKSHAFT (INCL. 3,7)
-
77710422 RING, RETAININGRING, RETAINING
-
85135231 SLEEVE, SEALSLEEVE, SEAL
-
95410613 O-RINGO-RING
-
107542324 NUT, NYLOKNUT, NYLOK
-
115246960 HOUSING, DRIVE PICKUPHOUSING, DRIVE PICKUP
-
127547030 PALNUTPALNUT
-
137518049 BOLT, CARRIAGEBOLT, CARRIAGE
-
147518425 BOLT, FLANGEBOLT, FLANGE
-
155811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
165136619 WHEEL, PICKUP, SPEEDOWHEEL, PICKUP, SPEEDO
-
173514448 BEARINGBEARING
-
181014299 ASM., FLANGETTE W/SCREWSASM., FLANGETTE W/SCREWS
-
191590474 ASM., DRIVESHAFTASM., DRIVESHAFT
-
205020588 SLEEVE, SEALSLEEVE, SEAL
