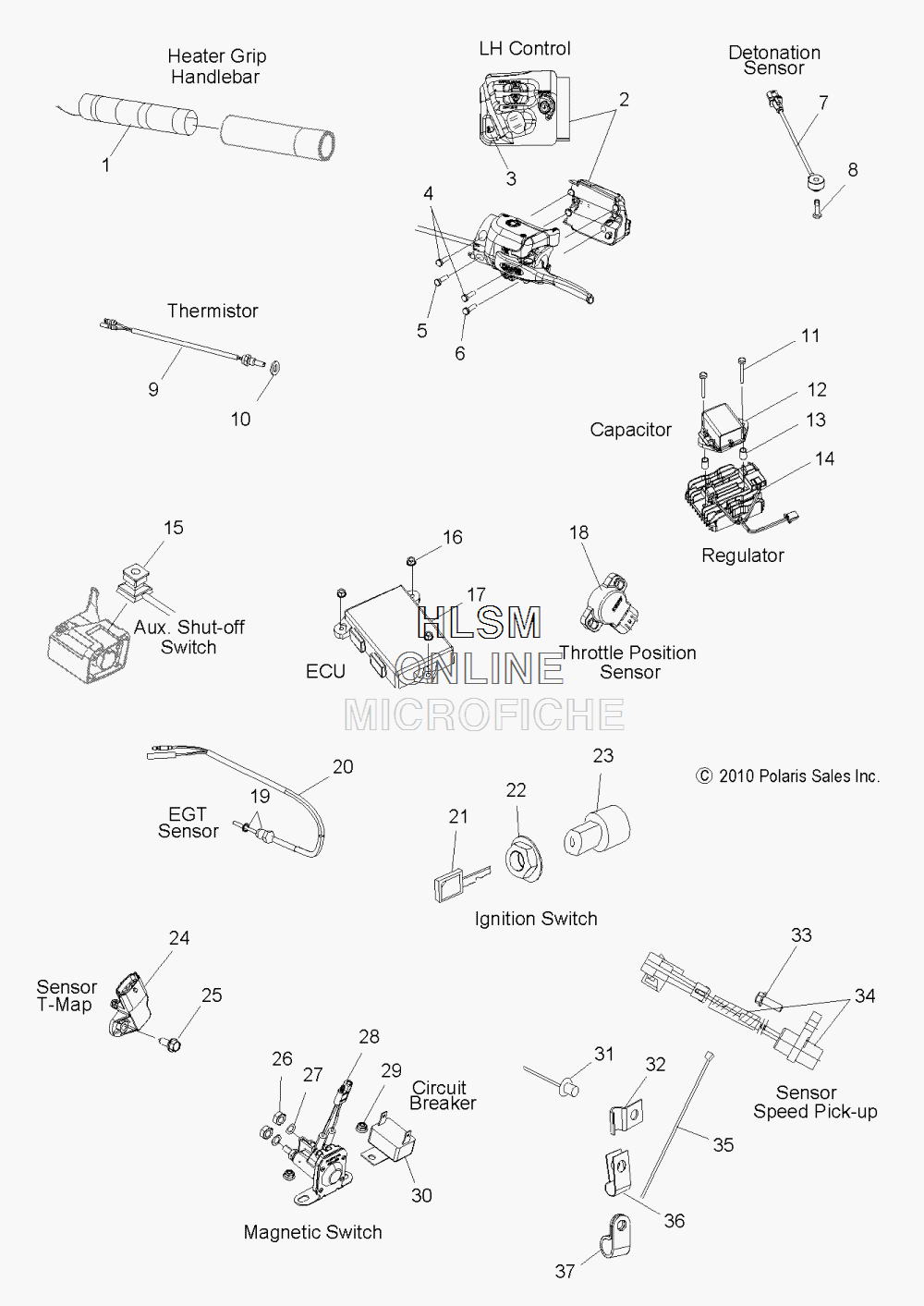

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 SWITCHBACK ES [S11PS6HSL] - 2011 года выпуска
-
№АртикулНазвание
-
12410777 HEATER, GRIP, LO/MED/HI, SHORTHEATER, GRIP, LO/MED/HI, SHORT
-
22010290 ASM., LEFT HAND CONTROL (INCL. 3)ASM., LEFT HAND CONTROL (INCL. 3)
-
35433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREW, .75SCREW, .75
-
57512078 SCREW, 1.12SCREW, 1.12
-
67517566 SCREW, 1.50SCREW, 1.50
-
72410369 SENSOR, DETONATIONSENSOR, DETONATION
-
87517262 SCREWSCREW
-
94010868 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
107556357 WASHERWASHER
-
117518157 SCREWSCREW
-
124011114 CAPACITORCAPACITOR
-
135010339 SPACERSPACER
-
144012930 REGULATOR, V7, SDI, AAAREGULATOR, V7, SDI, AAA
-
154012270 SWITCH, AUXILIARY SHUT-OFFSWITCH, AUXILIARY SHUT-OFF
-
167547274 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
174011518 ECUECU
-
183131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
195335351 WASHER, EGT SENSORWASHER, EGT SENSOR
-
202410983 ASM., EGT SENSOR W/WASHER (INCL. WASHER)ASM., EGT SENSOR W/WASHER (INCL. WASHER)
-
215410611 CAP W/KEY (SEE NOTE)CAP W/KEY (SEE NOTE)
-
227547035 NUT, IGNITIONNUT, IGNITION
-
232200358 KIT, IGNITION, SWITCHKIT, IGNITION, SWITCH
-
242410422 SENSOR, T-MAPSENSOR, T-MAP
-
257512095 SCREWSCREW
-
267542105 NUT, HEXNUT, HEX
-
277552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
284012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
297518287 NUTNUT
-
302434009 BREAKER, CIRCUIT, 12 AMPBREAKER, CIRCUIT, 12 AMP
-
317661637 RIVETRIVET
-
327080963 J-CLIPJ-CLIP
-
337512232 SCREWSCREW
-
342410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
348360056-25 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
-
357080138 CABLE TIECABLE TIE
-
367080367 CLAMP, CABLECLAMP, CABLE
-
377080960 CLAMP, CABLE, NYLONCLAMP, CABLE, NYLON
