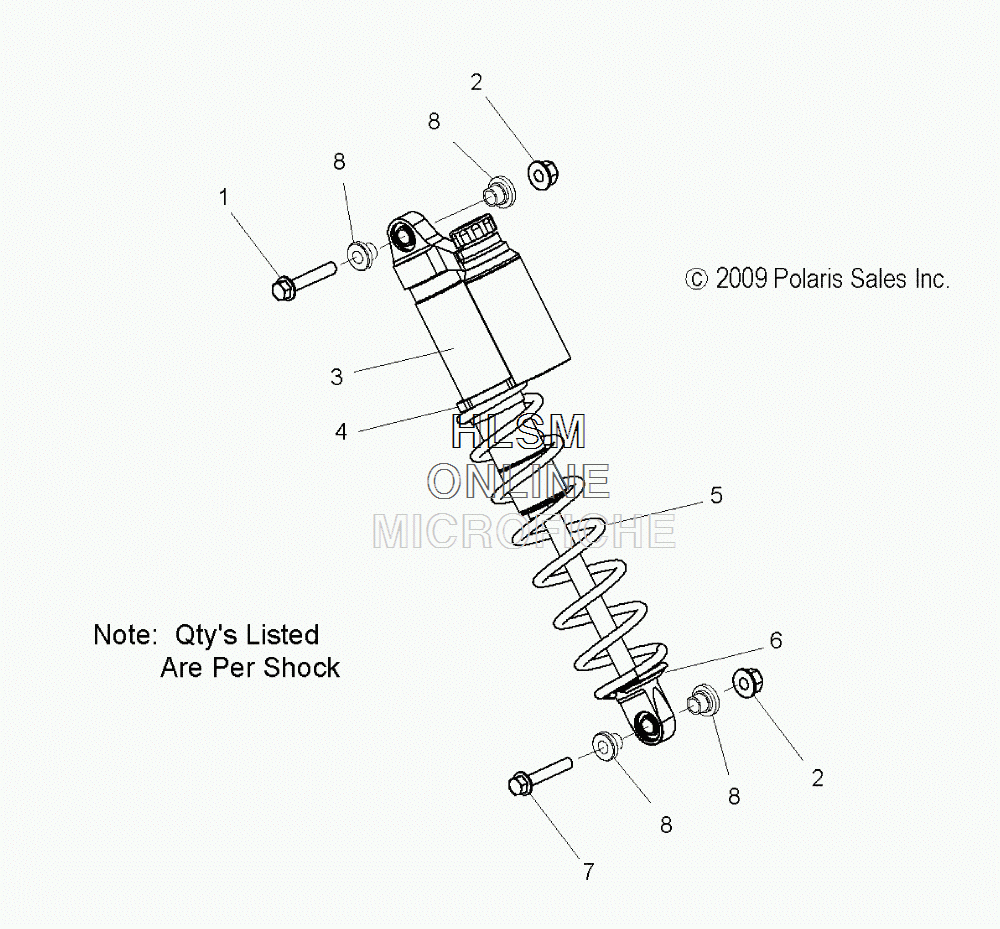

SUSPENSION - IFS SHOCK для Polaris 600 SWITCHBACK [S11PS6HSA] - 2011 года выпуска
-
№АртикулНазвание
-
17518554 SCREWSCREW
-
27547180 NUT, FLANGE, NYLONNUT, FLANGE, NYLON
-
37043534 SHOCK, IFS, WALKER EVANSSHOCK, IFS, WALKER EVANS
-
41800046 RETAINER, SPRINGRETAINER, SPRING
-
57043460-293 SPRING, COMPRESSION, IFS, 100#, REDSPRING, COMPRESSION, IFS, 100#, RED
-
57043460-133 SPRING, COMPRESSION, IFS, 100#, WHITESPRING, COMPRESSION, IFS, 100#, WHITE
-
61800116 SPRING, RETAINING RINGSPRING, RETAINING RING
-
77518278 SCREWSCREW
-
85135396 SPACERSPACER
