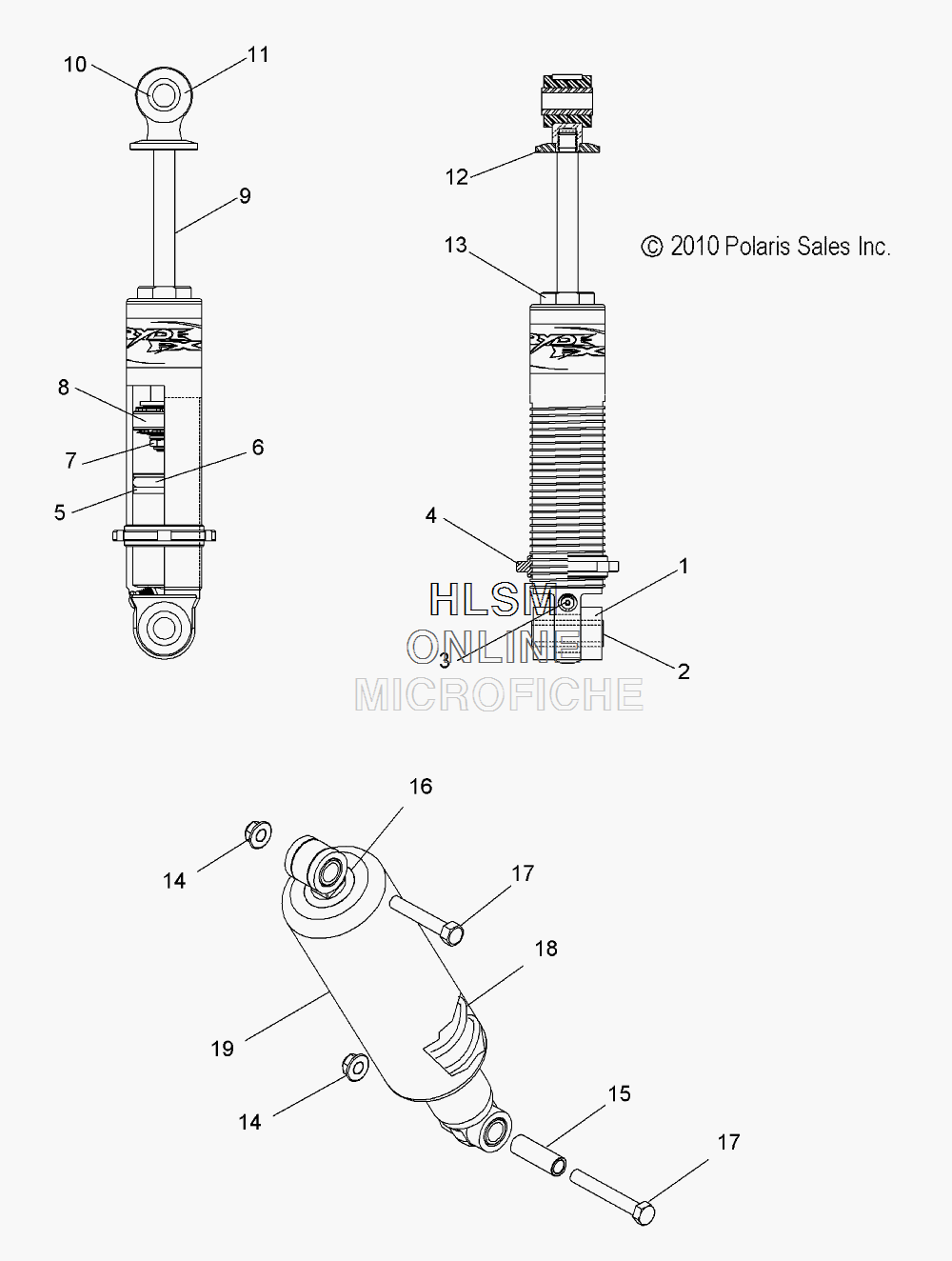

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 WIDETRAK IQ INTL [S11PU6MEL] - 2011 года выпуска`
-
№АртикулНазвание
-
-7043676 SHOCK, FRONT TRACKSHOCK, FRONT TRACK
-
11700073 BUSHINGBUSHING
-
21700069 SLEEVESLEEVE
-
31700184 VALVE, PRESSUREVALVE, PRESSURE
-
31700055 SCREW, VALVESCREW, VALVE
-
41700237 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
51700233 IFPIFP
-
61700048 O-RINGO-RING
-
71700057 NUTNUT
-
81700103 PISTONPISTON
-
81700031 WEAR BANDWEAR BAND
-
81700077 WASHER, TOP-OUTWASHER, TOP-OUT
-
81700078 WASHER, BACK-UPWASHER, BACK-UP
-
91700182 SHAFTSHAFT
-
101700157 SLEEVESLEEVE
-
111700036 BUSHINGBUSHING
-
121700011 MOUNT, UPPERMOUNT, UPPER
-
131700156 ASM., CYLINDER HEADASM., CYLINDER HEAD
-
147547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
155333905 SLEEVESLEEVE
-
165630580 RETAINER, SLOTTED SPRINGRETAINER, SLOTTED SPRING
-
177515415 SCREWSCREW
-
187041677-067 SPRING, COMPRESSION, BLACK, 140 X 9.00 X .312SPRING, COMPRESSION, BLACK, 140 X 9.00 X .312
-
195433503 SHIELD, SPRINGSHIELD, SPRING
