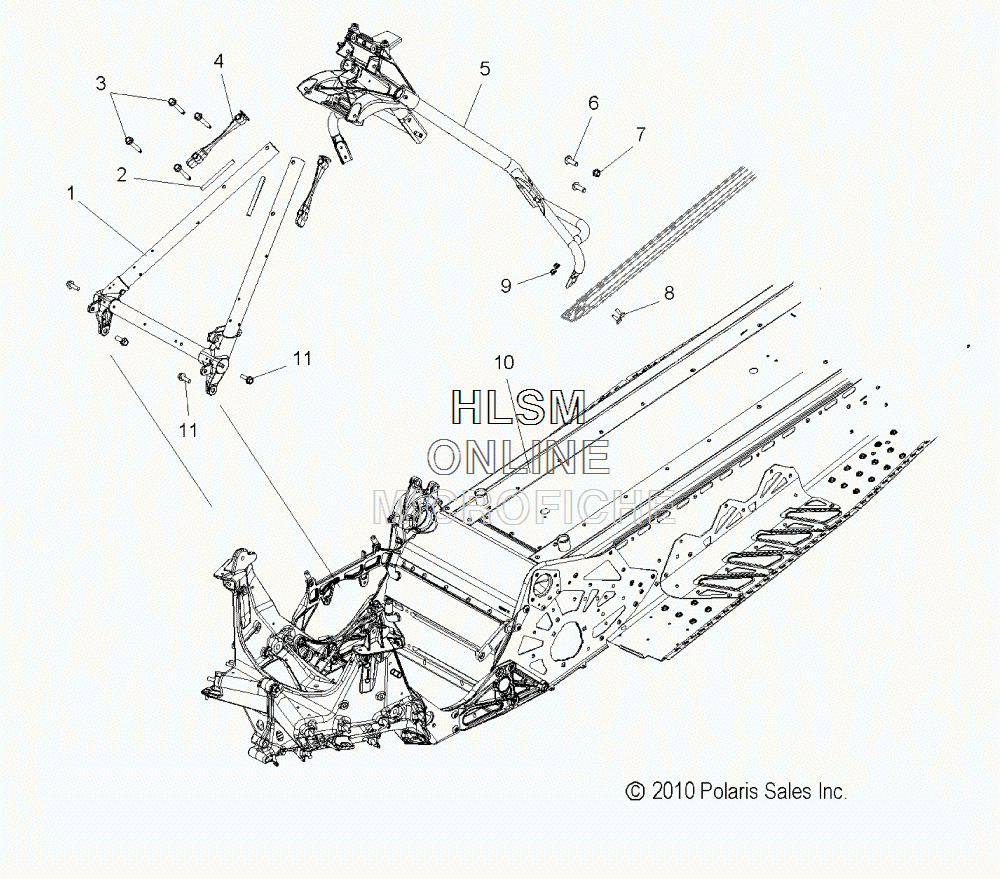

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 SWITCHBACK ASSAULT (2.0) (ORANGE) [S11CW8GST] - 2011 года выпуска
-
№АртикулНазвание
-
11017744 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
25521697-350 SEAL, BULB (BULK SVC)SEAL, BULB (BULK SVC)
-
37519245 SCREWSCREW
-
45632200 SPACER, TUBE CASTSPACER, TUBE CAST
-
51017701 ASM., FRAME, TUBULAR, REARASM., FRAME, TUBULAR, REAR
-
67518906 SCREWSCREW
-
77547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
87519249 BOLT, CARRIAGEBOLT, CARRIAGE
-
97547487 NUTNUT
-
102204468-1241 KIT, 800 144 CHASSIS, MATTE BLACKKIT, 800 144 CHASSIS, MATTE BLACK
-
117519243 SCREWSCREW
