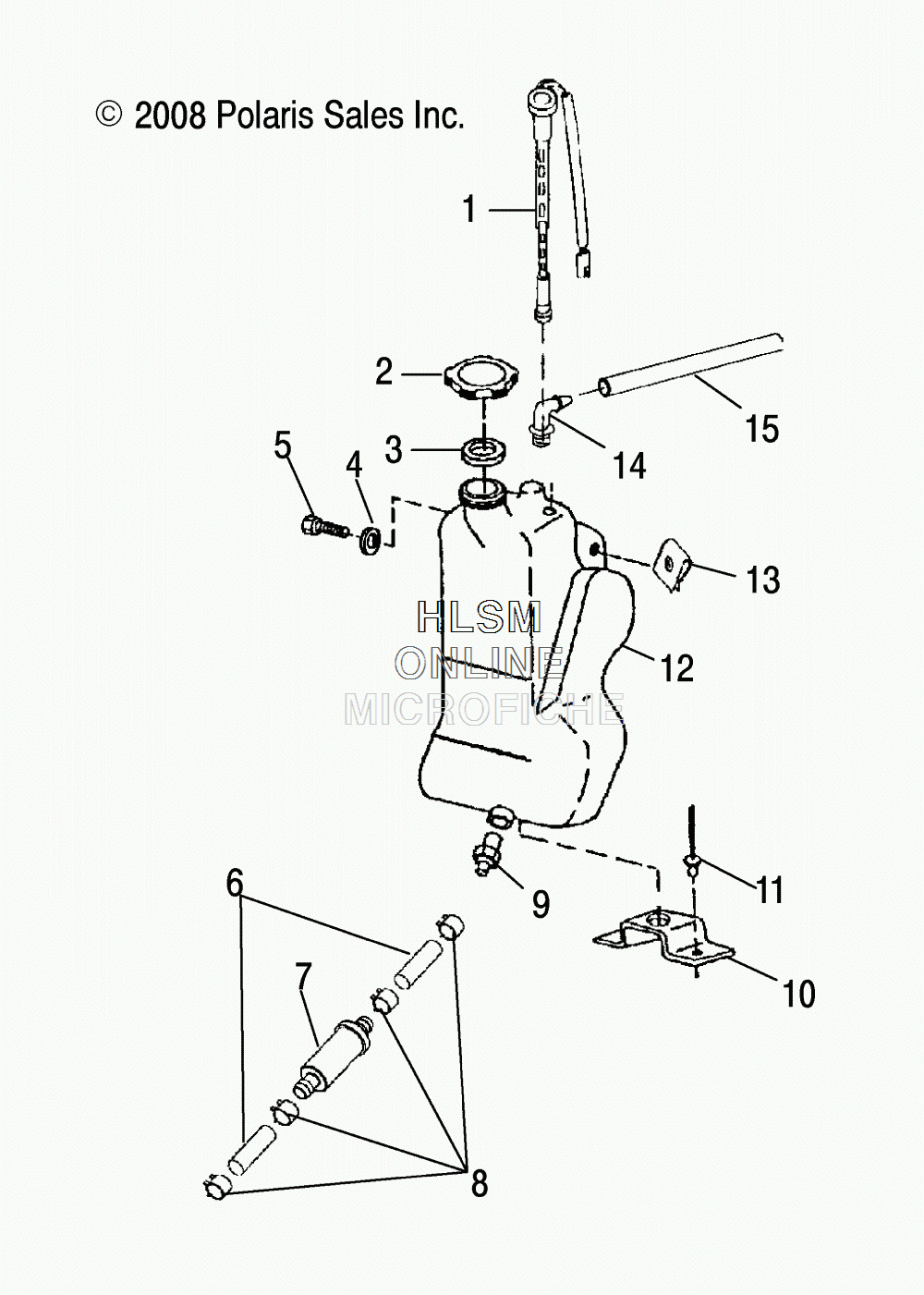

OIL TANK ASSEMBLY для Polaris WIDETRAK LX INTL [S11SU4BEL] - 2011 года выпуска
-
№АртикулНазвание
-
14040040 SENSOR W/CONNECTORS, OIL LEVELSENSOR W/CONNECTORS, OIL LEVEL
-
25430779 CAP, OIL TANKCAP, OIL TANK
-
35810141 GASKET, OIL CAPGASKET, OIL CAP
-
47558302 WASHERWASHER
-
57512276 BOLT, LOCKBOLT, LOCK
-
68450003-1525 LINE, FUELLINE, FUEL
-
72530009 FILTERFILTER
-
87080307 CLAMP, HOSE, GREEN, LARGECLAMP, HOSE, GREEN, LARGE
-
97052042 FITTING, OUTLET, SINGLEFITTING, OUTLET, SINGLE
-
105241334 BRACKET, OIL TANK, COINEDBRACKET, OIL TANK, COINED
-
117661637 RIVETRIVET
-
125430997 OIL TANK W/SENDING UNIT HOLEOIL TANK W/SENDING UNIT HOLE
-
137670096 NUT, CHIMNEYNUT, CHIMNEY
-
147052095 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
158450061-600 LINE, VENTLINE, VENT
