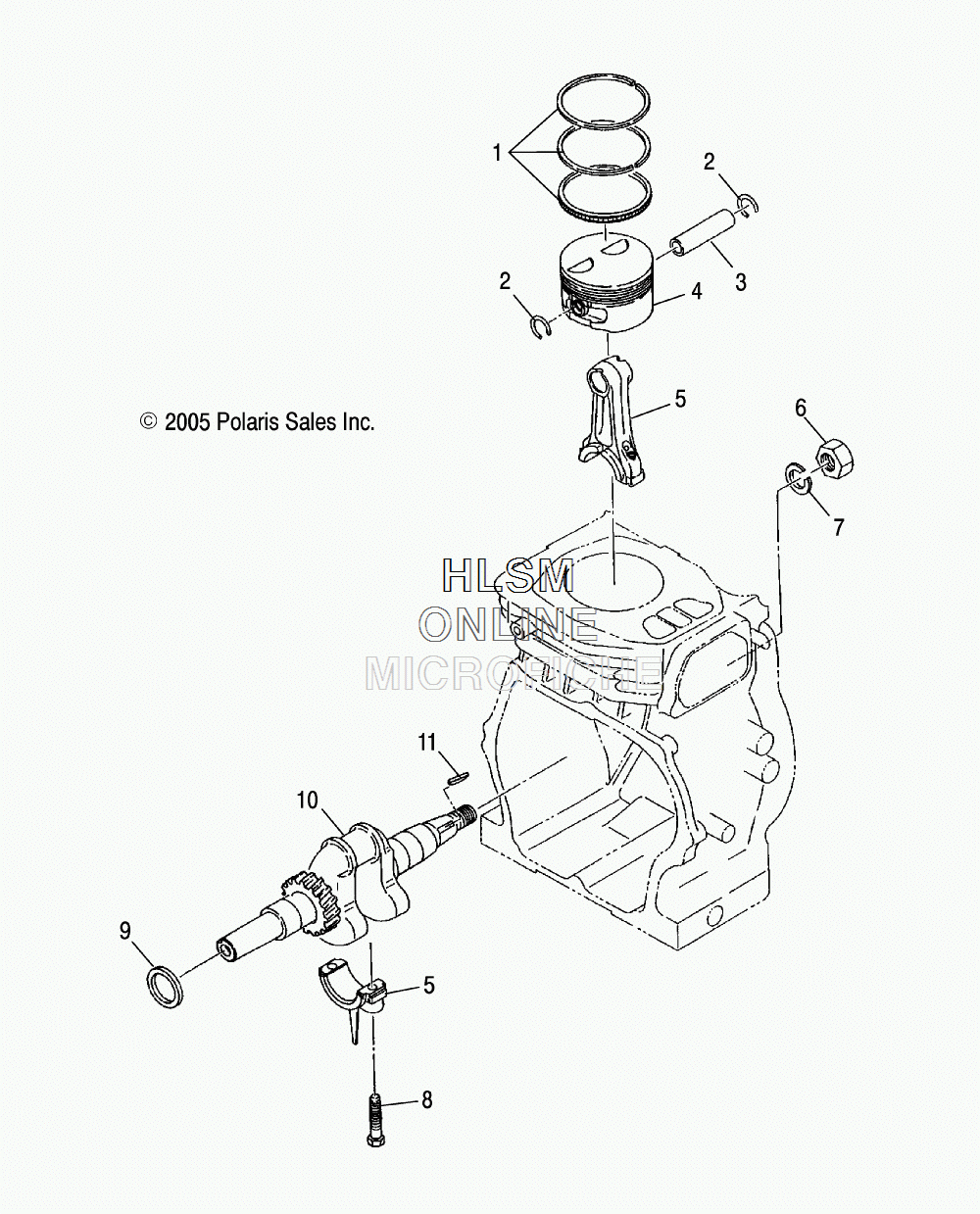

CRANKSHAFT ASSY. W/ PISTON для Polaris 120 PRO [S12WB1AEA] - 2012 года выпуска
-
№АртикулНазвание
-
13088203 SET, RING, PISTON, STANDARDSET, RING, PISTON, STANDARD
-
13088204 SET, RING, PISTON, 0.25 O/SSET, RING, PISTON, 0.25 O/S
-
13088205 SET, RING, PISTON, 0.50 O/SSET, RING, PISTON, 0.50 O/S
-
23086553 CLIPCLIP
-
33086546 PIN, PISTONPIN, PISTON
-
43086969 SET, PISTON, STANDARD (INCL. 2)SET, PISTON, STANDARD (INCL. 2)
-
43086970 SET, PISTON, 0.25 O/S (INCL. 2)SET, PISTON, 0.25 O/S (INCL. 2)
-
43086971 SET, PISTON, 0.50 O/S (INCL. 2)SET, PISTON, 0.50 O/S (INCL. 2)
-
53086544 ASM., CONNECTING ROD (INCL. 8)ASM., CONNECTING ROD (INCL. 8)
-
63087974 NUT, FLANGENUT, FLANGE
-
73086540 WASHER, SPRINGWASHER, SPRING
-
83086545 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
93086537 SPACER, 0.6SPACER, 0.6
-
93086538 SPACER, 0.8SPACER, 0.8
-
93086539 SPACER, 1.0SPACER, 1.0
-
103086949 ASM., CRANKSHAFTASM., CRANKSHAFT
-
113086536 KEY, WOODRUFFKEY, WOODRUFF
