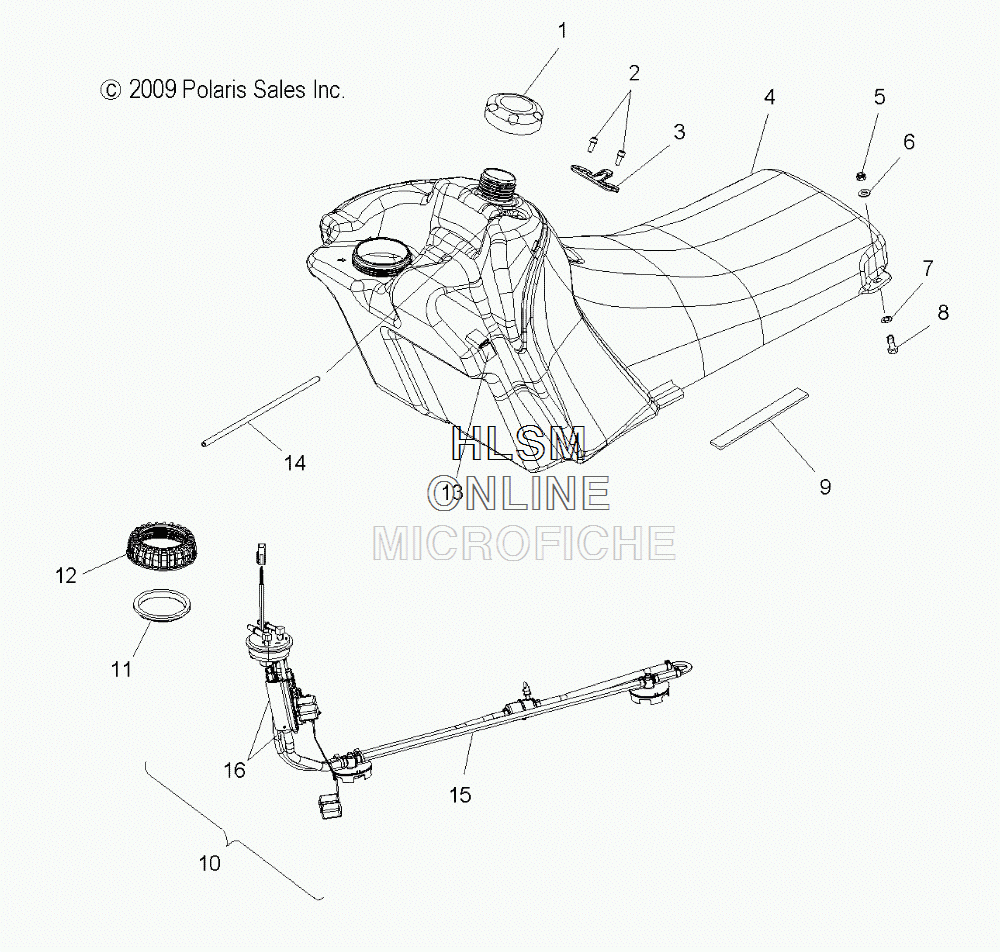

FUEL TANK для Polaris 600 IQ LXT INTL [S12PT6HEL] - 2012 года выпуска
-
№АртикулНазвание
-
15435534 CAP, FUEL TANKCAP, FUEL TANK
-
27515136 SCREWSCREW
-
35247431 BRACKET, SEAT MOUNTBRACKET, SEAT MOUNT
-
42520796 ASM., FUEL TANK (ALSO ORDER GASKET #11)ASM., FUEL TANK (ALSO ORDER GASKET #11)
-
57542122 NUT, NYLOKNUT, NYLOK
-
67555960 WASHER, FLATWASHER, FLAT
-
77670154 RETAINER, BOLTRETAINER, BOLT
-
87515203 BOLT, CARRIAGEBOLT, CARRIAGE
-
95810290 PAD, BATTERYPAD, BATTERY
-
102520870 ASM., PUMP/FLANGE, STD (ALSO ORDER GASKET, #11) (INCL. PICK-UPASM., PUMP/FLANGE, STD (ALSO ORDER GASKET, #11) (INCL. PICK-UP
-
102520868 ASM., FUEL PUMP (ALSO ORDER GASKET, #11 AND CLAMPS, #16)ASM., FUEL PUMP (ALSO ORDER GASKET, #11 AND CLAMPS, #16)
-
105437046 FLOAT, FUEL SENDERFLOAT, FUEL SENDER
-
115413063 GASKET, PFAGASKET, PFA
-
125436628 NUT, PFANUT, PFA
-
135813100 PAD, RUBBERPAD, RUBBER
-
148450126-72 LINE, VENTLINE, VENT
-
152520869 ASM., PUMP, PICK-UP (INCL. GASKET, #11)ASM., PUMP, PICK-UP (INCL. GASKET, #11)
-
167081502 CLAMP, OETIKER, 15.3CLAMP, OETIKER, 15.3
-
167081503 CLAMP, OETIKER, 14.5, BLUECLAMP, OETIKER, 14.5, BLUE
