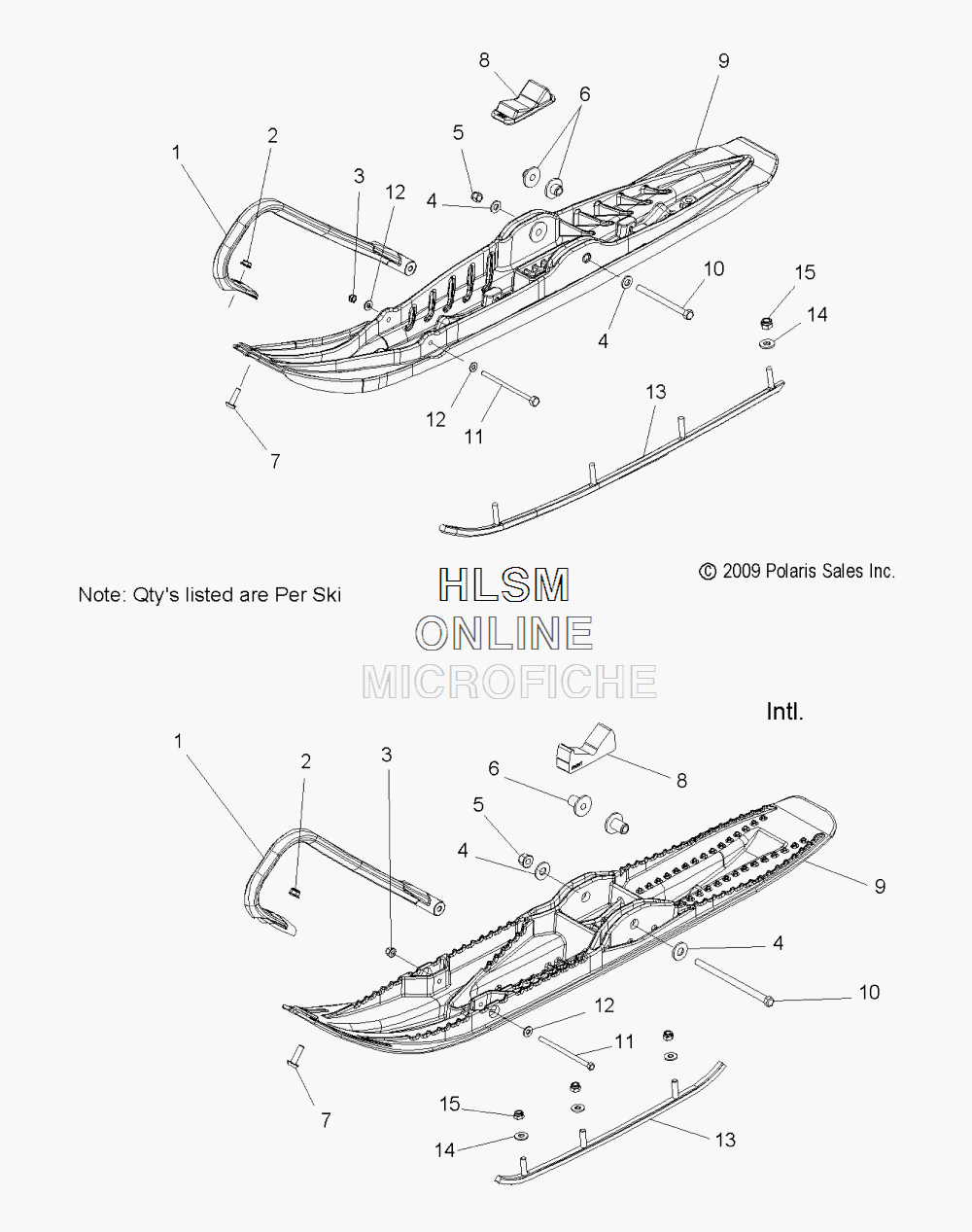

SKI ASSEMBLY для Polaris 600 IQ SHIFT INTL [S12PB6HEA] - 2012 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI, BLACKTOE, PLASTIC SKI, BLACK
-
27542343 NUT, FLANGE (INT'L)NUT, FLANGE (INT'L)
-
37512153 NUT, NYLOK, FLANGE (INT'L)NUT, NYLOK, FLANGE (INT'L)
-
47556130 WASHERWASHER
-
57547263 NUT, NYLOKNUT, NYLOK
-
65134797 BUSHINGBUSHING
-
77518070 SCREW (INT'L)SCREW (INT'L)
-
85412794 STOP, SKI RUBBER (INT'L)STOP, SKI RUBBER (INT'L)
-
91822889-070 ASM., SKI, WIDE, SVC, BLACK (INCL. 6) (INT'L)ASM., SKI, WIDE, SVC, BLACK (INCL. 6) (INT'L)
-
107518481 SCREWSCREW
-
117518655 SCREW (INT'L)SCREW (INT'L)
-
127558301 WASHER, FLAT (QTY. 1 FOR INT'L)WASHER, FLAT (QTY. 1 FOR INT'L)
-
132875723 KIT, SKAG, 3 INCH, 60 DEGREE (PAIR) (INT'L)KIT, SKAG, 3 INCH, 60 DEGREE (PAIR) (INT'L)
-
147555843 WASHER, FLAT (QTY. 3 FOR INT'L)WASHER, FLAT (QTY. 3 FOR INT'L)
-
157542324 NUT, NYLOK (QTY. 3 FOR INT'L)NUT, NYLOK (QTY. 3 FOR INT'L)
