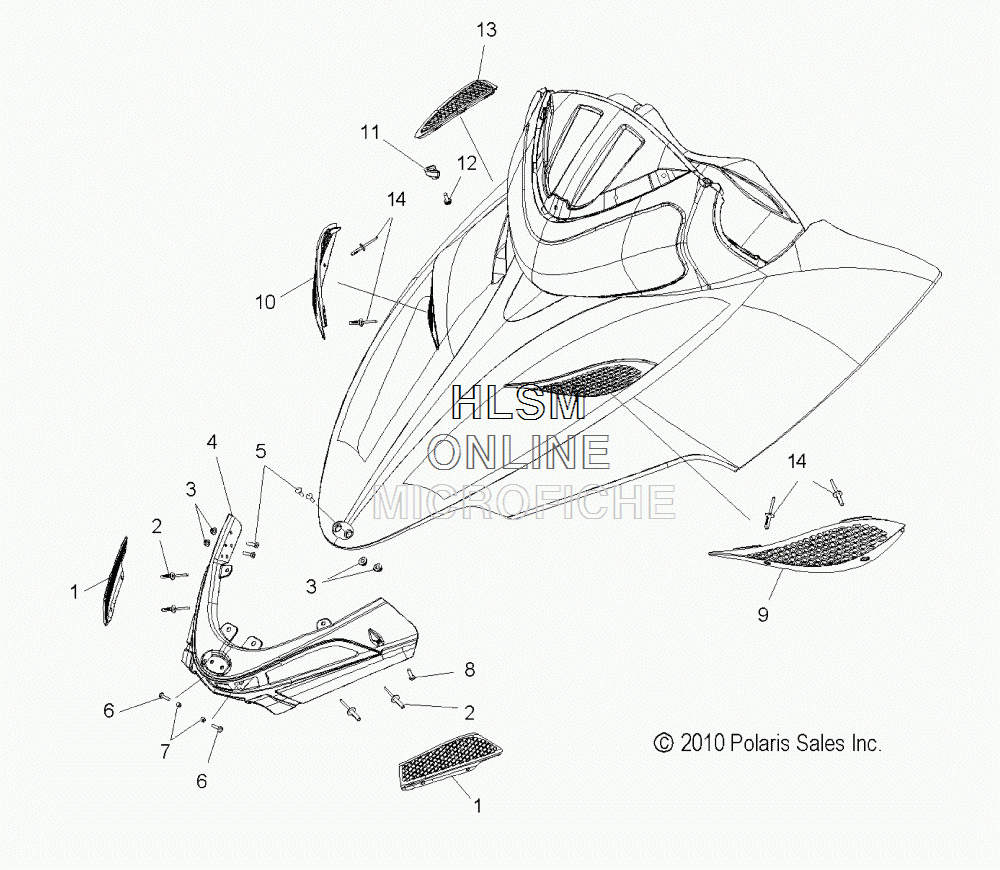

HOOD - SCREENS - HINGES для Polaris 600 IQ SHIFT [S12PB6HSA] - 2012 года выпуска
-
№АртикулНазвание
-
15437655-070 SCREEN, HINGE, LEFT HAND (BLACK)SCREEN, HINGE, LEFT HAND (BLACK)
-
15437656-070 SCREEN, HINGE, RIGHT HAND (BLACK)SCREEN, HINGE, RIGHT HAND (BLACK)
-
27081040 RIVET, PLASTICRIVET, PLASTIC
-
37518287 NUT, FLANGENUT, FLANGE
-
45437441-070 HINGE, GRILL, HOOD (BLACK)HINGE, GRILL, HOOD (BLACK)
-
57518281 SCREW 10-24X5/8 TORXSCREW 10-24X5/8 TORX
-
67518912 SCREW 1/4-20X3SCREW 1/4-20X3
-
75333796 SPACERSPACER
-
87518238 SCREW, 10X5/8-HI/LOSCREW, 10X5/8-HI/LO
-
95435846-070 SCREEN, HOOD, BLACK, LEFT HANDSCREEN, HOOD, BLACK, LEFT HAND
-
105435847-070 SCREEN, HOOD, BLACK, RIGHT HANDSCREEN, HOOD, BLACK, RIGHT HAND
-
115438184 SPACER, HOOD SCREENSPACER, HOOD SCREEN
-
127527815 SCREW, TAPPINGSCREW, TAPPING
-
135438143-070 SCREEN, HOOD TOP (BLACK)SCREEN, HOOD TOP (BLACK)
-
147661922 RIVET, PLASTICRIVET, PLASTIC
