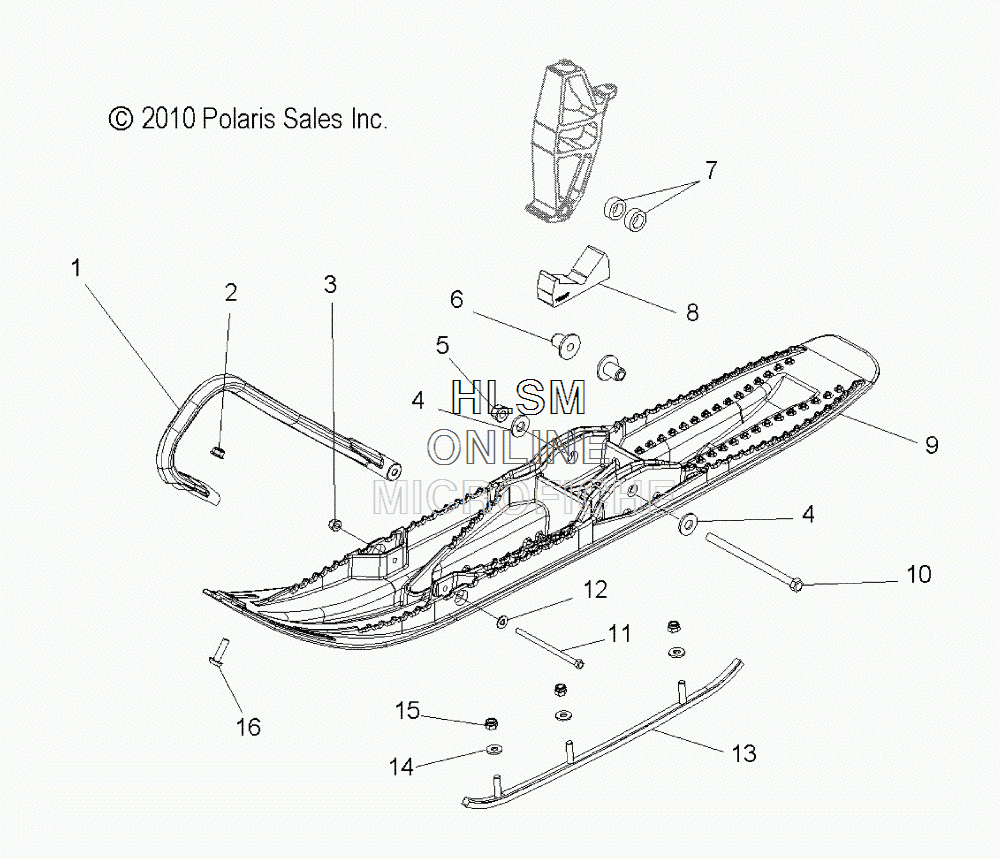

SKI ASSEMBLY для Polaris 600 PRO RMK 155 [S12CG6GSA] - 2012 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
27542343 NUT, FLANGENUT, FLANGE
-
37542153 NUT, NYLOKNUT, NYLOK
-
47556130 WASHERWASHER
-
57547423 NUT, NYLOKNUT, NYLOK
-
65136908 BUSHING, PLASTIC SKI, METRICBUSHING, PLASTIC SKI, METRIC
-
75134885 SPACERSPACER
-
85412794 STOP, SKI RUBBERSTOP, SKI RUBBER
-
91823660-070 ASM., SKI, WIDE (BLACK) (INCL. 6)ASM., SKI, WIDE (BLACK) (INCL. 6)
-
107519098 SCREWSCREW
-
117518655 SCREWSCREW
-
127558301 WASHER, FLATWASHER, FLAT
-
132875723 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)
-
147555843 WASHER, FLATWASHER, FLAT
-
157542324 NUT, NYLOKNUT, NYLOK
-
167518070 SCREWSCREW
