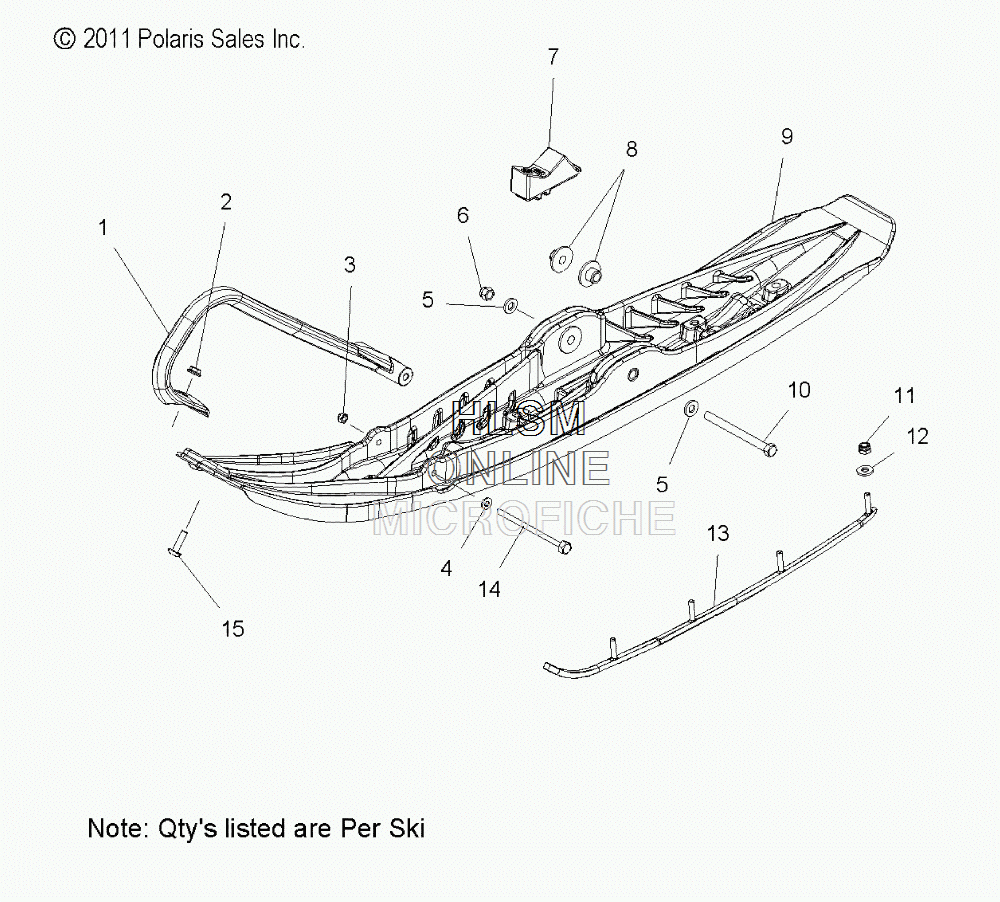

SKI ASSEMBLY для Polaris 600 RUSH ES [S12BF6NSL] - 2012 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
27542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
37542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
47558301 WASHER, FLAT (10)WASHER, FLAT (10)
-
57556130 WASHER, BELLE .406X1.25X.125 (10)WASHER, BELLE .406X1.25X.125 (10)
-
67547423 NUT, FLANGE NYLOK M10X1.5NUT, FLANGE NYLOK M10X1.5
-
75414133 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85136908 BUSHING, PLASTIC SKIBUSHING, PLASTIC SKI
-
91823814-070 ASM., SKI, SVC (BLACK)ASM., SKI, SVC (BLACK)
-
107519098 SCREW M10X1.5X155SCREW M10X1.5X155
-
117542324 NUT, NYLOK (10)NUT, NYLOK (10)
-
127555843 WASHER, FLATWASHER, FLAT
-
132878820 KIT, SKAG, 4 INCH, 60 DEGREE X 4 STUD (PAIR)KIT, SKAG, 4 INCH, 60 DEGREE X 4 STUD (PAIR)
-
147518047 BOLTBOLT
-
157516317 SCREW 5/16-18X1.00SCREW 5/16-18X1.00
