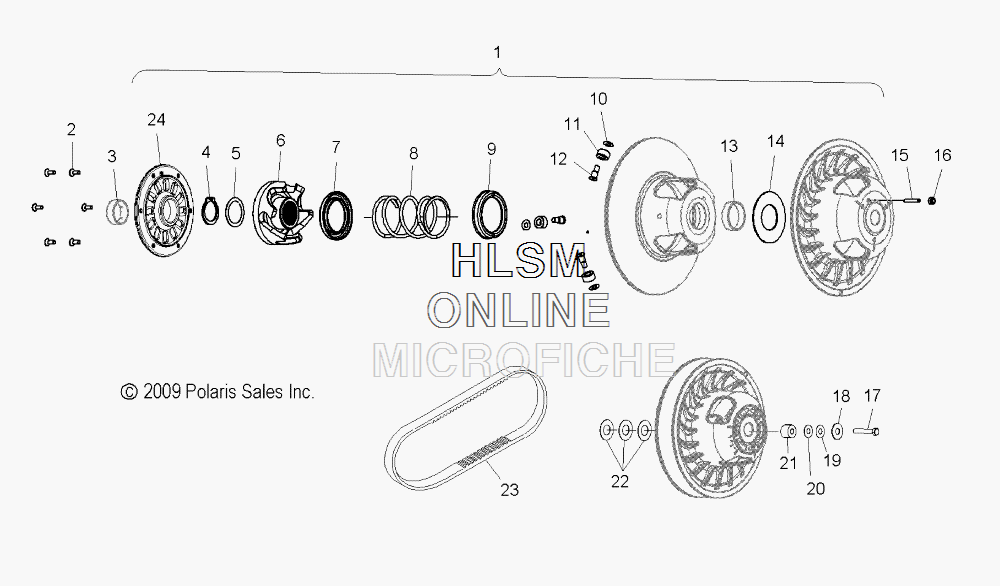

CLUTCH - SECONDARY для Polaris 600 SWITCHBACK ADVENTURE [S12BA6NSL] - 2012 года выпуска
-
№АртикулНазвание
-
11322827 ASM., DRIVEN CLUTCH, BASICASM., DRIVEN CLUTCH, BASIC
-
27518309 SCREWSCREW
-
47714804 RING, RETAININGRING, RETAINING
-
57555898 WASHERWASHER
-
65137176 RAMP, DRIVEN, 58/42, .45RAMP, DRIVEN, 58/42, .45
-
75437851 SPACER, CLUTCH, P2SPACER, CLUTCH, P2
-
87043515 SPRING, CLUTCH, 130-180 TAB, P2SPRING, CLUTCH, 130-180 TAB, P2
-
95252908 CUP, SPRING, MOVEABLECUP, SPRING, MOVEABLE
-
107556145 SHIMSHIM
-
115631828 ROLLER, DRIVENROLLER, DRIVEN
-
125134268 PIN, MOVEABLE, ROLLERPIN, MOVEABLE, ROLLER
-
147556307 WASHER, FLATWASHER, FLAT
-
157519085 SCREWSCREW
-
167542122 NUT, NYLOKNUT, NYLOK
-
177519137 SCREWSCREW
-
187555846 WASHER, FLATWASHER, FLAT
-
197555832 WASHERWASHER
-
207555806 WASHER, FLATWASHER, FLAT
-
215136969 SPACER, CLUTCH, P2, METRICSPACER, CLUTCH, P2, METRIC
-
227555864 WASHERWASHER
-
227555917 WASHERWASHER
-
227556509 BUSHINGBUSHING
-
233211122 BELT, DRIVEBELT, DRIVE
