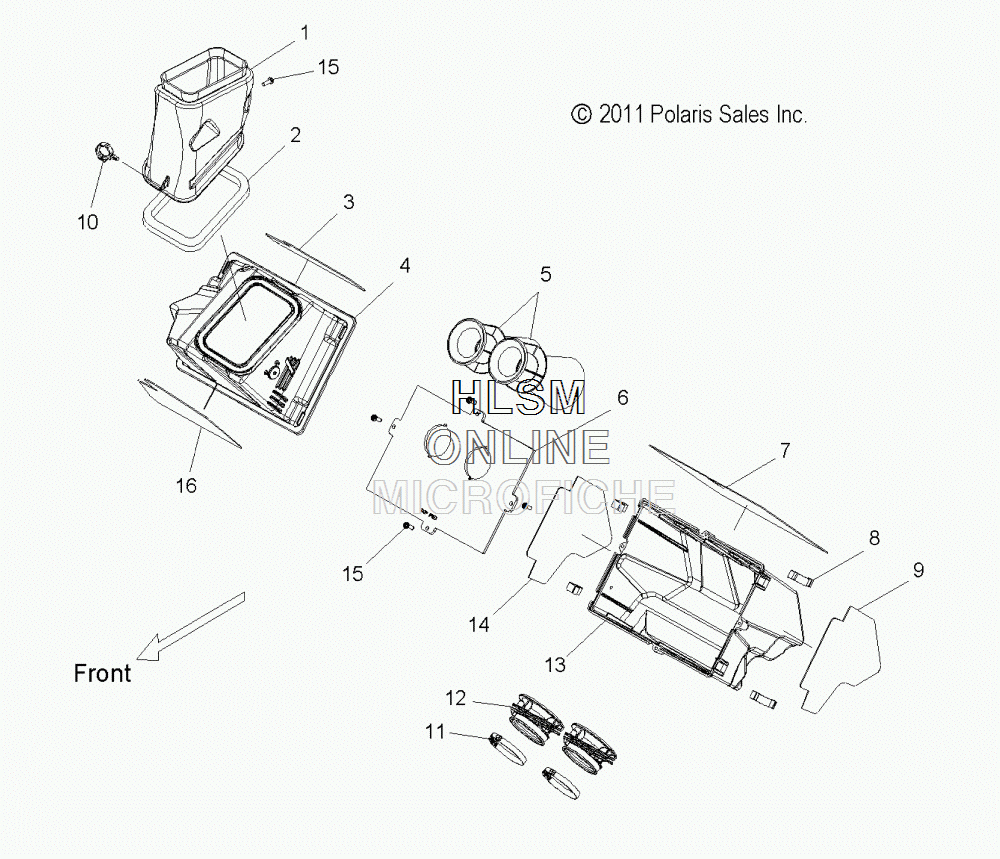

AIR INTAKE SYSTEM для Polaris 600 SWITCHBACK PRO-R (ALL OPTIONS) [S12BS6NAS/NSB/NSC/NSL/NSM/NSP/NEL] - 2012 года выпуска
-
№АртикулНазвание
-
11204266 ASM., TUBE, INTAKEASM., TUBE, INTAKE
-
17518577 SCREWSCREW
-
25813504 FOAM, AIRBOX SEALFOAM, AIRBOX SEAL
-
35813546 BARRIER, AIRBOX, REAR, TOPBARRIER, AIRBOX, REAR, TOP
-
45438731 AIRBOX, UPPERAIRBOX, UPPER
-
55438303 TUBE, INTAKETUBE, INTAKE
-
65813641 PLATE, INTAKEPLATE, INTAKE
-
75813544 BARRIER, AIRBOX, BACKBARRIER, AIRBOX, BACK
-
85242044 CLIP, AIRBOXCLIP, AIRBOX
-
95813547 BARRIER, AIRBOX, LEFT HANDBARRIER, AIRBOX, LEFT HAND
-
104020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
117080909 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
125413741 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
131204440 ASM., AIR SILENCER (INCL. 8,12)ASM., AIR SILENCER (INCL. 8,12)
-
145813655 BARRIER, AIRBOX, RIGHT HANDBARRIER, AIRBOX, RIGHT HAND
-
157518577 SCREWSCREW
-
165813545 BARRIER, AIRBOX, FRONT, TOPBARRIER, AIRBOX, FRONT, TOP
