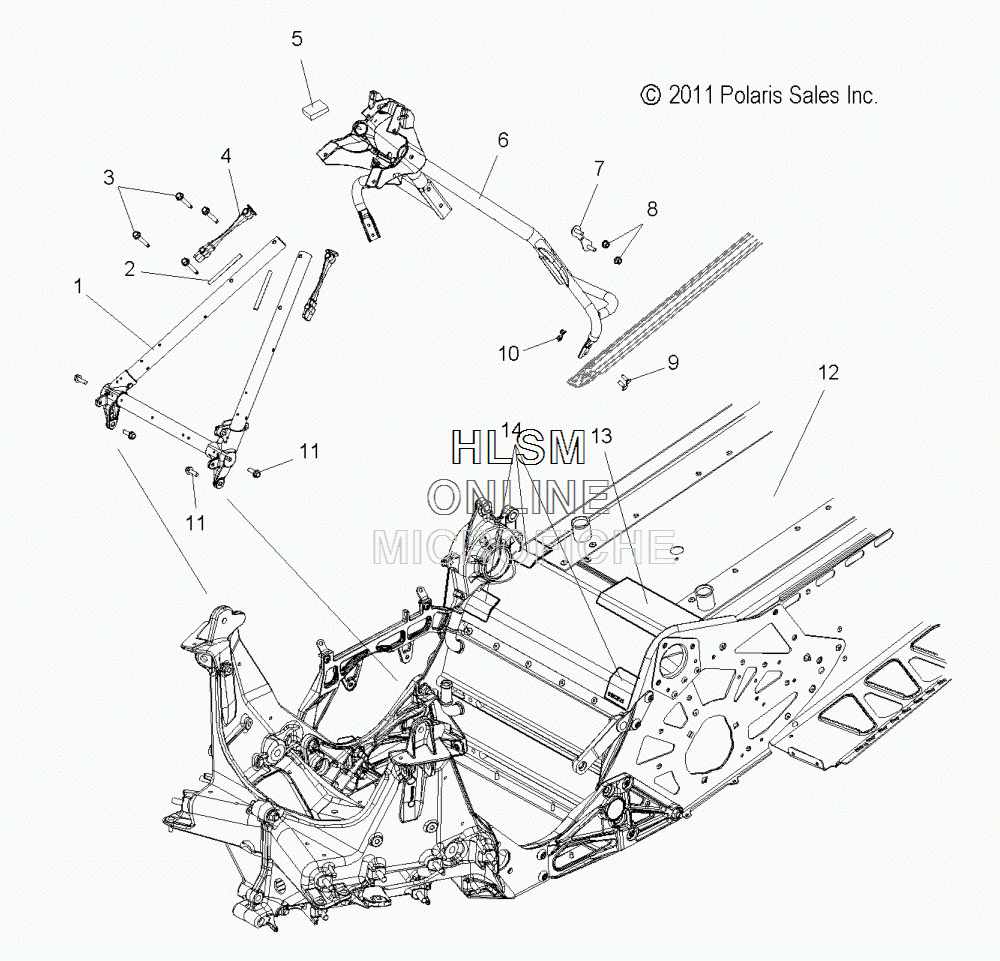

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 RMK 155 [S12CM8GSA] - 2012 года выпуска`
-
№АртикулНазвание
-
11016954 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
25521697-350 SEAL, BULB (BULK SVC)SEAL, BULB (BULK SVC)
-
37519245 SCREWSCREW
-
45632200 SPACER, TUBE CASTSPACER, TUBE CAST
-
55813178 PAD, RUBBERPAD, RUBBER
-
61017855 ASM., FRAME, TUBULAR, REARASM., FRAME, TUBULAR, REAR
-
71016959 ASM., STUD PLATEASM., STUD PLATE
-
87547332 NUTNUT
-
97519338 SCREWSCREW
-
107547487 NUTNUT
-
117519243 SCREWSCREW
-
122204662-309 KIT, MY 12 155 STD CHASSIS, W/CC (INCL. BULKHEAD)KIT, MY 12 155 STD CHASSIS, W/CC (INCL. BULKHEAD)
-
121018345-309 ASM., TUNNEL, 155 SERVICE, NATURALASM., TUNNEL, 155 SERVICE, NATURAL
-
135813662 PADPAD
-
145813593 PADPAD
