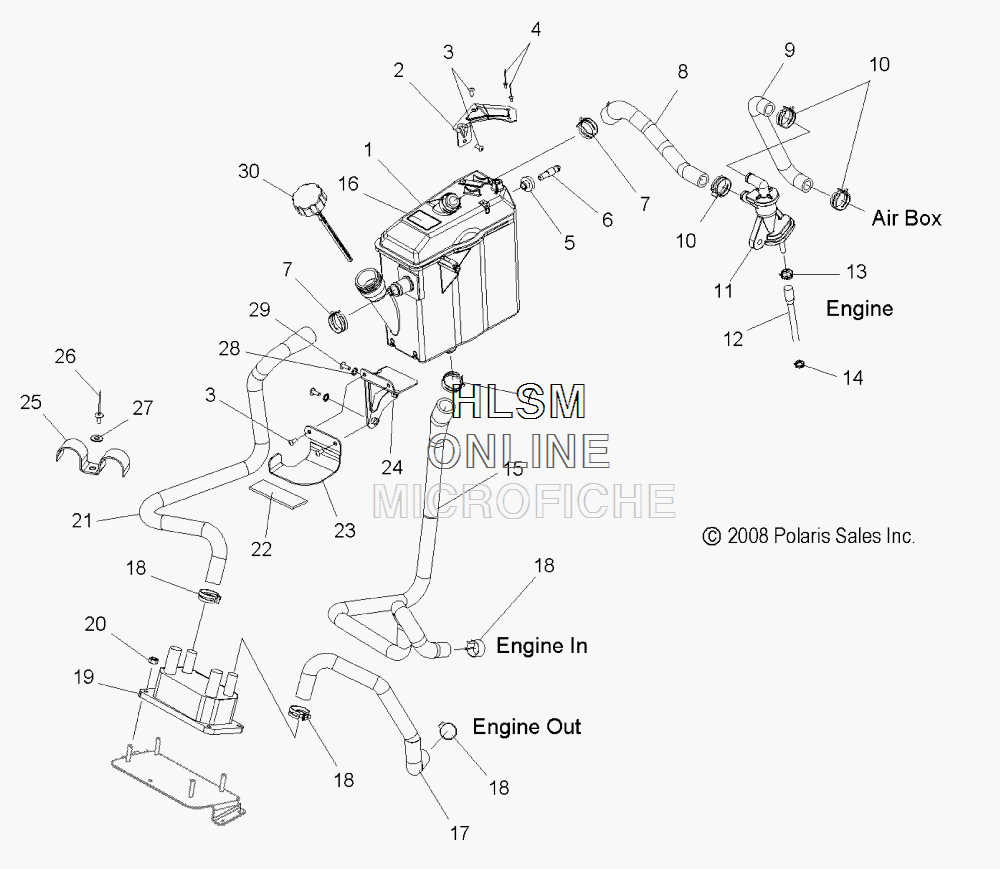

OIL COOLING SYSTEM для Polaris TURBO IQ LXT [S12PT7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
11261357 OIL TANKOIL TANK
-
25247452 BRACKET, OIL BOTTLE, UPPERBRACKET, OIL BOTTLE, UPPER
-
37515178 SCREWSCREW
-
47661637 RIVETRIVET
-
57052362 GROMMETGROMMET
-
67052360 VALVE, OVER PRESSUREVALVE, OVER PRESSURE
-
77080842 CLAMP, SPRING BANDCLAMP, SPRING BAND
-
85412583 HOSE, OIL BOTTLE VENTHOSE, OIL BOTTLE VENT
-
95412721 LINE, OIL CENTRIFUGE/PLENUMLINE, OIL CENTRIFUGE/PLENUM
-
107080841 CLAMP, SPRING BANDCLAMP, SPRING BAND
-
112520541 SEPARATOR, OIL/AIRSEPARATOR, OIL/AIR
-
125412909 LINE, OIL, VENT RETURNLINE, OIL, VENT RETURN
-
137080650 CLAMP, HOSECLAMP, HOSE
-
147080307 CLAMP, HOSECLAMP, HOSE
-
155412697 LINE, OIL SUPPLYLINE, OIL SUPPLY
-
167173565 DECAL, OIL CHECK PROCEDUREDECAL, OIL CHECK PROCEDURE
-
175412696 HOSE, ENGINE/OIL COOLERHOSE, ENGINE/OIL COOLER
-
187081415 CLAMP, CONSTANT TENSIONCLAMP, CONSTANT TENSION
-
191240330 COOLER, OILCOOLER, OIL
-
207542122 NUT, NYLOKNUT, NYLOK
-
215413538 HOSE, OIL, COOLER TANKHOSE, OIL, COOLER TANK
-
225810290 PAD, BATTERYPAD, BATTERY
-
235252795 BRACKET, RESERVOIR, LOWERBRACKET, RESERVOIR, LOWER
-
241015745 BRACKET, OIL BOTTLE, LOWERBRACKET, OIL BOTTLE, LOWER
-
257080898 CLAMP, DOUBLE HOSECLAMP, DOUBLE HOSE
-
267621467 RIVETRIVET
-
277556044 WASHERWASHER
-
287552604 WASHER, EXTENDED TOOTHWASHER, EXTENDED TOOTH
-
297515199 SCREWSCREW
-
301240185 CAP, DIPSTICK, OILCAP, DIPSTICK, OIL
