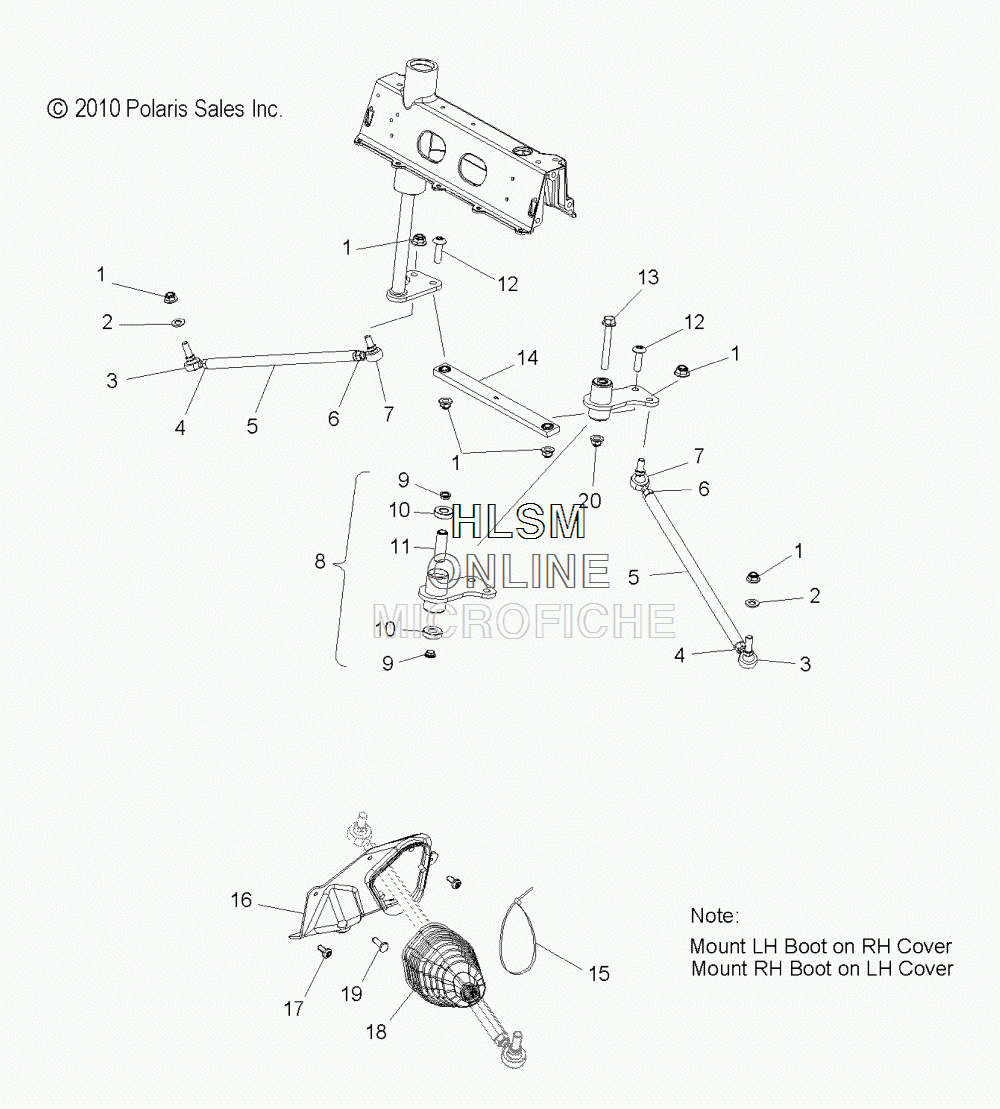

STEERING - LOWER W/TIE RODS для Polaris TURBO IQ [S12PP7FSL] - 2012 года выпуска`
-
№АртикулНазвание
-
17547263 NUT, FLANGENUT, FLANGE
-
27555806 WASHER, FLATWASHER, FLAT
-
37061164 ROD END, RIGHT HANDROD END, RIGHT HAND
-
47542401 NUTNUT
-
55334667 TIE RODTIE ROD
-
67542424 NUT, LEFT HANDNUT, LEFT HAND
-
77061163 ROD END, LEFT HANDROD END, LEFT HAND
-
81821419 ASM., IDLER ARMASM., IDLER ARM
-
95132106 BUSHING, REDUCERBUSHING, REDUCER
-
103514320 BEARING, BALLBEARING, BALL
-
115135452 SPACER, TUBESPACER, TUBE
-
127518372 SCREWSCREW
-
137518277 SCREWSCREW
-
147061152 LINK, FIXEDLINK, FIXED
-
157080761 STRAP, PANDUIT, 14 INCHSTRAP, PANDUIT, 14 INCH
-
165436574 COVER, TIE ROD BOOT, LEFT HANDCOVER, TIE ROD BOOT, LEFT HAND
-
165436575 COVER, TIE ROD BOOT, RIGHT HANDCOVER, TIE ROD BOOT, RIGHT HAND
-
177518176 SCREWSCREW
-
185413793 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
185413794 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
197670125 FASTENER, CLIP, PUSH-ONFASTENER, CLIP, PUSH-ON
-
207547180 NUT, FLANGENUT, FLANGE
Все узлы модели:
- AIR INTAKE SYSTEM
- ALTERNATOR
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BUMPER - FRONT W/ NOSEPAN
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CAM CHAIN W/ TENSIONERS
- CHASSIS - FRONT
- CHASSIS ASSEMBLY W/FOOTRESTS
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CONSOLE
- COOLANT RAIL
- COOLING SYSTEM
- CRANKSHAFT AND BALANCE SHAFT
- CYLINDER ASSY W/ CRANKCASE
- DECALS
- DRIVE GEAR W/ PULLEY
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - SWITCHES AND CONTROLS
- ELECTRICAL - WIRE HARNESS
- ENGINE ASSEMBLY
- ENGINE MOUNTING - LEFT
- ENGINE MOUNTING - RIGHT AND FRONT
- EXHAUST SYSTEM
- FENDERS
- FUEL RAIL
- FUEL TANK
- GAUGE - MULTI FUNCTION
- GEARCASE ASSEMBLY
- GEARCASE COVER W/DIPSTICK
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- IDLE AIR CONTROL ASSEMBLY
- IGNITION COILS W/SPARK PLUGS
- INTER COOLER
- JACKSHAFT ASSEMBLY
- OIL COOLING SYSTEM
- OIL FILTER
- OIL PUMP ASSEMBLY
- OIL SUMP
- PISTON W/ BEARING
- REFERENCE HOSES
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTING MOTOR
- STEERING - DRAG LINK
- • STEERING - LOWER W/TIE RODS
- STEERING POST - HOOP
- STEERING POST ASSEMBLY - ADJUSTABLE
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK ASM. IFS
- SUSPENSION - SHOCK ASM. IFS - INTERNALS
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/FUEL LINES
- THROTTLE BODY W/ INTAKE MANIFOLD
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- TURBO
- VALVE COVER
- VALVE TRAIN
- VALVES
- WATER PUMP
- WINDSHIELD
- WIRING HARNESS
