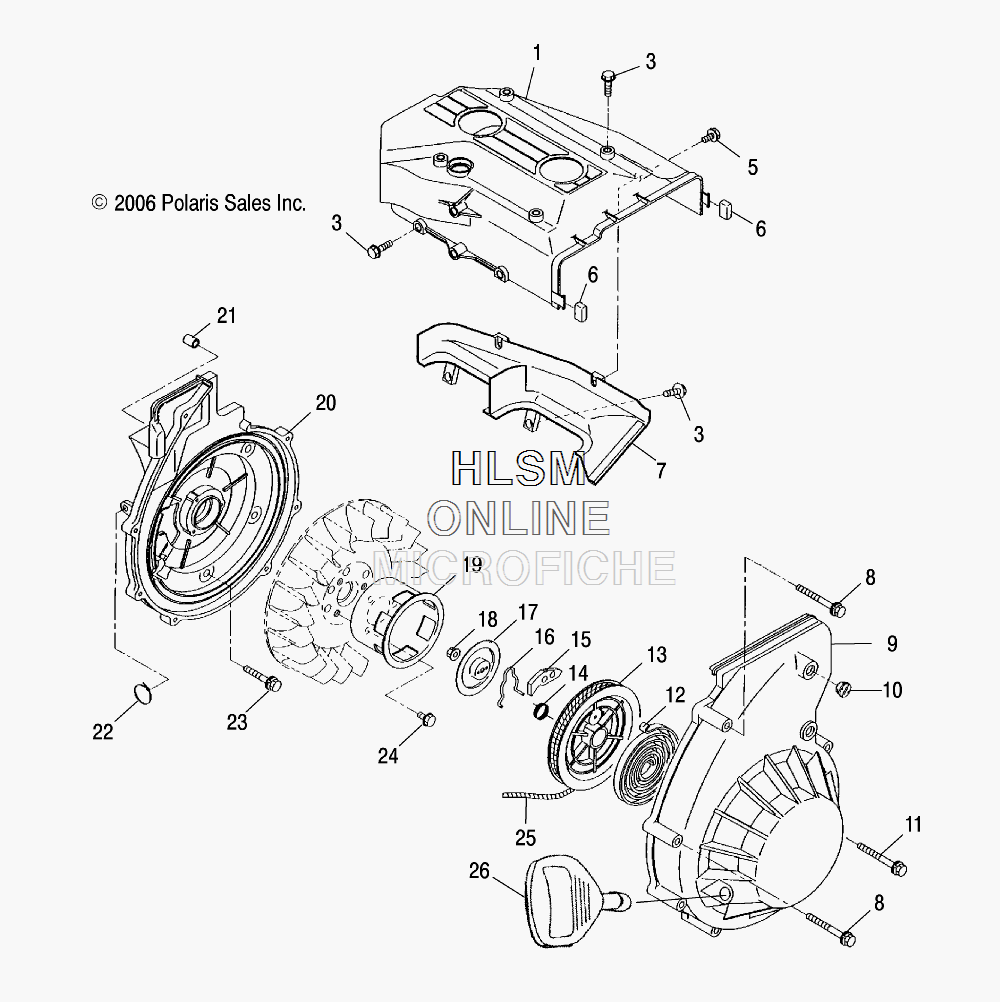

RECOIL STARTER W/BLOWER HOUSING для Polaris 550 SHIFT 136 ES [S13PR5BSL] - 2013 года выпуска
-
№АртикулНазвание
-
13086991 ASM., BAFFLE, CYLINDER, 1ASM., BAFFLE, CYLINDER, 1
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
53085693 BOLT, FLANGEBOLT, FLANGE
-
63085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
73085691 CYLINDER, BAFFLE 2CYLINDER, BAFFLE 2
-
83083550 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
93090179 ASM., STARTER, RECOIL (INCL. 12-18,25)ASM., STARTER, RECOIL (INCL. 12-18,25)
-
93090194 STARTER, CASE COMPLETESTARTER, CASE COMPLETE
-
103086792 PLUG, RUBBERPLUG, RUBBER
-
113082030 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
123083376 SPRING, SPIRALSPRING, SPIRAL
-
133083377 ASM., REELASM., REEL
-
143083463 SPRING, RETURNSPRING, RETURN
-
153087207 RATCHETRATCHET
-
163083379 SPRING, FRICTIONSPRING, FRICTION
-
173090195 PLATE, FRICTIONPLATE, FRICTION
-
183083381 NUT, FLANGENUT, FLANGE
-
193087181 PULLEY, STARTINGPULLEY, STARTING
-
203087020 HOUSING, BLOWERHOUSING, BLOWER
-
213084857 PIN, STRAIGHTPIN, STRAIGHT
-
223084823 BAND, WIREBAND, WIRE
-
233084225 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
243085688 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
252870621 ROPE, STARTER (100 FT.)ROPE, STARTER (100 FT.)
-
265431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
