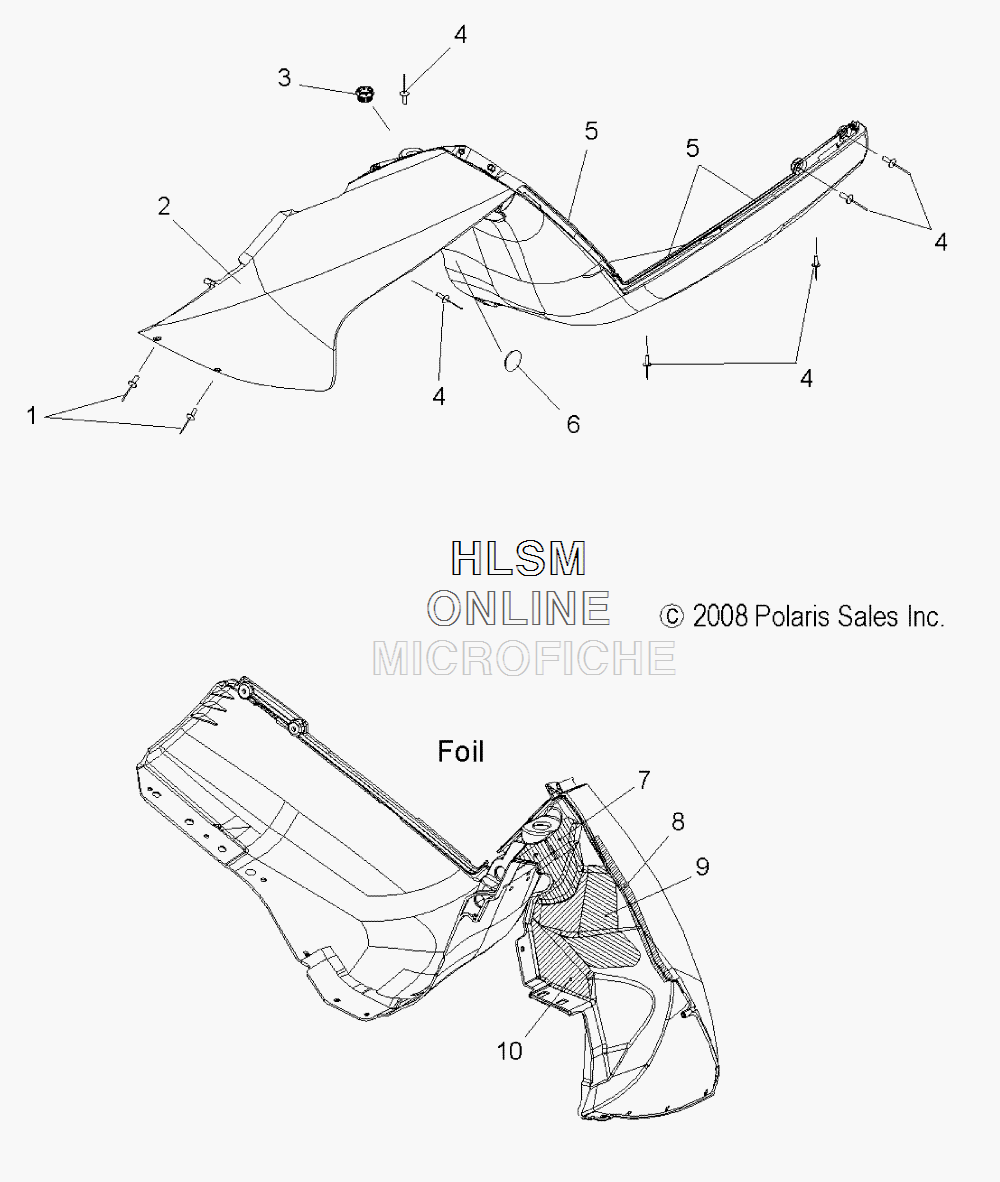

FENDER - L.H. для Polaris 600 IQ LXT INTL [S13PT6HEL] - 2013 года выпуска
-
№АртикулНазвание
-
17661859 RIVETRIVET
-
22633256-070 ASM., FENDER, LEFT HAND (BLACK) (INCL. FOAM AND FOIL)ASM., FENDER, LEFT HAND (BLACK) (INCL. FOAM AND FOIL)
-
37081210 PLUG, TUBEPLUG, TUBE
-
47621467 RIVETRIVET
-
55521697-350 SEAL, BULB 350 CMSEAL, BULB 350 CM
-
65411009 PLUG, HOLEPLUG, HOLE
-
75812947 FOIL, FENDER, LEFT HANDFOIL, FENDER, LEFT HAND
-
85812255 FOIL, 10X1FOIL, 10X1
-
95812946 FOIL, FENDER, LEFT HANDFOIL, FENDER, LEFT HAND
-
105812945 FOIL, FENDER, LEFT HANDFOIL, FENDER, LEFT HAND
