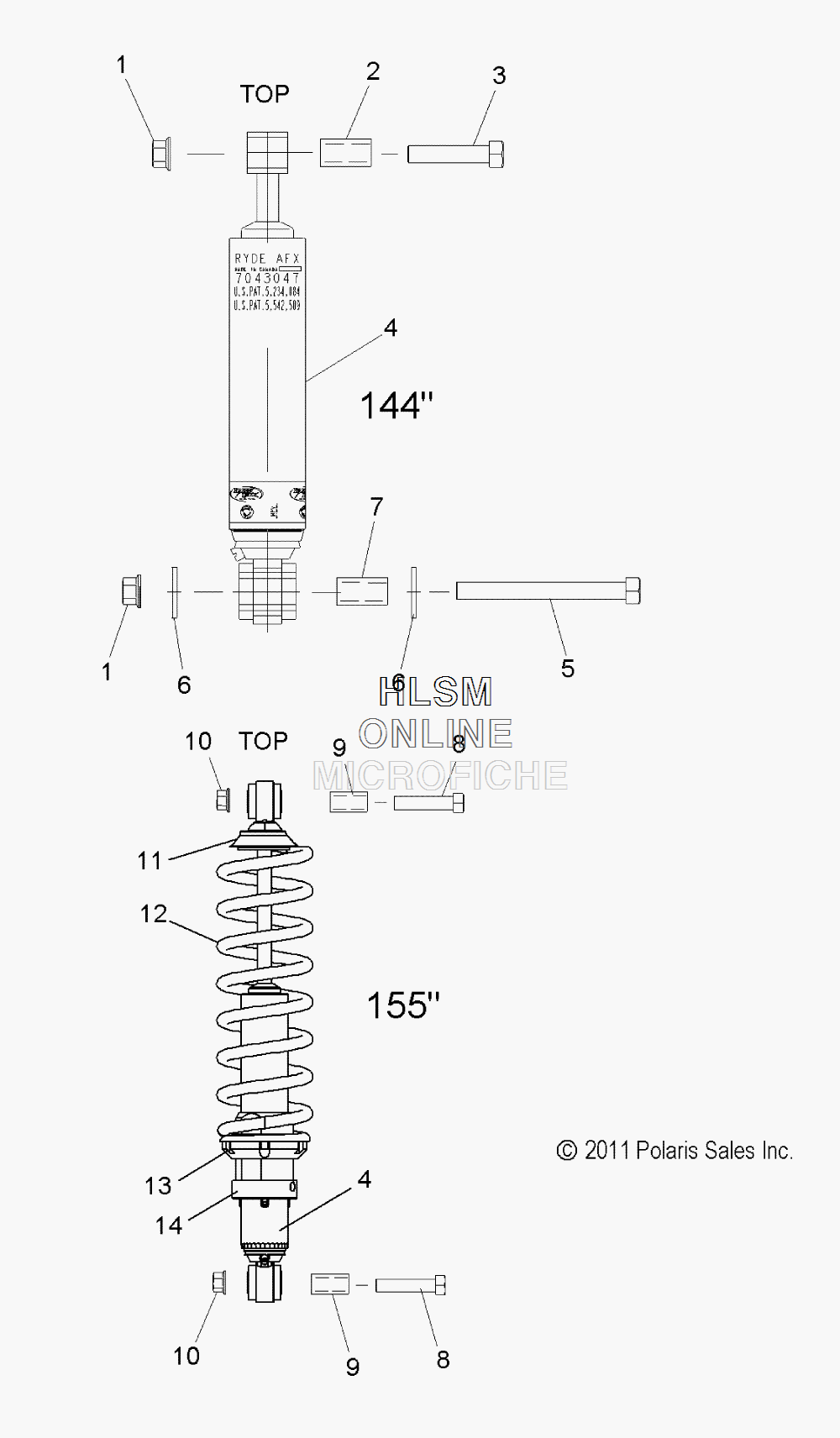

SUSPENSION - REAR SHOCK TRACK для Polaris 600 RMK 144 ALL OPTIONS [S13CK6] - 2013 года выпуска
-
№АртикулНазвание
-
17547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
25010422 BUSHINGBUSHING
-
37512410 SCREWSCREW
-
47043047 SHOCK, REAR TRACK (144)SHOCK, REAR TRACK (144)
-
57518263 SCREWSCREW
-
67555795 WASHER, WAVEWASHER, WAVE
-
75333905 SLEEVESLEEVE
-
87519097 SCREWSCREW
-
95137230 BUSHINGBUSHING
-
107547480 NUT, NYLOK, ZODNUT, NYLOK, ZOD
-
115137464 RETAINER, SPRINGRETAINER, SPRING
-
127043680-133 SPRING, COMPRESSION, 210# (BRIGHT WHITE) (STD.)SPRING, COMPRESSION, 210# (BRIGHT WHITE) (STD.)
-
127043741-067 SPRING, COMPRESSION, 250# (BLACK) (ACCY.)SPRING, COMPRESSION, 250# (BLACK) (ACCY.)
-
135431734 RING, SPRING PRELOAD, ADJ.RING, SPRING PRELOAD, ADJ.
-
145137578 RETAINER, SPRING, THREADEDRETAINER, SPRING, THREADED
