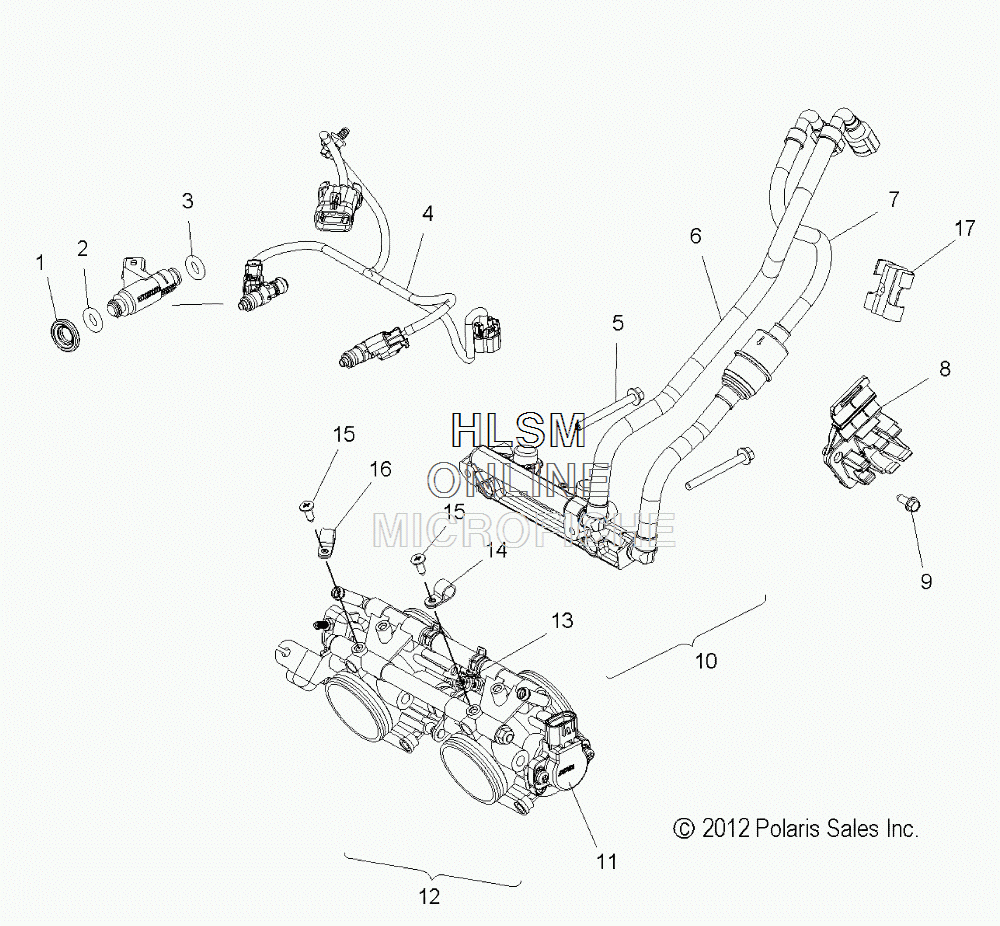

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 RUSH PRO R RETRO [S13BP6GSM] - 2013 года выпуска`
-
№АртикулНазвание
-
11500198 O-RING (BLACK) (1 PER INJECTOR)O-RING (BLACK) (1 PER INJECTOR)
-
25412891 O-RING (BROWN) (1 PER INJECTOR)O-RING (BROWN) (1 PER INJECTOR)
-
35436287 BUSHING, RUBBER (GREEN) (1 PER INJECTOR)BUSHING, RUBBER (GREEN) (1 PER INJECTOR)
-
44013394 HARNESS-LE, W/INJ.HARNESS-LE, W/INJ.
-
57519244 SCREWSCREW
-
62521192 ASM., FUEL LINE SUPPLYASM., FUEL LINE SUPPLY
-
72521193 ASM., FUEL LINE RETURNASM., FUEL LINE RETURN
-
81204261 ASM., FUEL FILTER RETAINERASM., FUEL FILTER RETAINER
-
85812996 PAD, FUEL FILTERPAD, FUEL FILTER
-
97512098 SCREWSCREW
-
102521143 ASM., FUEL RAIL, LE-13, 2 INJ. (INCL. FUEL RAIL, DAMPERS, CLAMPS, SCREWS)ASM., FUEL RAIL, LE-13, 2 INJ. (INCL. FUEL RAIL, DAMPERS, CLAMPS, SCREWS)
-
102521144 DAMPER, FUELDAMPER, FUEL
-
105254413 CLAMP, DAMPERCLAMP, DAMPER
-
105254414 CLIP, HOSECLIP, HOSE
-
107519250 SCREWSCREW
-
121204567 ASM., THROTTLE BODYASM., THROTTLE BODY
-
133131732 NUTNUT
-
133131731 SCREWSCREW
-
147081837 CLAMP, 3/8CLAMP, 3/8
-
157517847 SCREWSCREW
-
167080539 CLAMP, 1/4CLAMP, 1/4
-
177080482 T-CLIPT-CLIP
