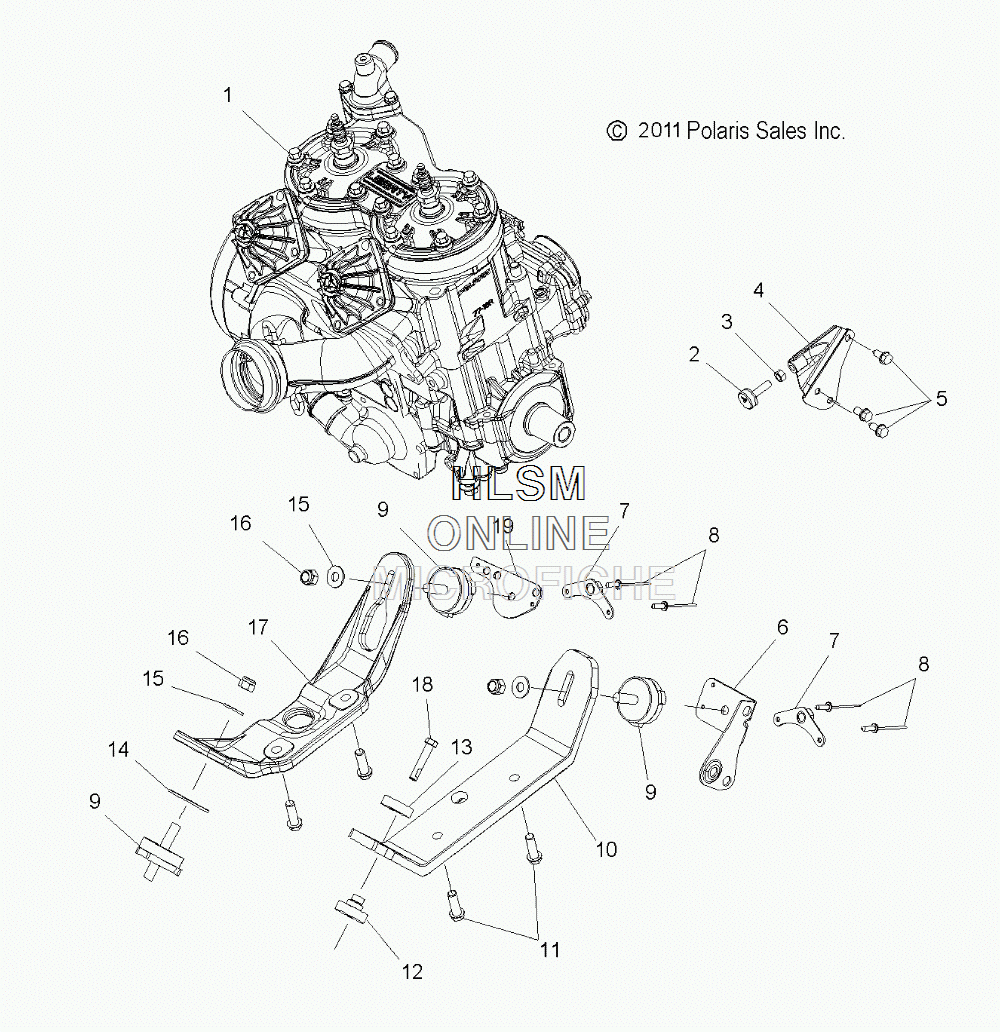

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 WIDETRAK IQ INTL [S13PU6NEL] - 2013 года выпуска
-
№АртикулНазвание
-
12204150 KIT, SHORT BLOCK (SEE NOTE)KIT, SHORT BLOCK (SEE NOTE)
-
23021354 TORQUE, STOPTORQUE, STOP
-
37542414 NUTNUT
-
41016938 TORQUE, STOPTORQUE, STOP
-
57517854 SCREWSCREW
-
65253089 SUPPORTTORQUE STOP/ENGINE MOUNTSUPPORTTORQUE STOP/ENGINE MOUNT
-
71015202 PLATE, NUT, REARPLATE, NUT, REAR
-
87661637 RIVETRIVET
-
93021717 ISOLATOR, RUBBERISOLATOR, RUBBER
-
105135856 STRAP, ENGINE MOUNT, LEFT HANDSTRAP, ENGINE MOUNT, LEFT HAND
-
117518644 SCREWSCREW
-
125411686 MOUNT, ENGINE RUBBER, BOTTOMMOUNT, ENGINE RUBBER, BOTTOM
-
135411685 MOUNT, ENGINE RUBBER, TOPMOUNT, ENGINE RUBBER, TOP
-
147555915 WASHERWASHER
-
157555893 WASHER, FLATWASHER, FLAT
-
167542451 NUTNUT
-
175135326 STRAP, ENGINE MOUNT, RIGHT HANDSTRAP, ENGINE MOUNT, RIGHT HAND
-
187519262 BOLTBOLT
-
195250173 SUPPORT, ENGINE MOUNT, REARSUPPORT, ENGINE MOUNT, REAR
