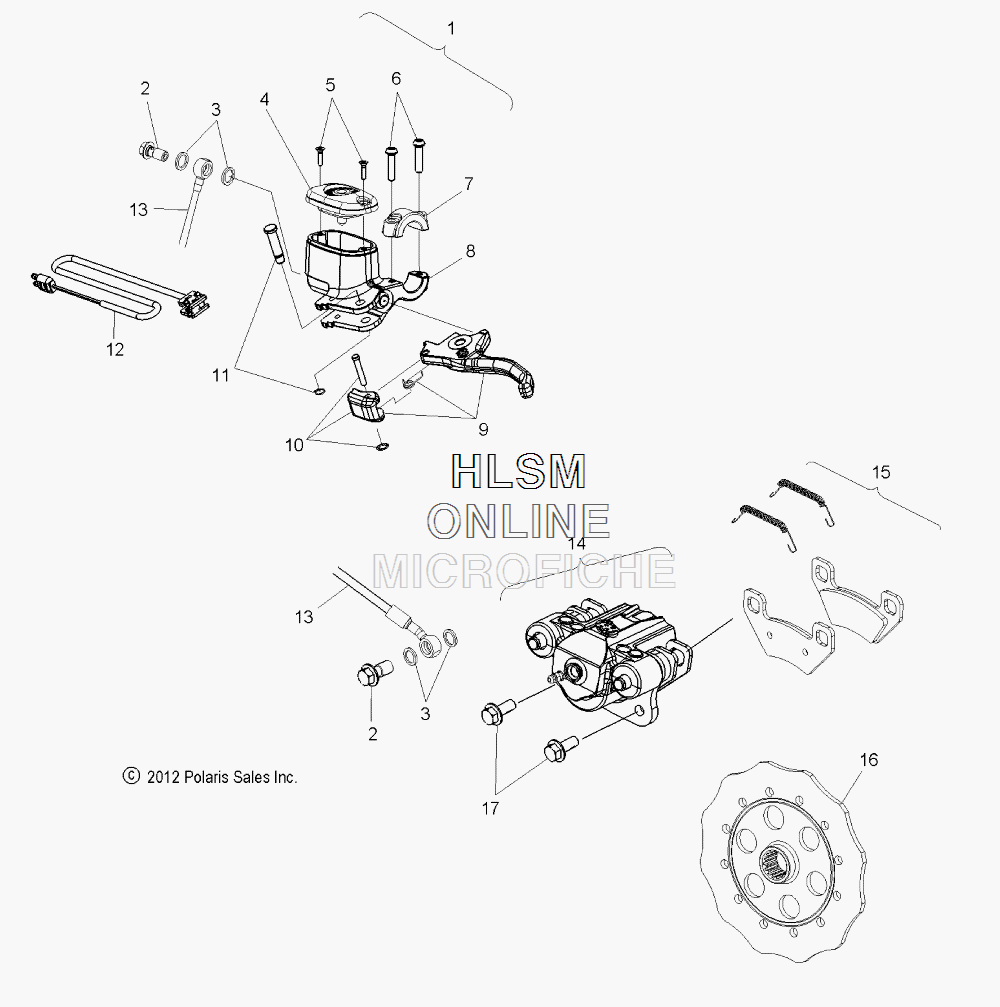

BRAKE ASSEMBLY для Polaris 800 PRO RMK 163 ALL OPTIONS [S13CH8] - 2013 года выпуска
-
№АртикулНазвание
-
12204135 KIT, FULL MASTER ASM. (INCL. 2-12)KIT, FULL MASTER ASM. (INCL. 2-12)
-
22203392 KIT, BANJOKIT, BANJO
-
32203393 KIT, WASHER (2 PER)KIT, WASHER (2 PER)
-
42203055 KIT, M/C COVERKIT, M/C COVER
-
52202796 KIT, SCREW, RESERVOIRKIT, SCREW, RESERVOIR
-
62202798 KIT, SCREW, CLAMPKIT, SCREW, CLAMP
-
72203093 KIT, CLAMPKIT, CLAMP
-
82204136 KIT, PISTON SUB W/RESERVOIRKIT, PISTON SUB W/RESERVOIR
-
92202791 KIT, ASM., PARK LEVER (INCL. SPRING)KIT, ASM., PARK LEVER (INCL. SPRING)
-
102203054 KIT, PARK LEVERKIT, PARK LEVER
-
112202799 KIT, PIVOT PIN AND SNAP RINGKIT, PIVOT PIN AND SNAP RING
-
122202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
132204756 KIT, BRAKE LINEKIT, BRAKE LINE
-
142204758 KIT, BRACKET ASM. (INCL. PLATE, PINS)KIT, BRACKET ASM. (INCL. PLATE, PINS)
-
142204140 KIT, PISTON AND SEALSKIT, PISTON AND SEALS
-
142203048 KIT, SEALSKIT, SEALS
-
142203049 KIT, GUIDE, O-RINGKIT, GUIDE, O-RING
-
142203050 KIT, SCREW, BLEEDERKIT, SCREW, BLEEDER
-
142204759 KIT, LEFT HAND HOUSING, PISTON, SEALS AND BLEEDERKIT, LEFT HAND HOUSING, PISTON, SEALS AND BLEEDER
-
142204757 KIT, FULL ASM., LEFT HANDKIT, FULL ASM., LEFT HAND
-
152204137 KIT, BRAKE PADS AND SPRINGSKIT, BRAKE PADS AND SPRINGS
-
162204712 KIT, SERVICE DISC BRAKE, 7 INCHKIT, SERVICE DISC BRAKE, 7 INCH
-
177519243 BOLT, FLANGEBOLT, FLANGE
