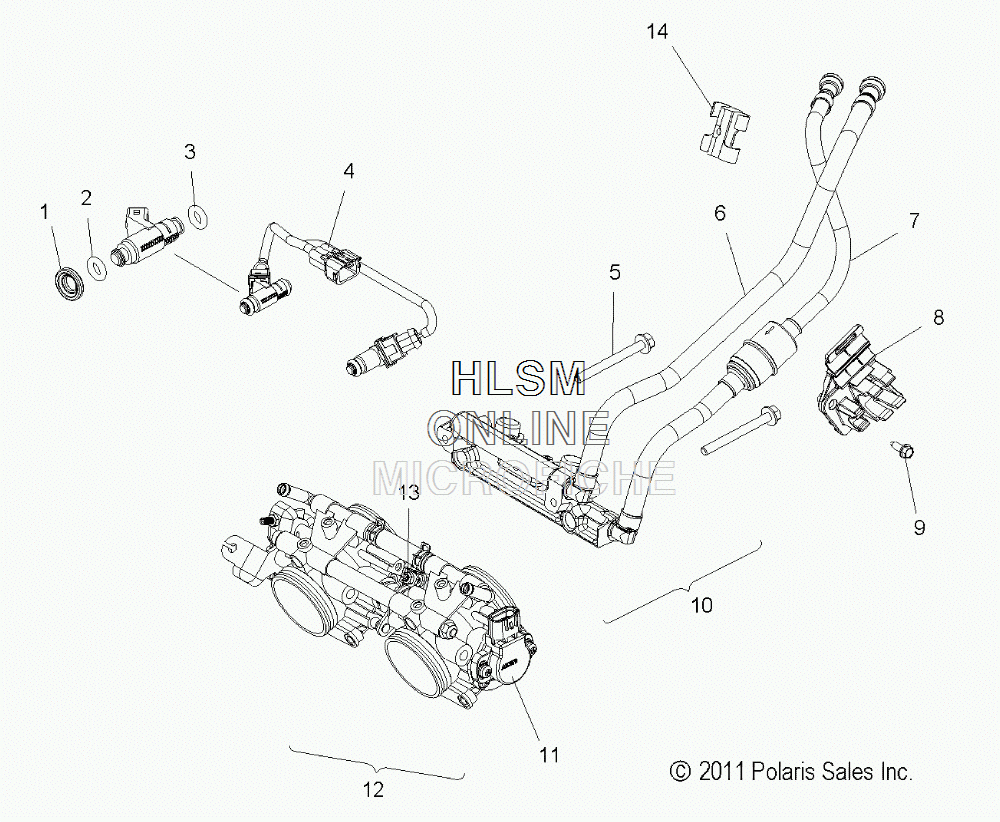

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 800 RUSH ES [S13BF8GSL] - 2013 года выпуска`
-
№АртикулНазвание
-
15436287 BUSHING, RUBBER (GREEN) (1/INJECTOR)BUSHING, RUBBER (GREEN) (1/INJECTOR)
-
25412891 O-RING (BROWN) (1/INJECTOR)O-RING (BROWN) (1/INJECTOR)
-
31500198 O-RING (BLACK) (1/INJECTOR)O-RING (BLACK) (1/INJECTOR)
-
44013394 HARNESS W/INJ, DC-SDI (YELLOW)HARNESS W/INJ, DC-SDI (YELLOW)
-
57519244 SCREWSCREW
-
62521192 ASM., FUEL LINE, RETURN, RUSHASM., FUEL LINE, RETURN, RUSH
-
72521193 ASM., FUEL LINE W/FILTER, RUSHASM., FUEL LINE W/FILTER, RUSH
-
81204261 ASM., FUEL FILTER RETAINERASM., FUEL FILTER RETAINER
-
97512095 SCREWSCREW
-
102521143 ASM., FUEL RAIL (INCL. FUEL RAIL, CLAMPS, DAMPERS)ASM., FUEL RAIL (INCL. FUEL RAIL, CLAMPS, DAMPERS)
-
102521144 DAMPER, FUELDAMPER, FUEL
-
105254413 CLAMP, DAMPERCLAMP, DAMPER
-
105254414 CLIP, HOSECLIP, HOSE
-
107519250 SCREWSCREW
-
121204570 ASM., THROTTLE BODY, 800LE (INCL. 11)ASM., THROTTLE BODY, 800LE (INCL. 11)
-
133131731 SCREWSCREW
-
133131732 NUTNUT
-
147080482 T-CLIPT-CLIP
