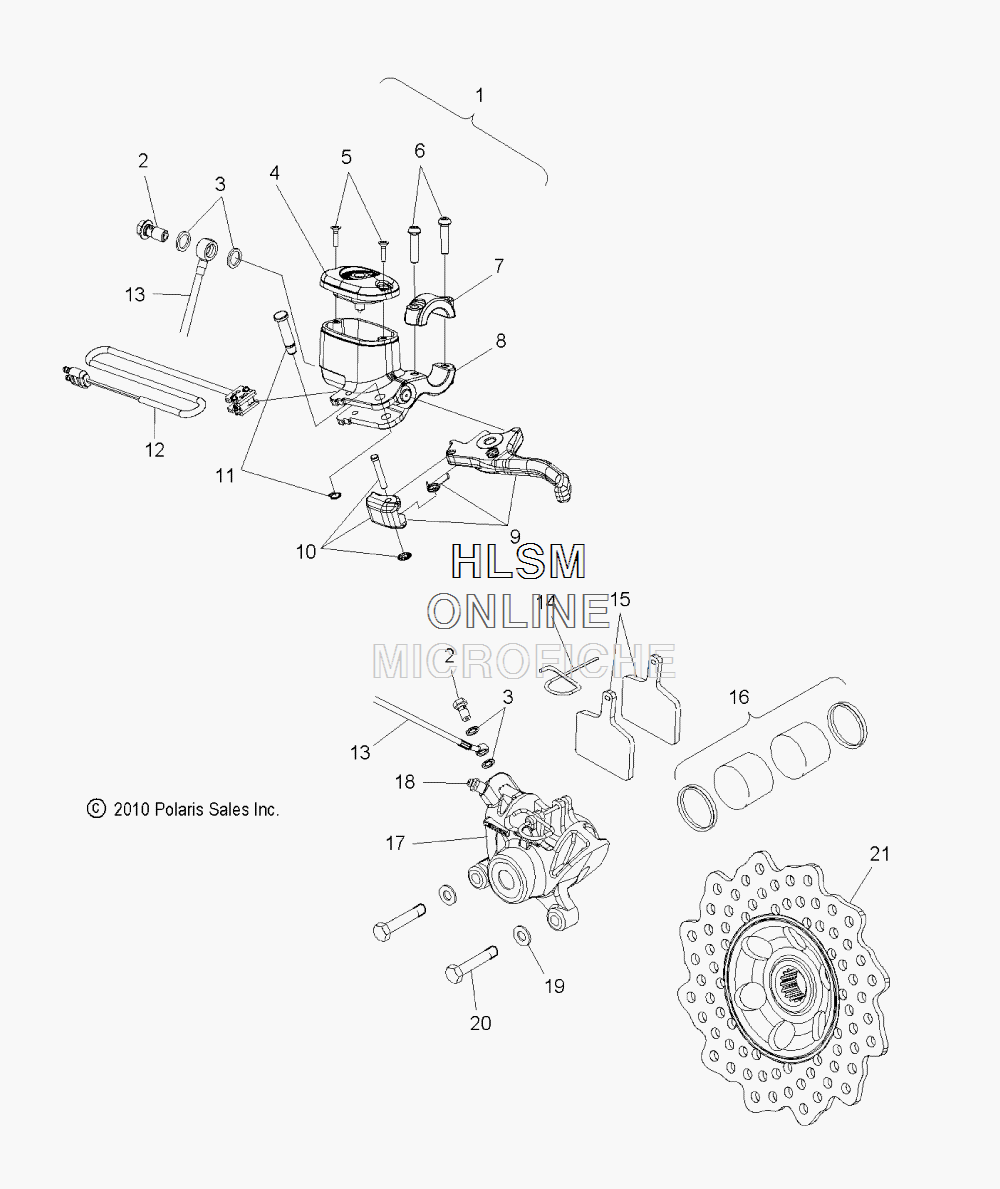

BRAKE ASSEMBLY для Polaris 800 SWITCHBACK ASSAULT ALL OPTIONS [S13CW8] - 2013 года выпуска
-
№АртикулНазвание
-
12203693 KIT, FULL ASM. (INCL. 4-12)KIT, FULL ASM. (INCL. 4-12)
-
22203392 KIT, BANJOKIT, BANJO
-
32203393 KIT, WASHER (2 PER)KIT, WASHER (2 PER)
-
42203055 KIT, M/C COVERKIT, M/C COVER
-
52202796 KIT, SCREW, RESERVOIRKIT, SCREW, RESERVOIR
-
62202798 KIT, SCREW, CLAMPKIT, SCREW, CLAMP
-
72203093 KIT, CLAMPKIT, CLAMP
-
82203061 KIT, PISTON W/RESERVOIRKIT, PISTON W/RESERVOIR
-
92202791 KIT, ASM., PARK LEVER (INCL. SPRING)KIT, ASM., PARK LEVER (INCL. SPRING)
-
102203054 KIT, PARK LEVERKIT, PARK LEVER
-
112202799 KIT, PIVOT PIN AND SNAP RINGKIT, PIVOT PIN AND SNAP RING
-
122202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
132204235 KIT, BRAKE LINEKIT, BRAKE LINE
-
142202206 KIT, RETAINING PINKIT, RETAINING PIN
-
152204036 KIT, PAD/PINKIT, PAD/PIN
-
162202204 KIT, SEALKIT, SEAL
-
162204035 KIT, CALIPER/SEALKIT, CALIPER/SEAL
-
172204037 KIT, PHANTOM CALIPER (INCL. 14-16)KIT, PHANTOM CALIPER (INCL. 14-16)
-
182202205 KIT, BLEEDER FITTINGKIT, BLEEDER FITTING
-
197556473 WASHERWASHER
-
207518957 SCREWSCREW
-
212203918 KIT, SERVICE DISC, SAWTOOTH, 15TKIT, SERVICE DISC, SAWTOOTH, 15T
