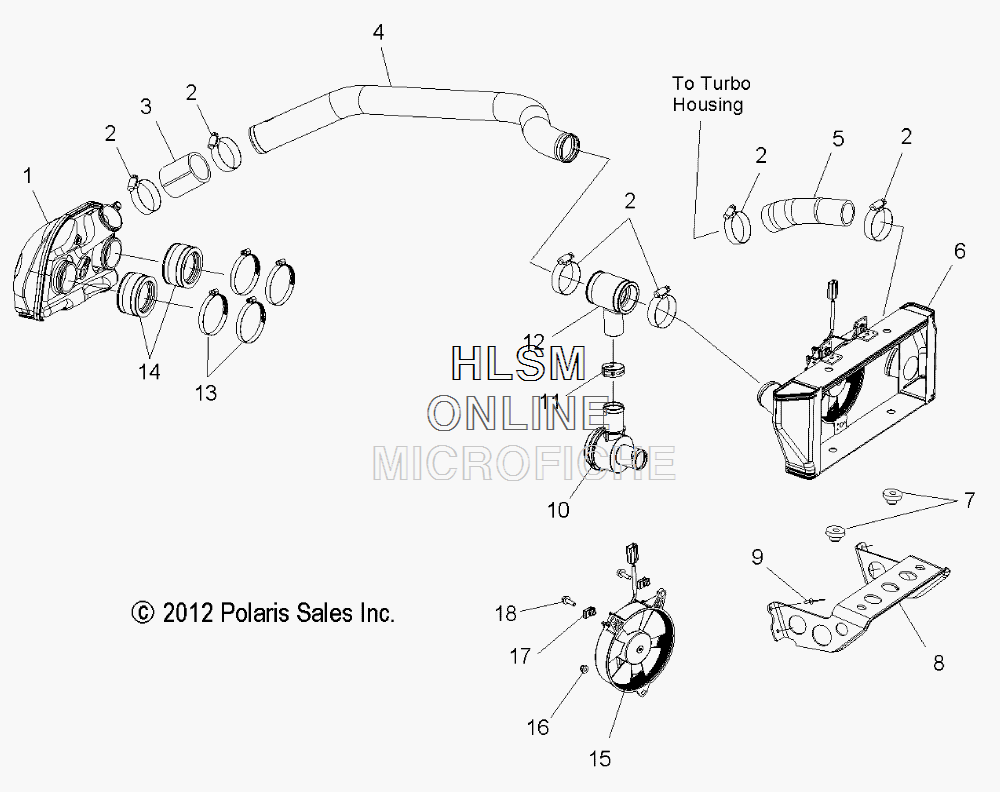

INTER COOLER для Polaris IQ TURBO LXT [S13PT7FSL] - 2013 года выпуска
-
№АртикулНазвание
-
11203798 ASM., AIR BOX, TURBOASM., AIR BOX, TURBO
-
27081414 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
35412592 CONNECTOR, BOOST TUBE/AIR BOXCONNECTOR, BOOST TUBE/AIR BOX
-
45334748 TUBE, BOOSTTUBE, BOOST
-
55412642 HOSE, TURBO/INTER COOLERHOSE, TURBO/INTER COOLER
-
61240620 ASM., CHARGE AIR COOLERASM., CHARGE AIR COOLER
-
77052028 GROMMETGROMMET
-
85248495 BRACKET, CHARGED AIR COOLERBRACKET, CHARGED AIR COOLER
-
97661637 RIVETRIVET
-
101203061 VALVE, DUMP, TURBOVALVE, DUMP, TURBO
-
117080843 CLAMP, SPRING BANDCLAMP, SPRING BAND
-
125413021 CONNECTOR, BOOST TUBE/CHG. AIRCONNECTOR, BOOST TUBE/CHG. AIR
-
137080451 CLAMP, HOSE, 2.5, SSCLAMP, HOSE, 2.5, SS
-
145413695 ADAPTOR, AIR BOX, RIBBEDADAPTOR, AIR BOX, RIBBED
-
151240621 ASM., CAC FANASM., CAC FAN
-
167547339 NUTNUT
-
177081657 CLIP, SPEED NUTCLIP, SPEED NUT
-
187518613 SCREWSCREW
