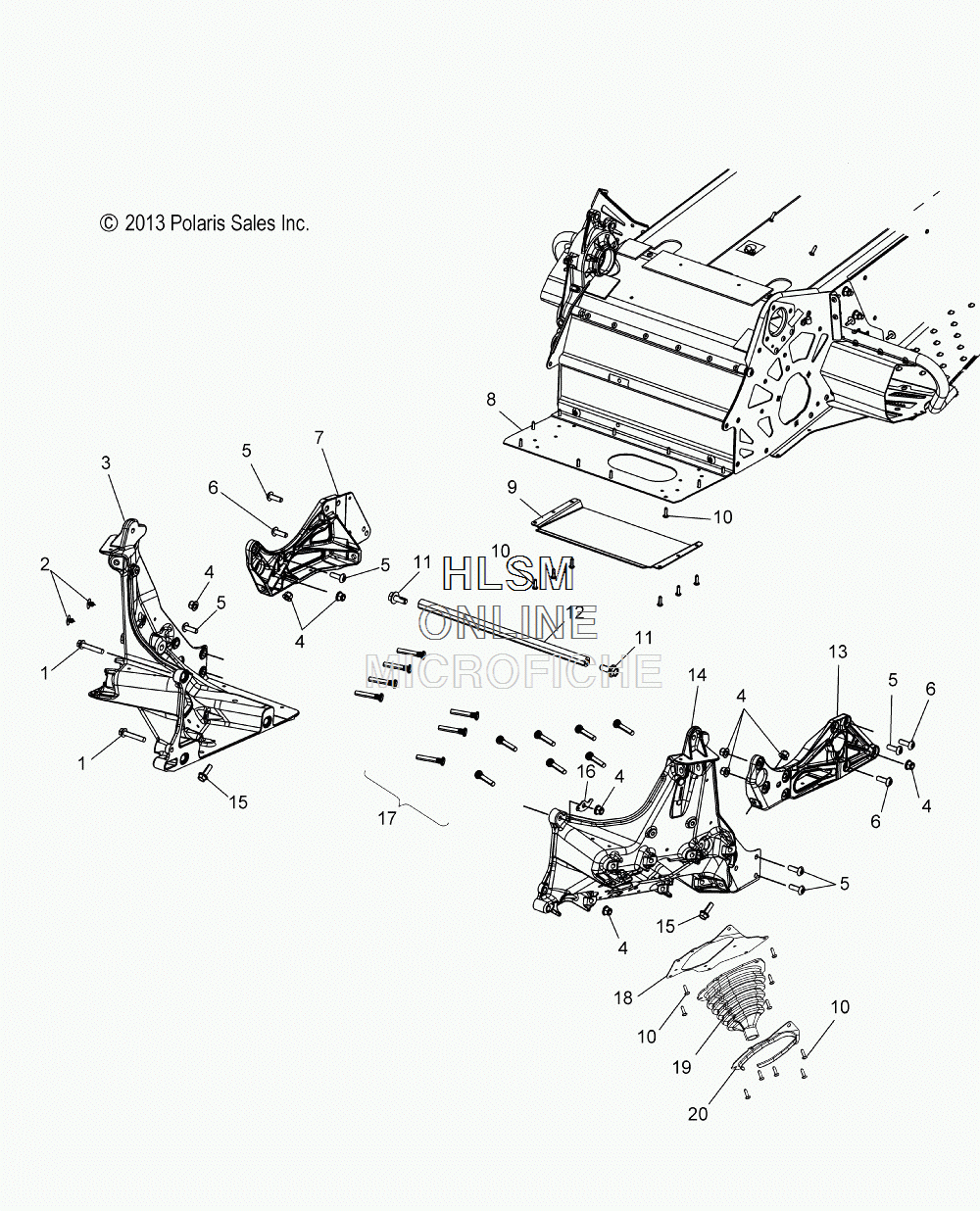

BULKHEAD ASSEMBLY для Polaris 550 INDY 144 ES [S14CR5BSL] - 2014 года выпуска
-
№АртикулНазвание
-
--2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
-
--2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
-
--2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
17516732 SCREWSCREW
-
27670067 CLIP, DART, NYLONCLIP, DART, NYLON
-
31018222 ASM., CLIP, F/C, RIGHT HAND (INCL. 17) (REQUIRES ADHESIVE)ASM., CLIP, F/C, RIGHT HAND (INCL. 17) (REQUIRES ADHESIVE)
-
47547332 NUTNUT
-
57519070 SCREWSCREW
-
67518906 SCREWSCREW
-
75138693 BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)
-
85256779 FLOOR, BULKHEAD, VENTEDFLOOR, BULKHEAD, VENTED
-
95256780 VENT, FLOORVENT, FLOOR
-
107661637 RIVETRIVET
-
117518934 SCREWSCREW
-
125137910 TUBE, CROSSTUBE, CROSS
-
131017942 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
-
141018221 ASM., CLIP, F/C, LEFT HAND (INCL. 17) (REQUIRES ADHESIVE)ASM., CLIP, F/C, LEFT HAND (INCL. 17) (REQUIRES ADHESIVE)
-
157519243 SCREWSCREW
-
165252680 BRKT., PIPE/CHASSISBRKT., PIPE/CHASSIS
-
177519204 STUDSTUD
-
185255215 REINFORCEMENT, CLIP, PLATED, LEFT HANDREINFORCEMENT, CLIP, PLATED, LEFT HAND
-
185255216 REINFORCEMENT, CLIP, PLATED, RIGHT HANDREINFORCEMENT, CLIP, PLATED, RIGHT HAND
-
195414360 BOOT, TIE RODBOOT, TIE ROD
-
205255478-067 PLATE, BOOT SEAL, LEFT HAND, BLACKPLATE, BOOT SEAL, LEFT HAND, BLACK
-
205255479-067 PLATE, BOOT SEAL, RIGHT HAND, BLACKPLATE, BOOT SEAL, RIGHT HAND, BLACK
