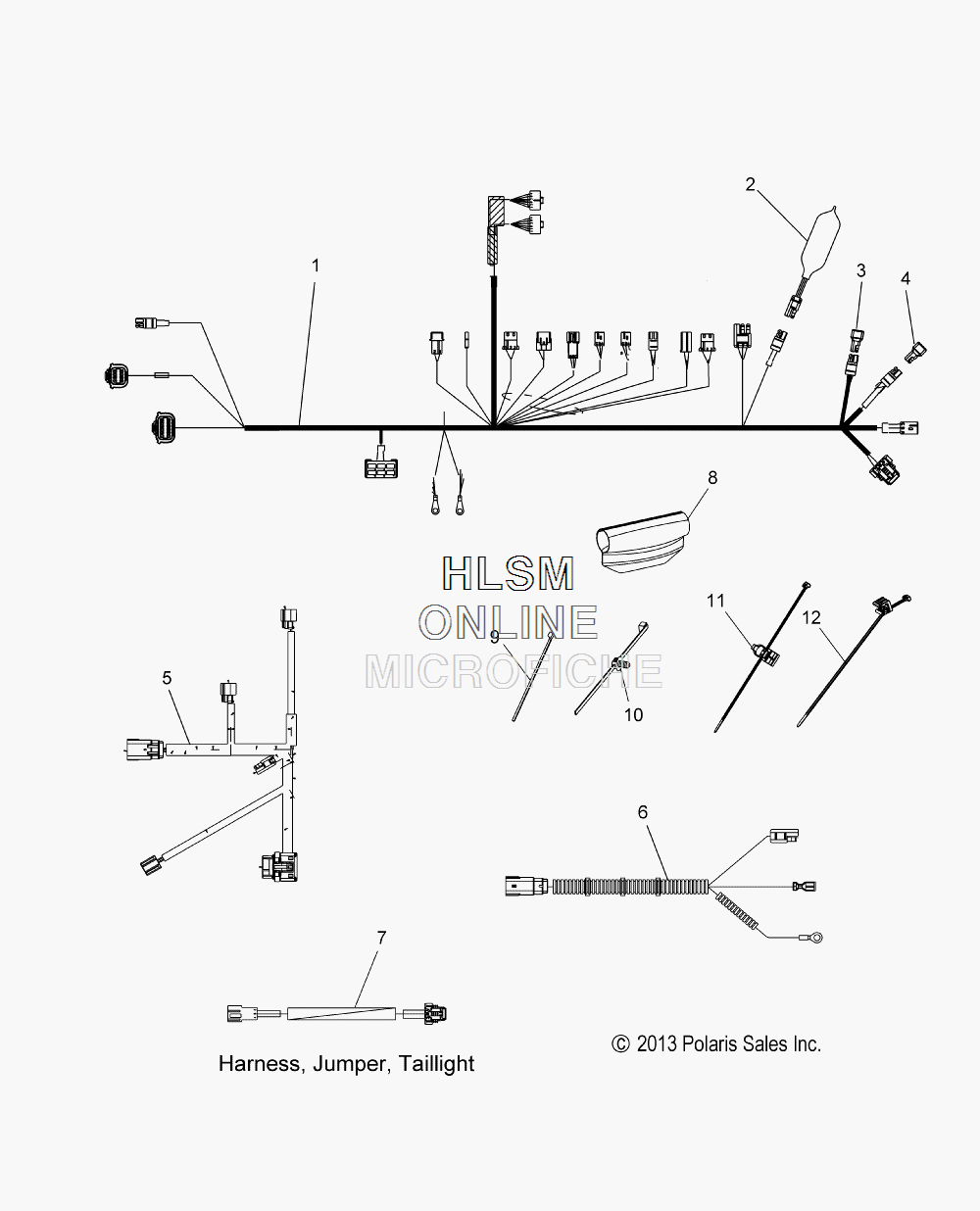

WIRING HARNESS для Polaris 550 INDY ES INTL [S14CB5BEA] - 2014 года выпуска
-
№АртикулНазвание
-
12411750 HARNESS, MAIN WIRE, F/CHARNESS, MAIN WIRE, F/C
-
24013412 CAPACITOR, FILTERCAPACITOR, FILTER
-
34010781 DIODEDIODE
-
44011441 CAPACITOR, FILTERCAPACITOR, FILTER
-
52411751 HARNESS, HOOD, 550HARNESS, HOOD, 550
-
62411513 HARNESS, ES, DC-SDIHARNESS, ES, DC-SDI
-
72411806 HARNESS, JUMPER, TAILLIGHT, LEDHARNESS, JUMPER, TAILLIGHT, LED
-
82685075 COVER, HARNESSCOVER, HARNESS
-
97080138 CABLE TIECABLE TIE
-
107081496 CLIP, ROUTINGCLIP, ROUTING
-
117081876 CLIP, EDGE, SIDE, W/STRAPCLIP, EDGE, SIDE, W/STRAP
-
127081824 STRAP, CABLE TIE W/EDGE CLIPSTRAP, CABLE TIE W/EDGE CLIP
