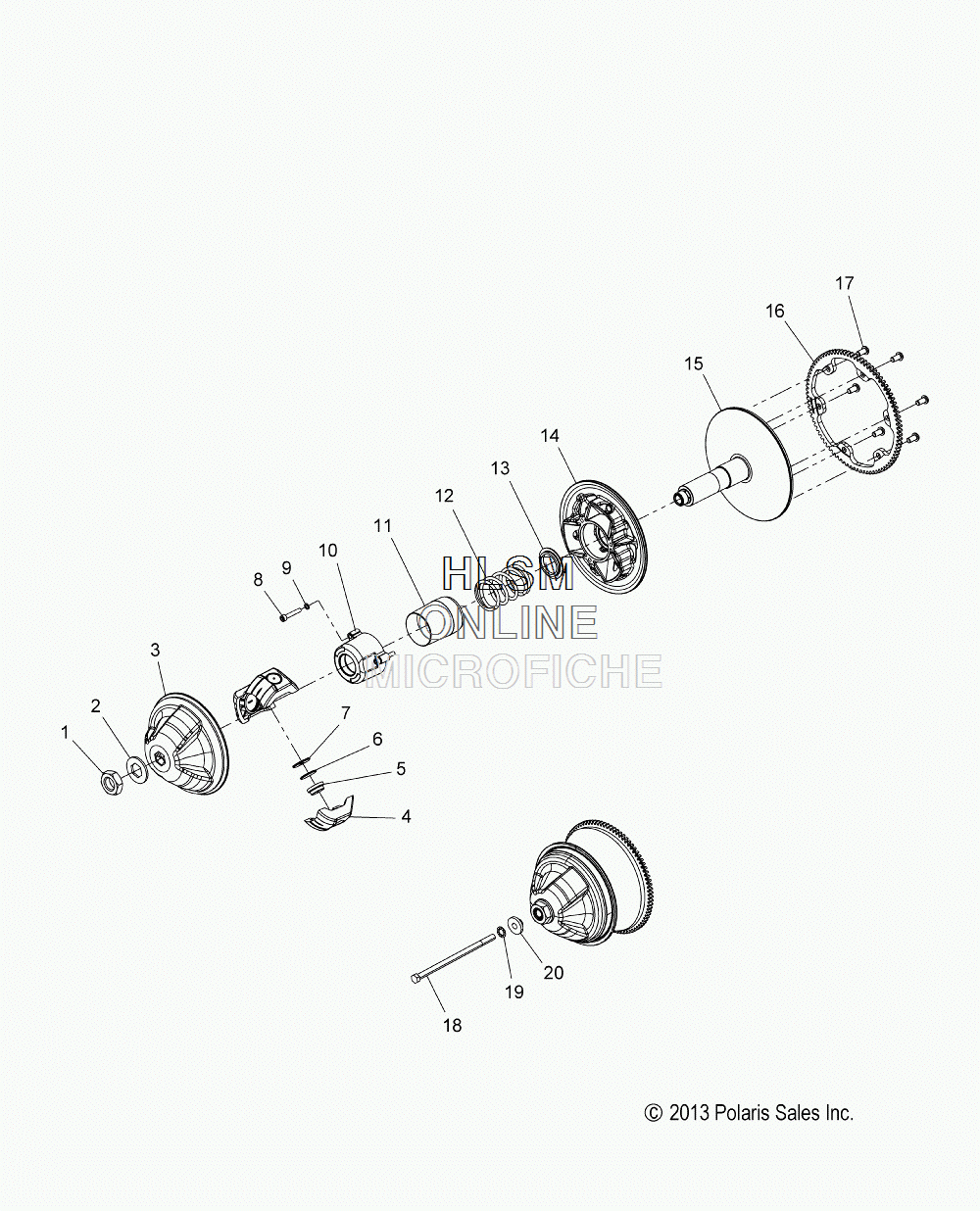

CLUTCH - PRIMARY для Polaris 550 INDY LXT INTL [S14CT5BSL] - 2014 года выпуска
-
№АртикулНазвание
-
11323049 ASM., DRIVE CLUTCH, CV TECH 50 ES (INCL. 1-17)ASM., DRIVE CLUTCH, CV TECH 50 ES (INCL. 1-17)
-
12205341 NUT, CVTNUT, CVT
-
22205340 WASHER, CVTWASHER, CVT
-
32205311 COVER, CVTCOVER, CVT
-
42205321 BLOCK, CVTBLOCK, CVT
-
52205308 SHIM, 21 GRAMSSHIM, 21 GRAMS
-
52205307 SHIM, 43 GRAMSSHIM, 43 GRAMS
-
62205309 SHIM, 3.2 GRAMSSHIM, 3.2 GRAMS
-
72205310 CAP, THREADEDCAP, THREADED
-
82205470 SCREWSCREW
-
92205338 WASHER, LOCKWASHER, LOCK
-
102205306 COVER, SPRINGCOVER, SPRING
-
112205305 GUIDE, SPRINGGUIDE, SPRING
-
127044154 SPRING, 85LB/IN.SPRING, 85LB/IN.
-
132205304 SEAT, SPRINGSEAT, SPRING
-
142205303 SHEAVE, SLIDINGSHEAVE, SLIDING
-
152205300 SHEAVE, FIXEDSHEAVE, FIXED
-
162205312 RING GEARRING GEAR
-
172205342 SCREWSCREW
-
187517776 SCREWSCREW
-
197575202 WASHER, INT LKWASHER, INT LK
-
205138316 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
