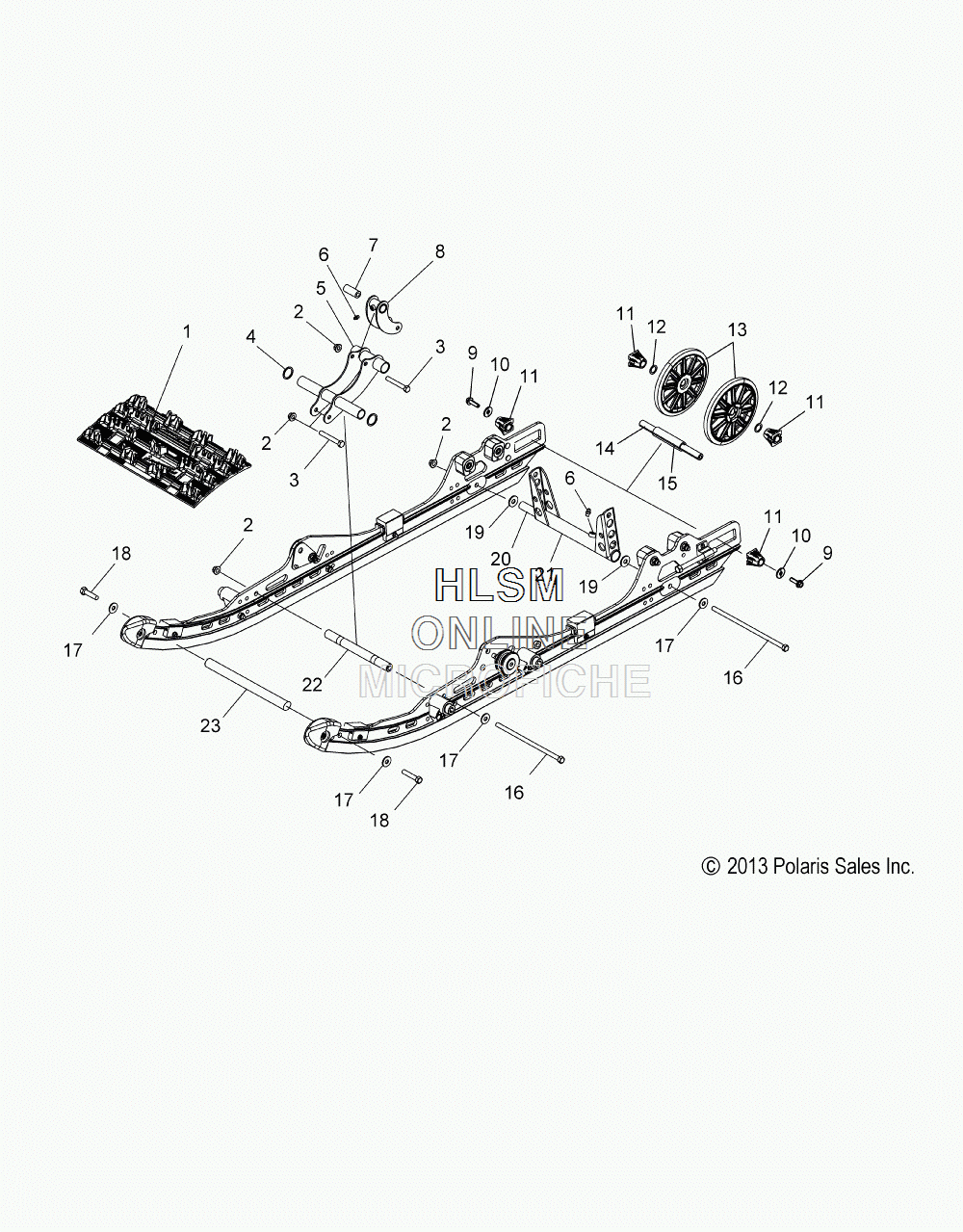

SUSPENSION - REAR W/ TRACK для Polaris 550 INDY [S14CB5BSA] - 2014 года выпуска
-
№АртикулНазвание
-
15412281 TRACK, .91 INCH SHOCKWAVETRACK, .91 INCH SHOCKWAVE
-
15222840 CLIP, GUIDE (NOT SHOWN)CLIP, GUIDE (NOT SHOWN)
-
27547263 NUT, NYLOKNUT, NYLOK
-
37515417 SCREWSCREW
-
47556509 BUSHINGBUSHING
-
51543124-329 BRACKET, H, BLACKBRACKET, H, BLACK
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
75337829 SLEEVE, SHOCK PIVOTSLEEVE, SHOCK PIVOT
-
81543125-329 PIVOT, SHOCKPIVOT, SHOCK
-
97517731 BOLTBOLT
-
107556130 WASHERWASHER
-
115432535 SPACER, IDLERSPACER, IDLER
-
127555918 BUSHINGBUSHING
-
131590459 ASM., WHEEL, IDLER, BLACKASM., WHEEL, IDLER, BLACK
-
137710444 RING, RETAININGRING, RETAINING
-
133514384 BEARINGBEARING
-
145020744 SHAFT, IDLERSHAFT, IDLER
-
155333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
167517921 SCREWSCREW
-
177556188 WASHER, FLATWASHER, FLAT
-
187518005 SCREWSCREW
-
197555893 WASHER, FLATWASHER, FLAT
-
205333404 SHAFTSHAFT
-
211541928-067 ARM, PIVOT, REAR, BLACKARM, PIVOT, REAR, BLACK
-
225134517 SHAFTSHAFT
-
235134078 SHAFTSHAFT
