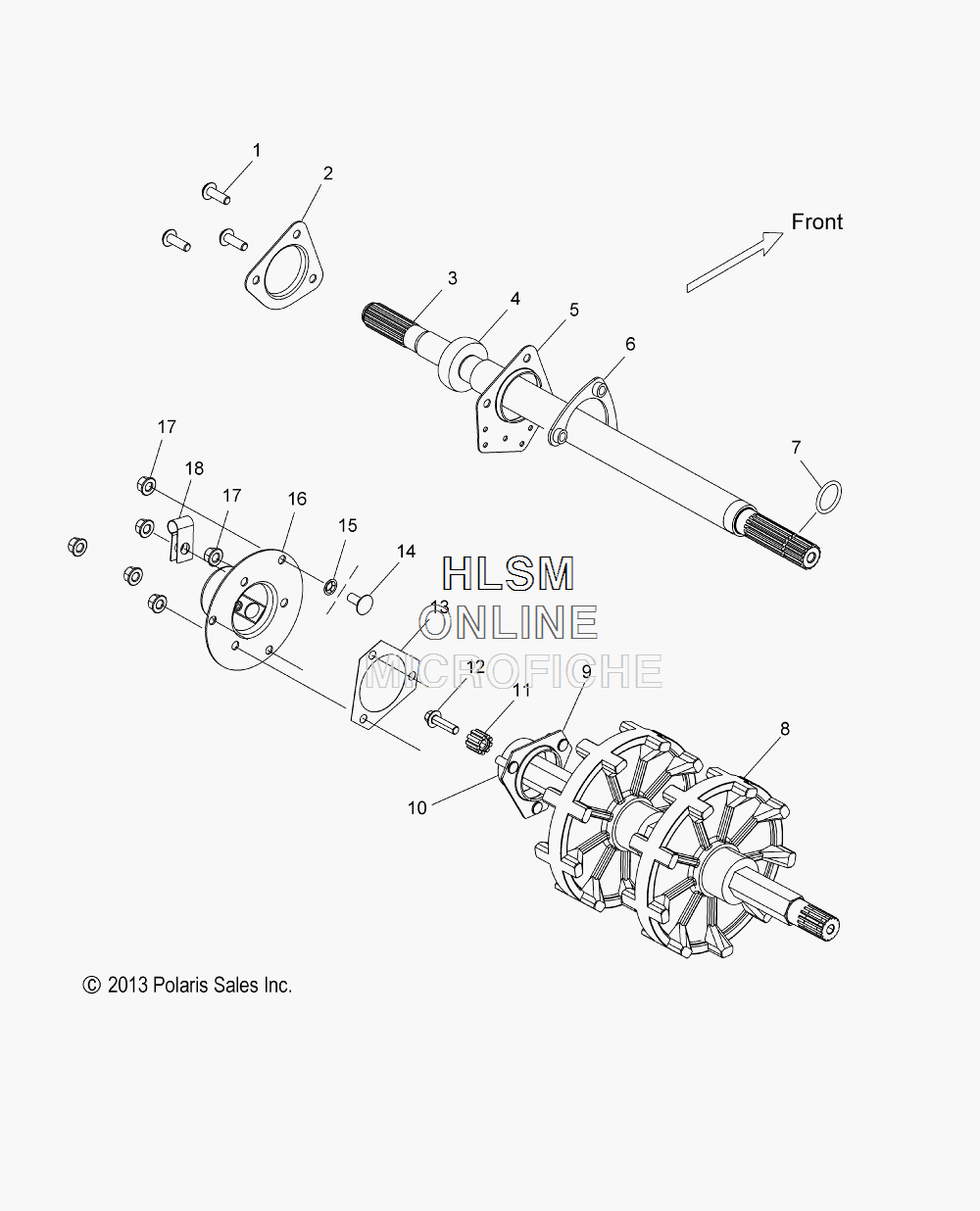

JACKSHAFT ASSEMBLY для Polaris 550 INDY VOYAGER INTL [S14CS5BEL] - 2014 года выпуска
-
№АртикулНазвание
-
17519260 SCREWSCREW
-
25252738 FLANGETTE, 3 BOLT, OFFSET, OUTFLANGETTE, 3 BOLT, OFFSET, OUT
-
31332854 ASM., JACKSHAFT (INCL. 4)ASM., JACKSHAFT (INCL. 4)
-
43514617 BEARINGBEARING
-
55252739 FLANGETTE, 3 BOLT, OFFSET, INFLANGETTE, 3 BOLT, OFFSET, IN
-
61017848 ASM., NUT PLATE, JACKSHAFTASM., NUT PLATE, JACKSHAFT
-
75413563 O-RINGO-RING
-
81590498 ASM., DRIVESHAFT (INCL. 8,15)ASM., DRIVESHAFT (INCL. 8,15)
-
91016551 ASM., FLANGETTE W/SCREWSASM., FLANGETTE W/SCREWS
-
103514448 BEARINGBEARING
-
115136619 WHEEL, PICKUP, 9 TOOTHWHEEL, PICKUP, 9 TOOTH
-
127518391 SCREWSCREW
-
135811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
147519324 SCREWSCREW
-
157547030 NUT, PALNUT, PAL
-
165246960 HOUSING, DRIVE PICK UPHOUSING, DRIVE PICK UP
-
177547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
187080367 CLAMP, CABLECLAMP, CABLE
