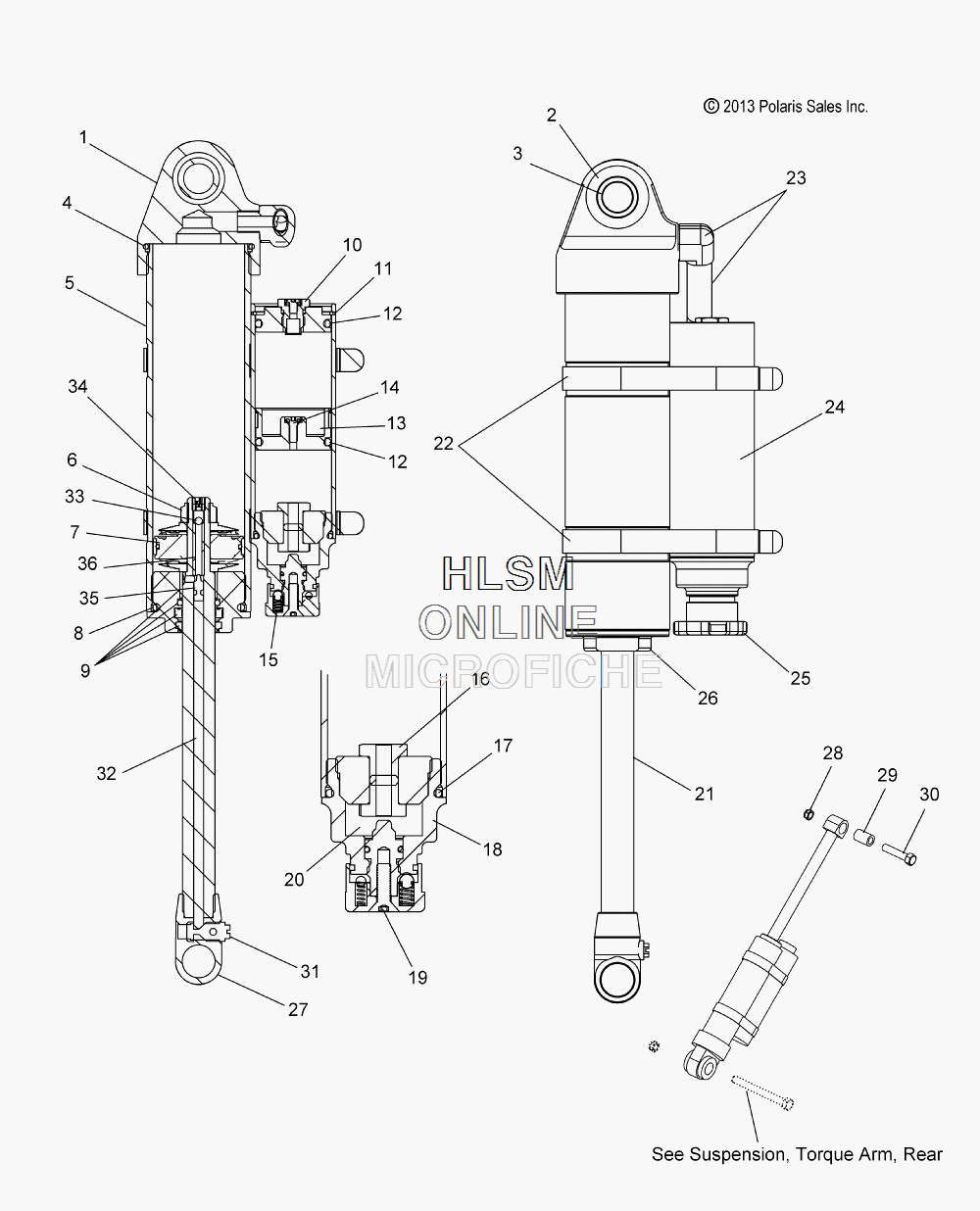

SUSPENSION - REAR SHOCK TRACK для Polaris 600 IQ RACER [S14MX6JSA] - 2014 года выпуска
-
№АртикулНазвание
-
--7044223 SHOCK, REAR TRACK, WALKER EVANSSHOCK, REAR TRACK, WALKER EVANS
-
11800568 LOOP, BODYLOOP, BODY
-
21800036 BEARING, URETHANEBEARING, URETHANE
-
31800032 SLEEVESLEEVE
-
41800027 O-RING, BODYO-RING, BODY
-
51800478 BODYBODY
-
61800164 NUT, CRIMPNUT, CRIMP
-
71800618 PISTON, 2 IN., W/O-RINGPISTON, 2 IN., W/O-RING
-
71800619 O-RING, 2-029O-RING, 2-029
-
71800185 BAND, PISTONBAND, PISTON
-
81800030 O-RING, BODYO-RING, BODY
-
91800038 BUSHING, SHAFTBUSHING, SHAFT
-
91800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
91800323 SEAL, SHAFT, U CUPSEAL, SHAFT, U CUP
-
91800322 WIPER, D TYPEWIPER, D TYPE
-
101800430 CAP, ENDCAP, END
-
101800329 VALVE, NEEDLEVALVE, NEEDLE
-
101800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
101800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
111800019 RING, SNAP, RESERVOIRRING, SNAP, RESERVOIR
-
121800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
131800281 PISTON, RESERVOIRPISTON, RESERVOIR
-
131800297 BAND, WEARBAND, WEAR
-
141800043 SCREW, BLEEDSCREW, BLEED
-
141800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
151800127 BALL, DETENTBALL, DETENT
-
151800128 SPRING, DETENTSPRING, DETENT
-
161800219 SCREWSCREW
-
171800027 O-RING, BODYO-RING, BODY
-
181800440 HOUSING, CLICKER, CLEARHOUSING, CLICKER, CLEAR
-
191800352 STUD, CLICKERSTUD, CLICKER
-
191800215 O-RING, STUDO-RING, STUD
-
191800196 SCREWSCREW
-
201800217 PISTON, CLICKERPISTON, CLICKER
-
211800567 SHAFTSHAFT
-
221800236 CLAMP, HOSE, RESERVOIRCLAMP, HOSE, RESERVOIR
-
231800205 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
231800198 HOSEHOSE
-
241800120 BODY, RESERVOIRBODY, RESERVOIR
-
251800441 KNOB, CLICKER, BLACKKNOB, CLICKER, BLACK
-
261800569 ASM., SEAL HEADASM., SEAL HEAD
-
271800564 LOOP, REBOUND SHAFTLOOP, REBOUND SHAFT
-
287542411 NUT, FLEXLOCNUT, FLEXLOC
-
295010422 BUSHINGBUSHING
-
307512410 SCREWSCREW
-
311800565 KNOB, REBOUND ADJUSTERKNOB, REBOUND ADJUSTER
-
321800566 ROD, REBOUND METERINGROD, REBOUND METERING
-
331800570 BALL, CHECKBALL, CHECK
-
341800571 SCREW, HOLLOW, SETSCREW, HOLLOW, SET
-
351800526 PISTON, REBOUNDPISTON, REBOUND
-
361800528 HOUSING, CHECK BALLHOUSING, CHECK BALL
