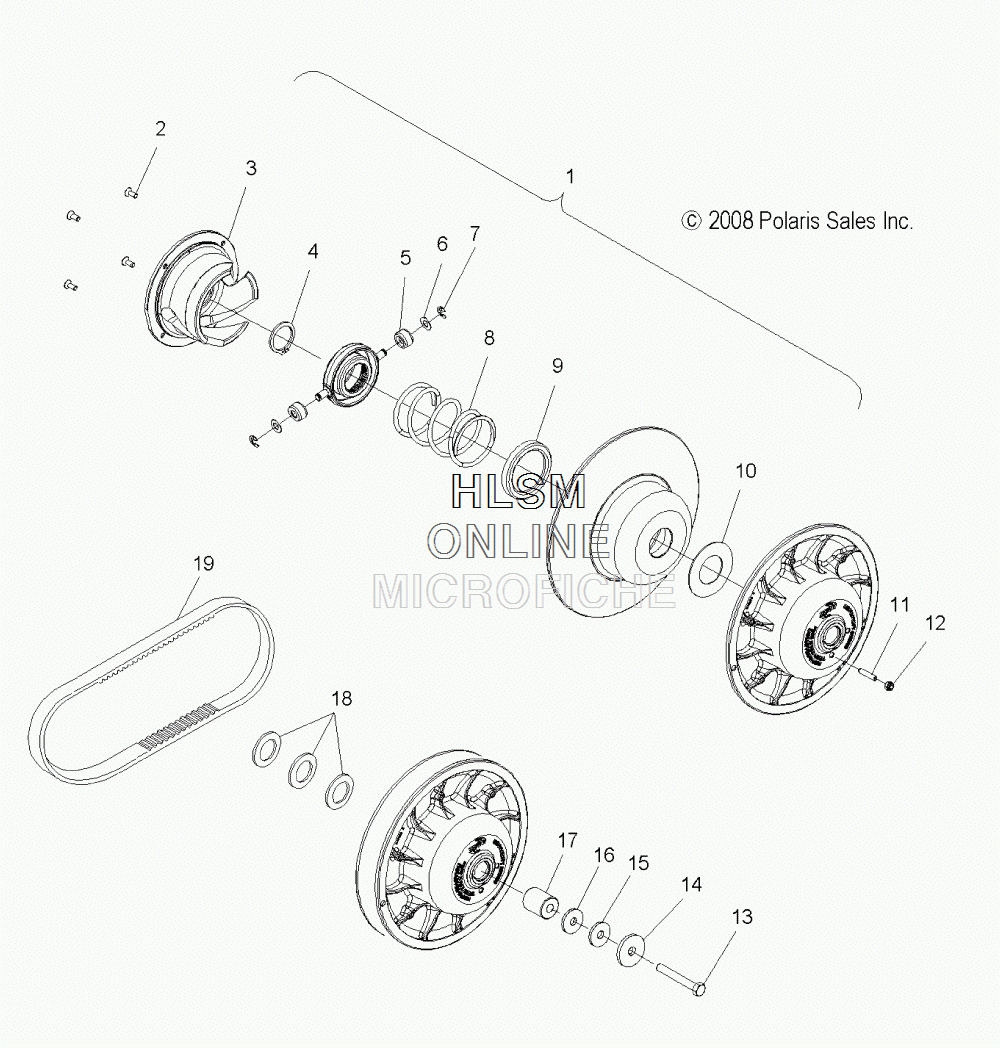

CLUTCH - SECONDARY для Polaris 600 PRO RMK 155 [S14CG6GSA] - 2014 года выпуска
-
№АртикулНазвание
-
11322948 ASM., DRIVEN CLUTCH, BASIC, LWT SPL (INCL. 4-7,9-12)ASM., DRIVEN CLUTCH, BASIC, LWT SPL (INCL. 4-7,9-12)
-
23235592 SCREWSCREW
-
35135403 RAMP, DRIVEN 56/42/36, LWERRAMP, DRIVEN 56/42/36, LWER
-
47710583 RING, RETAININGRING, RETAINING
-
55434534 ROLLERROLLER
-
67556226 WASHER, THRUSTWASHER, THRUST
-
77710523 E-RING, RETAININGE-RING, RETAINING
-
87043363 SPRING, DRIVEN CLUTCH, BLACK/PURPLESPRING, DRIVEN CLUTCH, BLACK/PURPLE
-
97556227 WASHER, THRUSTWASHER, THRUST
-
107556370 WASHERWASHER
-
113234228 SCREWSCREW
-
127542103 NUT, FLEXLOCNUT, FLEXLOC
-
137519254 SCREWSCREW
-
147555846 WASHER, FLATWASHER, FLAT
-
157555832 WASHER, FLATWASHER, FLAT
-
167555806 WASHER, FLATWASHER, FLAT
-
175137323 SPACER, CLUTCHSPACER, CLUTCH
-
187555864 WASHERWASHER
-
187555917 WASHERWASHER
-
187556509 BUSHINGBUSHING
-
193211115 BELT, DRIVEBELT, DRIVE
