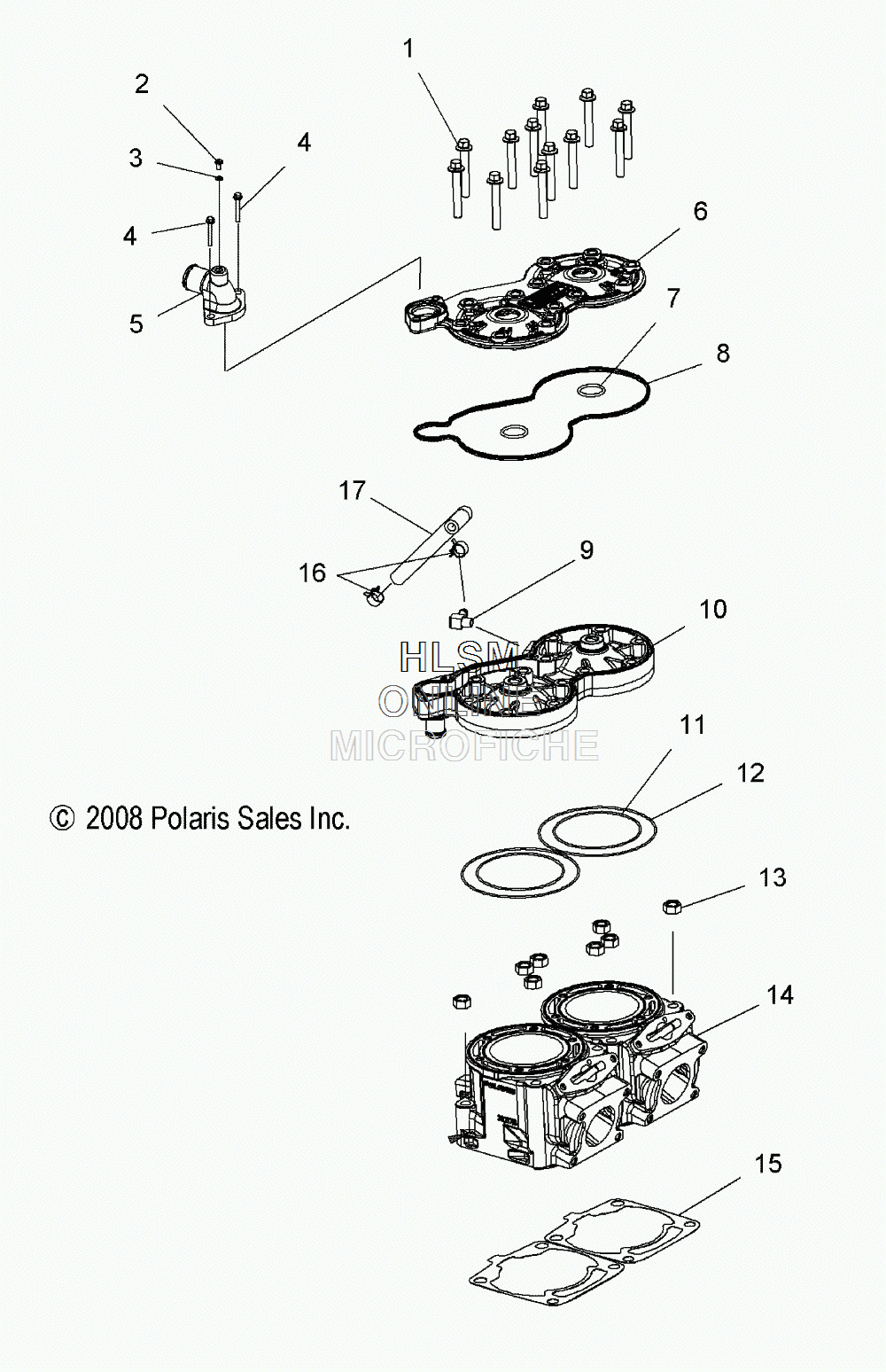

CYLINDER ASSEMBLY для Polaris 600 SWITCHBACK ASSAULT INTL [S14CW6] - 2014 года выпуска
-
№АртикулНазвание
-
17517533 SCREWSCREW
-
27517679 SCREWSCREW
-
37555998 WASHER, FLATWASHER, FLAT
-
47516827 SCREWSCREW
-
55137850 COVER, THERMOSTATCOVER, THERMOSTAT
-
65632529-329 COVER, HEADCOVER, HEAD
-
75411411 O-RINGO-RING
-
85413036 SEAL, HEADSEAL, HEAD
-
97052157 FITTING 90 DEGREEFITTING 90 DEGREE
-
103022435 HEAD, CYLINDERHEAD, CYLINDER
-
115410932 O-RINGO-RING
-
125411359 O-RINGO-RING
-
137547013 NUTNUT
-
143022305 CYLINDERCYLINDER
-
155813312 GASKET, CYLINDER BASE, METALGASKET, CYLINDER BASE, METAL
-
167081432 CLAMP, HOSECLAMP, HOSE
-
175413080 HOSE, COOLANT, THROTTLE BODYHOSE, COOLANT, THROTTLE BODY
