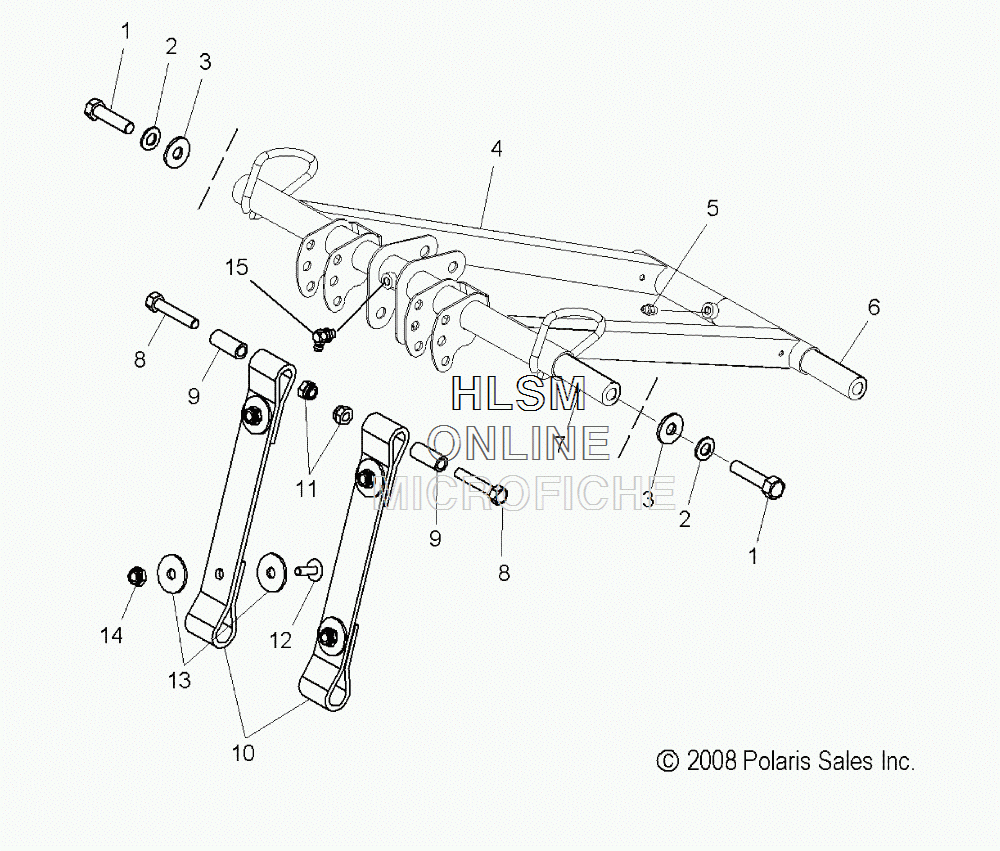

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 VOYAGER [S14CS6GSL] - 2014 года выпуска
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
41542471-329 ARM, FRONT TORQUE, BLACKARM, FRONT TORQUE, BLACK
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
65334026 SHAFTSHAFT
-
75133987 SHAFTSHAFT
-
87512329 BOLTBOLT
-
95333522 BUSHINGBUSHING
-
105413983 STRAP, LIMITERSTRAP, LIMITER
-
117542324 NUT, NYLOKNUT, NYLOK
-
127517313 SCREWSCREW
-
137556175 WASHER, FLATWASHER, FLAT
-
147542344 NUT, NYLOKNUT, NYLOK
-
157080510 FITTING, ZERKFITTING, ZERK
