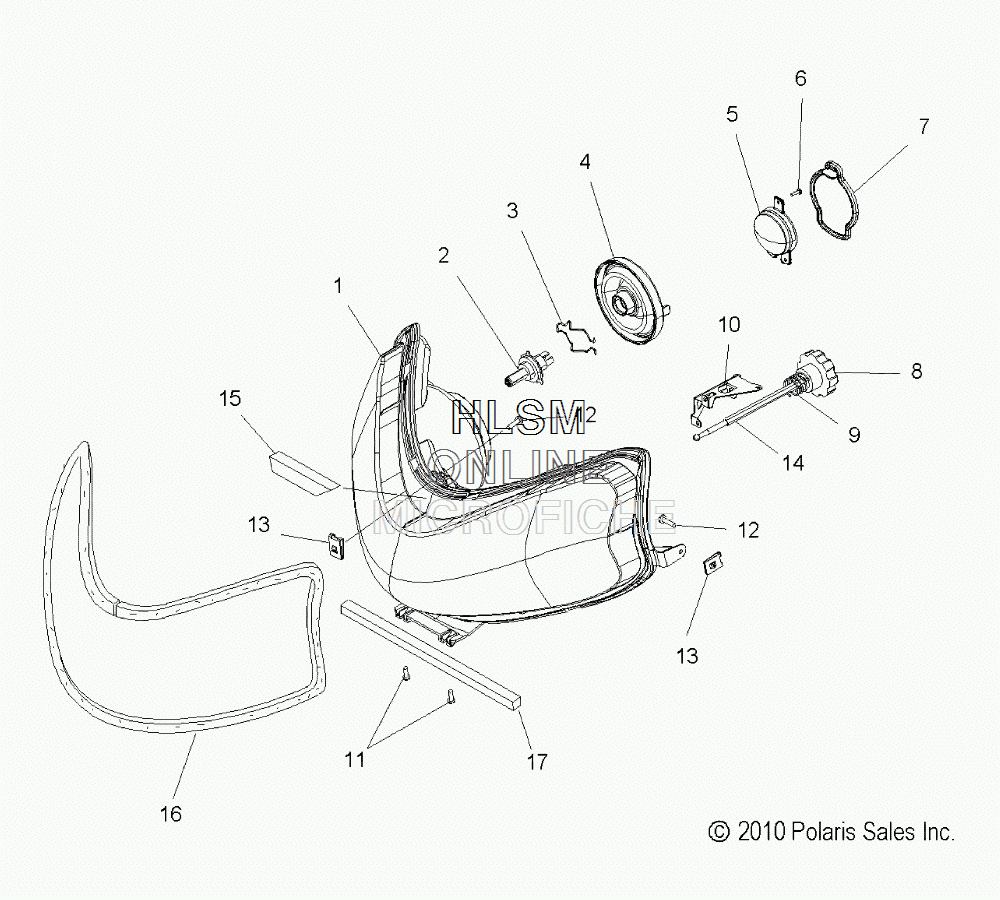

HEADLIGHT ASSEMBLY для Polaris 600 WIDETRAK IQ INTL [S14PU6NEL] - 2014 года выпуска
-
№АртикулНазвание
-
12410397 ASM., HEADLIGHTASM., HEADLIGHT
-
22870448 BULB, HEADLIGHTBULB, HEADLIGHT
-
35247526 BAIL, WIREBAIL, WIRE
-
45412479 BOOT, LARGEBOOT, LARGE
-
55435560 DOME, HEADLIGHT, CHROMEDOME, HEADLIGHT, CHROME
-
67518350 SCREWSCREW
-
75412611 COVER, DOMECOVER, DOME
-
85435247 KNOBKNOB
-
97042323 SPRING, COMPRESSIONSPRING, COMPRESSION
-
105248391 RETAINER, HEADLIGHT ADJUSTERRETAINER, HEADLIGHT ADJUSTER
-
117518577 SCREWSCREW
-
127512068 SCREWSCREW
-
137670112 NUT, U-TYPENUT, U-TYPE
-
145136116 ROD, HEADLIGHT ADJUSTROD, HEADLIGHT ADJUST
-
155813531 FOAM, HEADLIGHT SEAL, 4 INCHFOAM, HEADLIGHT SEAL, 4 INCH
-
165813523 FOAM, HEADLIGHT SEAL, 18 INCHFOAM, HEADLIGHT SEAL, 18 INCH
-
175813420 FOAM, HEADLIGHT SEAL, 54.25 INCHFOAM, HEADLIGHT SEAL, 54.25 INCH
