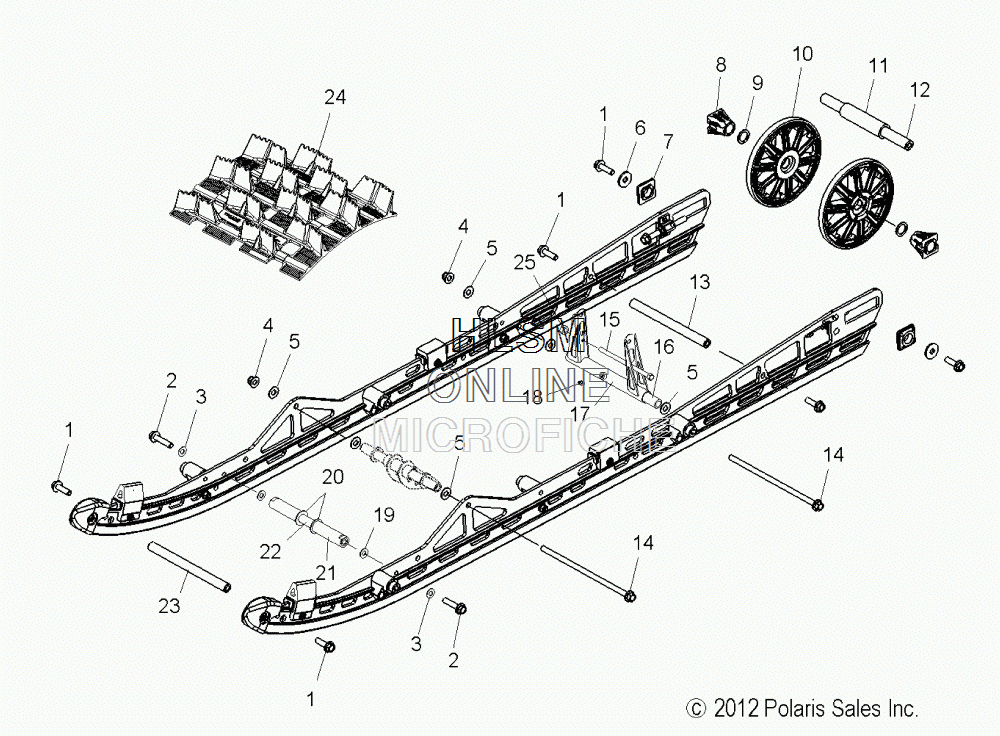

SUSPENSION - REAR для Polaris 800 RMK 155 INTL [S14CM8GSAGEA] - 2014 года выпуска
-
№АртикулНазвание
-
17518957 SCREWSCREW
-
27519216 SCREWSCREW
-
37556042 WASHERWASHER
-
47547423 NUT, NYLOKNUT, NYLOK
-
57556545 WASHERWASHER
-
67556490 WASHER, SPRINGWASHER, SPRING
-
75436496 SPACER, IDLERSPACER, IDLER
-
85432535 SPACER, IDLERSPACER, IDLER
-
97555918 BUSHINGBUSHING
-
101590431-070 ASM., WHEEL, BLACKASM., WHEEL, BLACK
-
107710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
103514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
115333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
125137224 SHAFT, IDLERSHAFT, IDLER
-
135136572 SHAFTSHAFT
-
147519198 SCREWSCREW
-
157519201 BOLTBOLT
-
165137418 SHAFT, CROSSSHAFT, CROSS
-
171542906-329 ARM, REAR PIVOT, BLACKARM, REAR PIVOT, BLACK
-
187080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
197555832 WASHERWASHER
-
207556210 WASHERWASHER
-
215336325 SPACER, SHOCK CENTERING, METRICSPACER, SHOCK CENTERING, METRIC
-
225137312 SHAFTSHAFT
-
235136572 SHAFTSHAFT
-
245413622 TRACK, 155 X 2.4, SINGLE LAYERTRACK, 155 X 2.4, SINGLE LAYER
-
257547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
