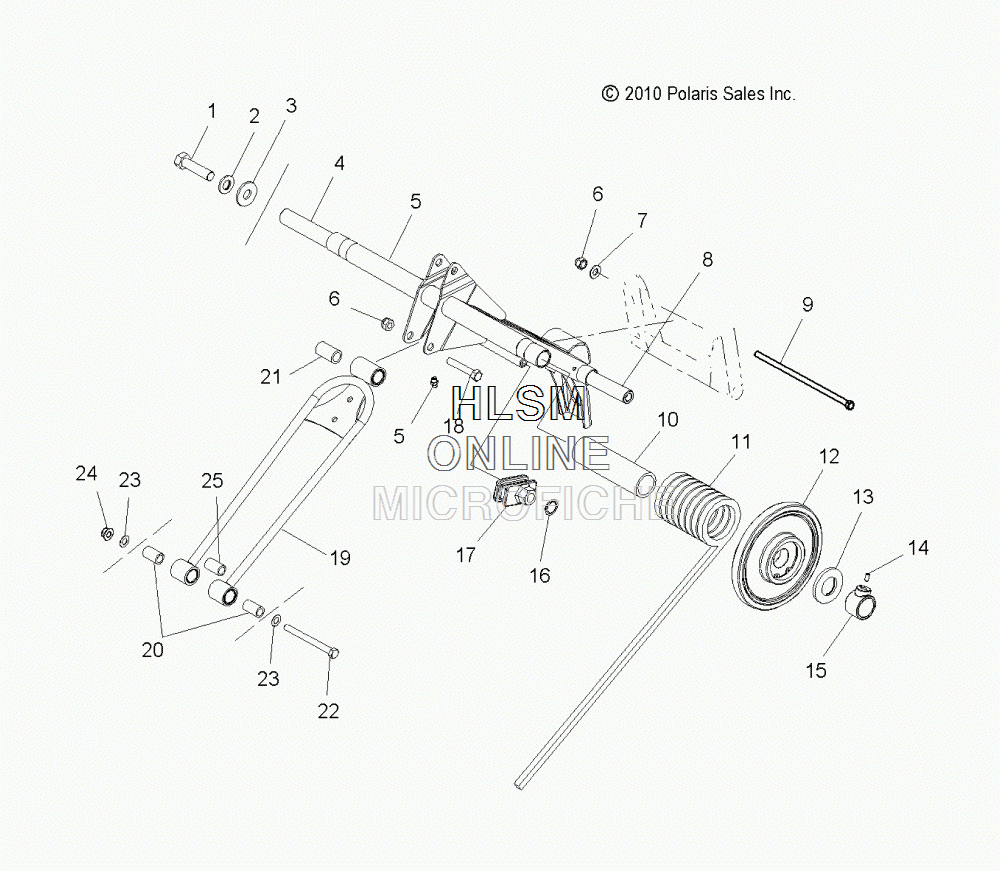

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 SWITCHBACK ASSAULT [S14CL8] - 2014 года выпуска
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45133987 SHAFTSHAFT
-
51541963-067 ARM, REAR TORQUE, BLACKARM, REAR TORQUE, BLACK
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67547217 NUT, NYLOKNUT, NYLOK
-
77558402 WASHER, FLATWASHER, FLAT
-
85337198 SHAFTSHAFT
-
97517908 SCREWSCREW
-
105434337 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
117041629-067 SPRING, TORSION, .359/77, BLACK, LEFT HAND (STD)SPRING, TORSION, .359/77, BLACK, LEFT HAND (STD)
-
117041630-067 SPRING, TORSION, .359/77, BLACK, RIGHT HAND (STD)SPRING, TORSION, .359/77, BLACK, RIGHT HAND (STD)
-
117041627-067 SPRING, TORSION, .347/77, BLACK, LEFT HAND (OPT)SPRING, TORSION, .347/77, BLACK, LEFT HAND (OPT)
-
117041628-067 SPRING, TORSION, .347/77, BLACK, RIGHT HAND (OPT)SPRING, TORSION, .347/77, BLACK, RIGHT HAND (OPT)
-
121590328 ASM., WHEEL, BOGIEASM., WHEEL, BOGIE
-
123514303 BEARINGBEARING
-
127718407 RING, RETAININGRING, RETAINING
-
137571605 WASHER, SPRINGWASHER, SPRING
-
147518262 SCREW, SOCKET SETSCREW, SOCKET SET
-
155135424 SPACERSPACER
-
167080394 CLIP, PUSH ONCLIP, PUSH ON
-
175432983 ROLLER, SPRING, ADJUSTABLE, SQUAREROLLER, SPRING, ADJUSTABLE, SQUARE
-
187515415 SCREWSCREW
-
191542170 ASM., ROD, SHOCK (INCL. BUSHINGS)ASM., ROD, SHOCK (INCL. BUSHINGS)
-
195435722 BUSHINGBUSHING
-
195435723 BUSHINGBUSHING
-
205135043 BUSHINGBUSHING
-
215134601 BUSHINGBUSHING
-
227518263 SCREWSCREW
-
237555795 WASHER, WAVEWASHER, WAVE
-
247547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
255333905 SLEEVESLEEVE
