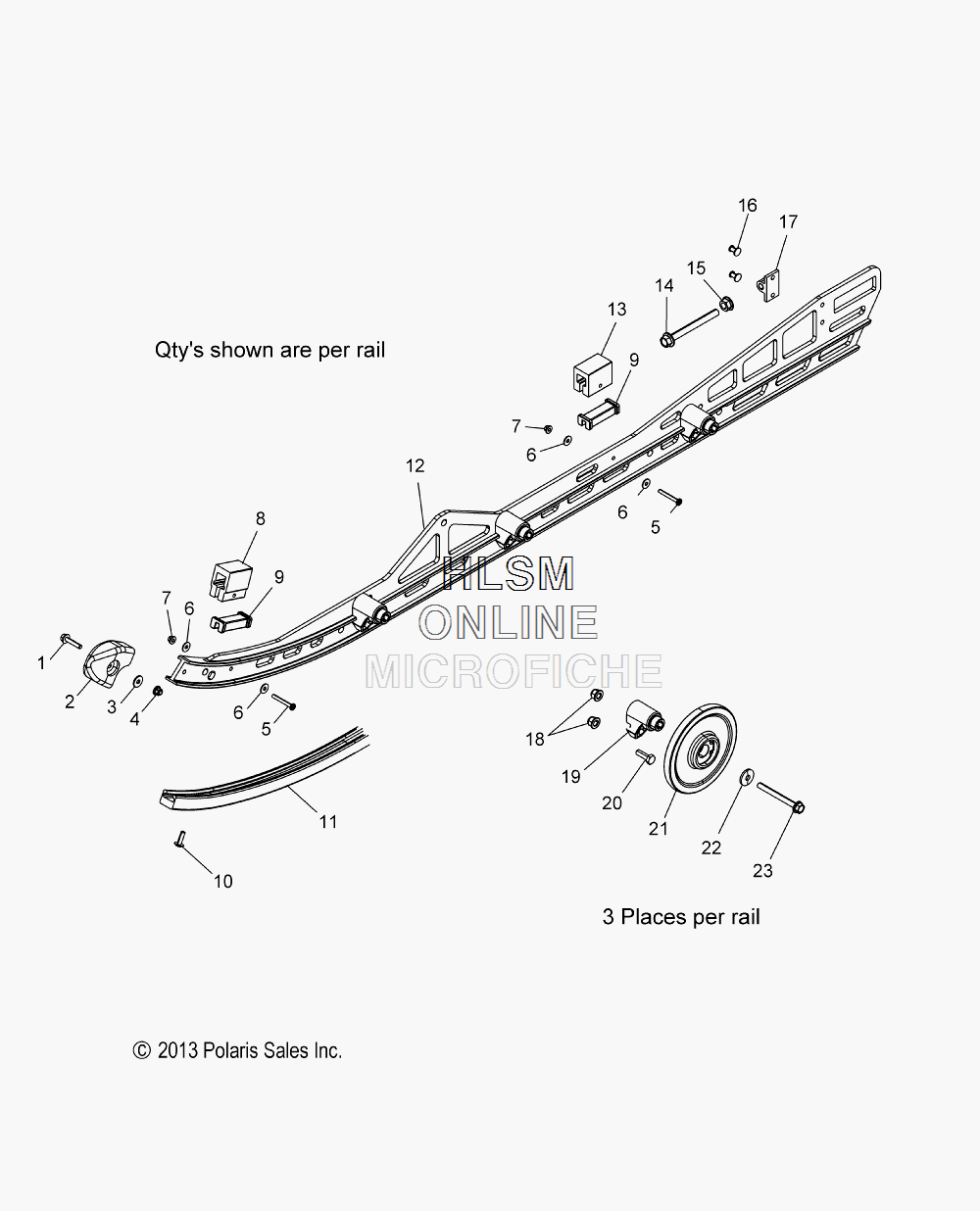

SUSPENSION - RAIL MOUNTING для Polaris 550 INDY 144 ES [S15CR5BSL] - 2015 года выпуска
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
25438374 CAP, RAIL TIPCAP, RAIL TIP
-
37556064 WASHER, FLATWASHER, FLAT
-
47547339 NUT, NYLOKNUT, NYLOK
-
57518951 SCREWSCREW
-
67556470 WASHER, FLATWASHER, FLAT
-
77547427 NUT, NYLOKNUT, NYLOK
-
85521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
95432946 LINER, BUMPERLINER, BUMPER
-
107518976 SCREWSCREW
-
115521633 HI-FAXHI-FAX
-
121542951 ASM., RAIL, BSC COIL OVER, 144, LEFT HAND (INCL. 1-9,13,16,17)ASM., RAIL, BSC COIL OVER, 144, LEFT HAND (INCL. 1-9,13,16,17)
-
121542952 ASM., RAIL, BSC COIL OVER, 144, RIGHT HAND (INCL. 1-9,13,16,17)ASM., RAIL, BSC COIL OVER, 144, RIGHT HAND (INCL. 1-9,13,16,17)
-
135521812 BUMPERBUMPER
-
147519167 SCREWSCREW
-
157547017 NUTNUT
-
167621501 RIVETRIVET
-
175130530 BLOCK, IDLER BOLT ADJUSTABLEBLOCK, IDLER BOLT ADJUSTABLE
-
187547332 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
195631446 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
207518952 SCREWSCREW
-
211590419-070 ASM., WHEELASM., WHEEL
-
213514012 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
217710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
227556489 WASHERWASHER
-
237519217 SCREWSCREW
