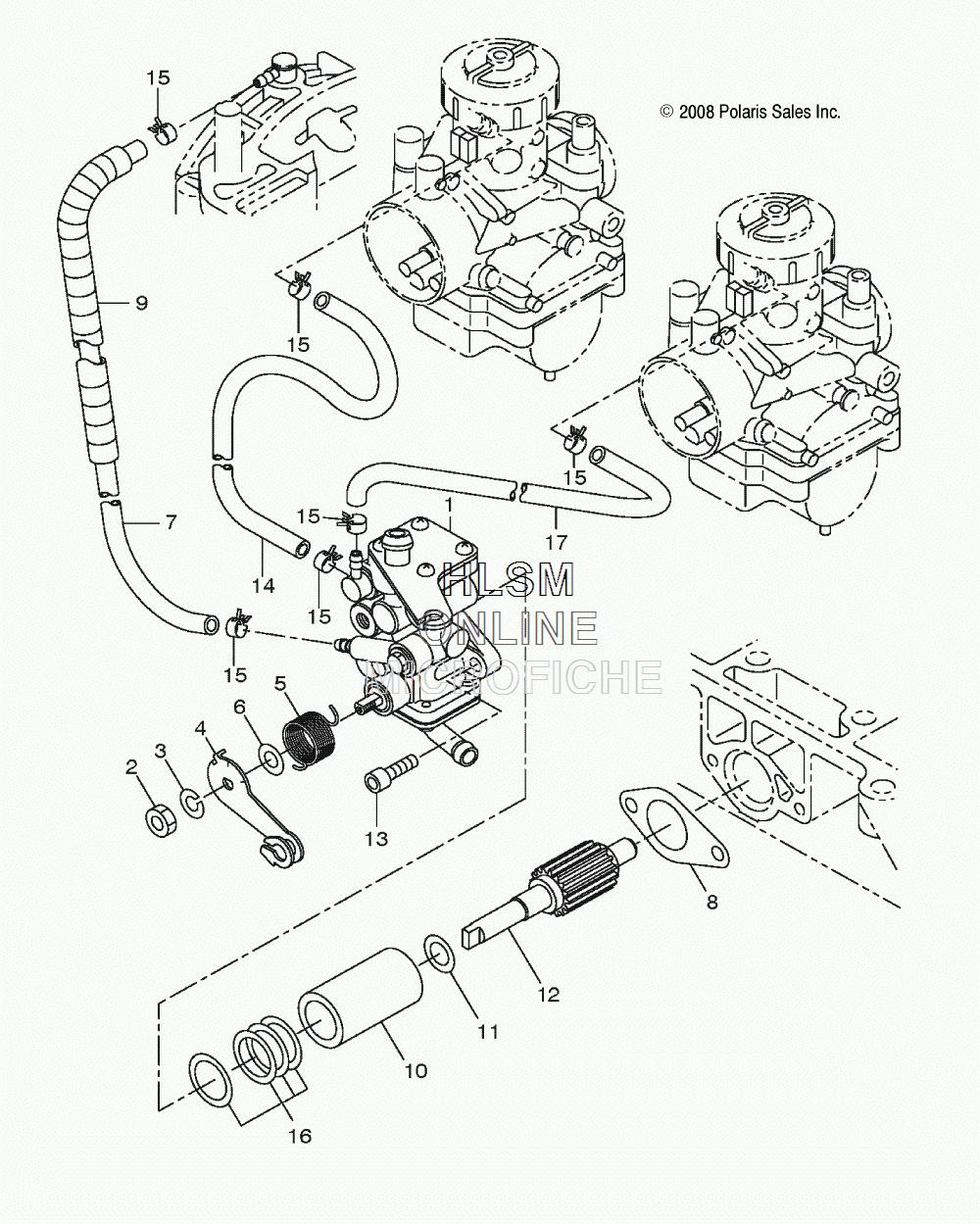

OIL PUMP ASSEMBLY для Polaris 550 INDY ES [S15CB5BSL] - 2015 года выпуска
-
№АртикулНазвание
-
13090361 ASM., OIL PUMP (INCL. 2-7)ASM., OIL PUMP (INCL. 2-7)
-
23083120 NUTNUT
-
33083121 WASHER, SPRINGWASHER, SPRING
-
43089227 LEVER, CONTROLLEVER, CONTROL
-
53089228 SPRING, RETURNSPRING, RETURN
-
63083445 COLLAR, CAM SHAFTCOLLAR, CAM SHAFT
-
73084467 ASM., PIPE, VINYLASM., PIPE, VINYL
-
85813237 GASKETGASKET
-
93087114 TUBETUBE
-
103090197 BUSHINGBUSHING
-
113083130 SPACERSPACER
-
123090198 GEARGEAR
-
133090199 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
143085157 PIPE, VINYL (INCL. 15)PIPE, VINYL (INCL. 15)
-
153083141 CLAMP, HOSECLAMP, HOSE
-
163083671 SPACER 1, .15MMSPACER 1, .15MM
-
163083672 SPACER 2, .3MMSPACER 2, .3MM
-
163083673 SPACER 3, .6MMSPACER 3, .6MM
-
173087185 PIPE, VINYLPIPE, VINYL
