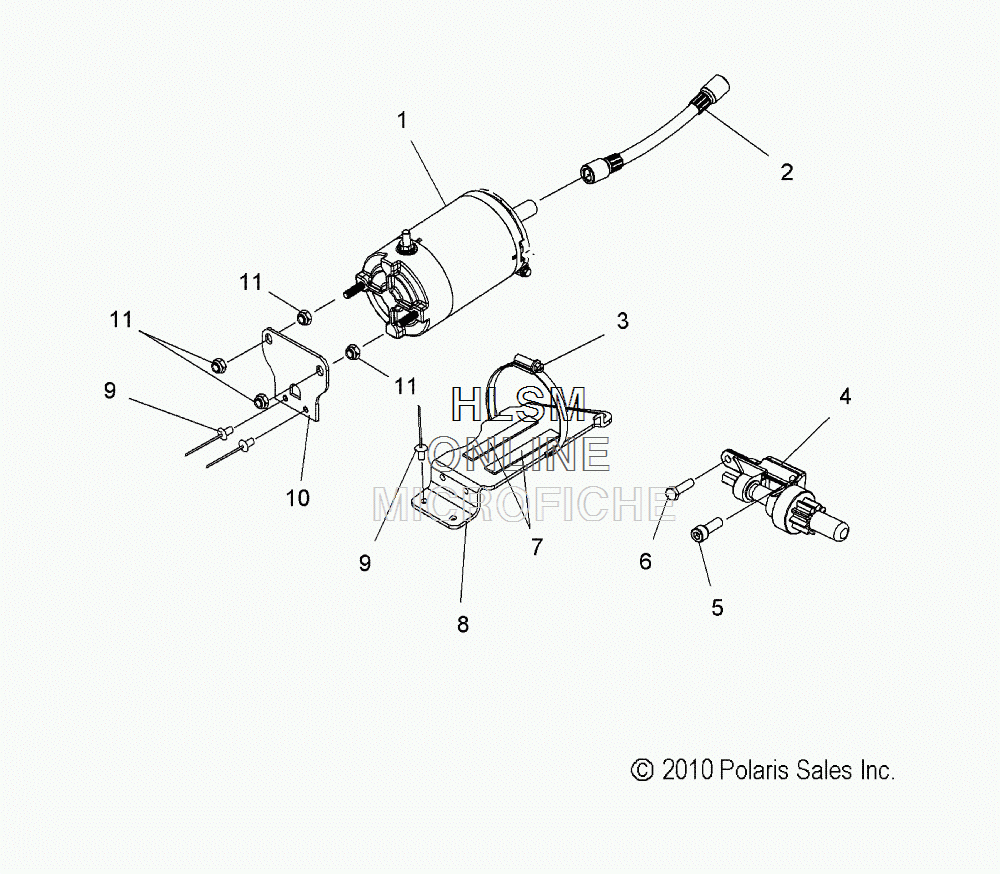

STARTING MOTOR для Polaris 600 IQ LXT [S15PT6HSL] - 2015 года выпуска
-
№АртикулНазвание
-
14012729 MOTOR, STARTERMOTOR, STARTER
-
17542105 NUT, HEXNUT, HEX
-
26230385 SHAFT, FLEXSHAFT, FLEX
-
37081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
41204130 ASM., PINION/PINION BRACKETASM., PINION/PINION BRACKET
-
57519020 SCREWSCREW
-
67516823 SCREWSCREW
-
75810290 PAD, BATTERYPAD, BATTERY
-
85251277 BRACKET, MOUNTING, PLATE, BOTTOMBRACKET, MOUNTING, PLATE, BOTTOM
-
97661637 RIVETRIVET
-
105250779 BRACKET, MOUNTING, PLATE, ENDBRACKET, MOUNTING, PLATE, END
-
117542153 NUTNUT
