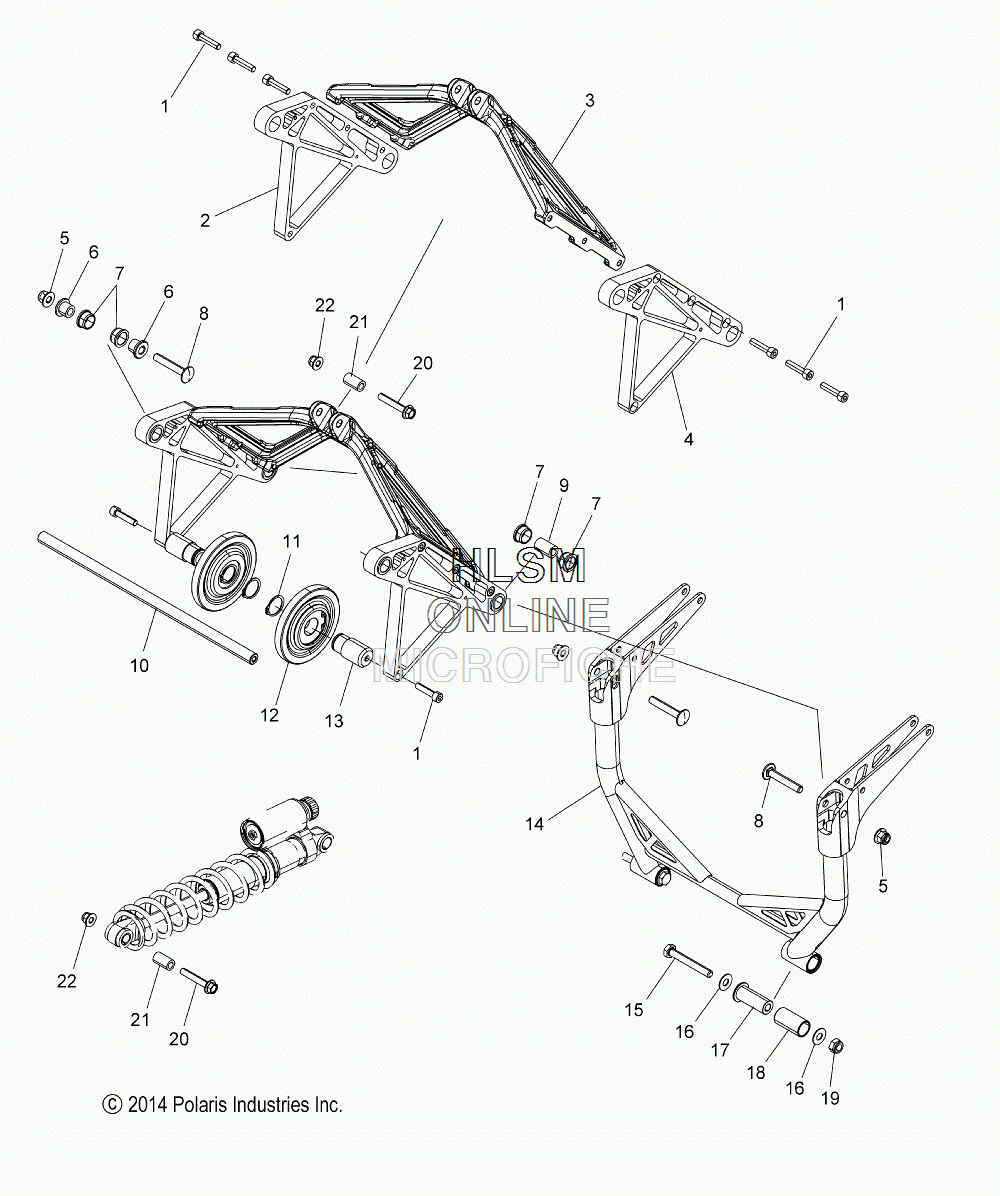

SUSPENSION - CRANK ASSEMBLY - REAR для Polaris 600 RUSH PRO S [S15DP6] - 2015 года выпуска
-
№АртикулНазвание
-
17519981 SCREWSCREW
-
25138644 CRANK, SIDE, RIGHT HANDCRANK, SIDE, RIGHT HAND
-
35138645 CRANK, CENTERCRANK, CENTER
-
45138643 CRANK, SIDE, LEFT HANDCRANK, SIDE, LEFT HAND
-
57547423 NUTNUT
-
65138652 SHAFT, RPA, UPPER LWTSHAFT, RPA, UPPER LWT
-
75438876 BUSHING, CRANKBUSHING, CRANK
-
87519982 BOLT, CARRIAGEBOLT, CARRIAGE
-
95138654 SHAFT, PIVOT, LWT UPPERSHAFT, PIVOT, LWT UPPER
-
105139816 SHAFT, CARRIERSHAFT, CARRIER
-
117710603 RING, RETAININGRING, RETAINING
-
121590538 ASM., WHEEL, CARRIERASM., WHEEL, CARRIER
-
135139469 SPACER, CARRIERSPACER, CARRIER
-
141543461-458 ASM., REAR PIVOT, MATTE BLACK (INCL. 18)ASM., REAR PIVOT, MATTE BLACK (INCL. 18)
-
157519015 SCREWSCREW
-
167556545 WASHERWASHER
-
175138648 SHAFT, PIVOT, LWT LOWERSHAFT, PIVOT, LWT LOWER
-
185438875 BUSHING, PIVOTBUSHING, PIVOT
-
197547442 NUTNUT
-
207518941 SCREWSCREW
-
215137360 BUSHINGBUSHING
-
227547423 NUTNUT
