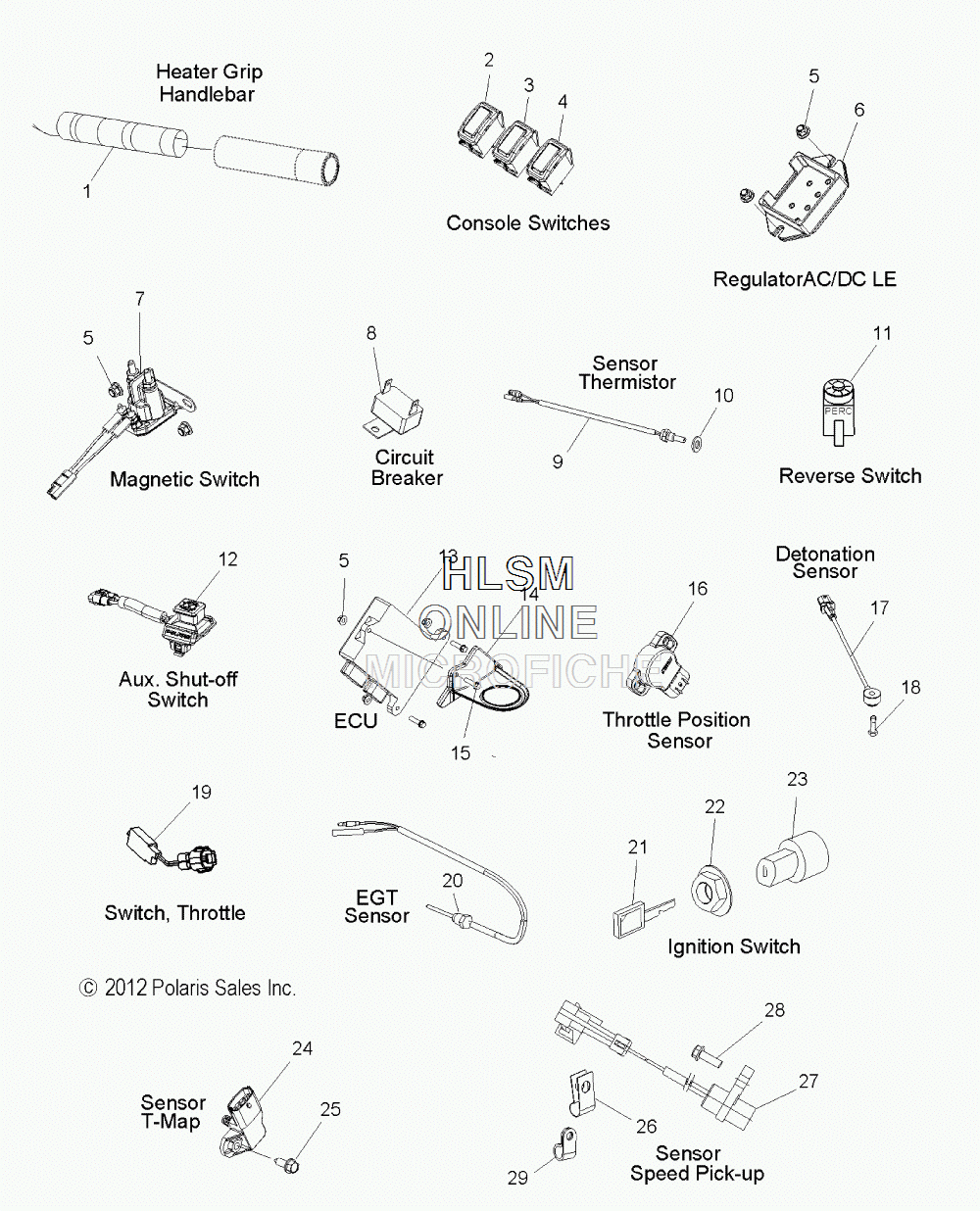

ELECTRICAL - SENSORS AND SWITCHES для Polaris 600 SWITCHBACK ASSAULT [S15CL6] - 2015 года выпуска
-
№АртикулНазвание
-
12411087 GRIP, HEATER, LO/HI, ALUMGRIP, HEATER, LO/HI, ALUM
-
24011319 SWITCH, HAND WARMERSWITCH, HAND WARMER
-
34012090 SWITCH, MODE/ SETSWITCH, MODE/ SET
-
44012091 SWITCH, HEADLIGHT, HI/LOSWITCH, HEADLIGHT, HI/LO
-
57547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
64013460 REGULATOR, AC/DC LEREGULATOR, AC/DC LE
-
74012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
82411592 BREAKER, CIRCUIT, 12 AMPBREAKER, CIRCUIT, 12 AMP
-
94012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
107556357 WASHER, COPPERWASHER, COPPER
-
114010874 SWITCH, E/R, MOMENTARYSWITCH, E/R, MOMENTARY
-
124013615 SWITCH, AUX. SHUTOFFSWITCH, AUX. SHUTOFF
-
134013424 ECU, DC/SDI LE, 32MHZECU, DC/SDI LE, 32MHZ
-
145438088 MOUNT, ECUMOUNT, ECU
-
157518533 BOLTBOLT
-
163131751 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
172410369 SENSOR, DETONATIONSENSOR, DETONATION
-
187517262 SCREWSCREW
-
194013616 SWITCH, THROTTLESWITCH, THROTTLE
-
204013133 SENSOR, EGTSENSOR, EGT
-
215410611 CAP W/KEYCAP W/KEY
-
227547035 NUT, IGNITIONNUT, IGNITION
-
232205055 KIT, IGNITION SWITCH, PLATEDKIT, IGNITION SWITCH, PLATED
-
242411528 SENSOR, T-MAPSENSOR, T-MAP
-
257512095 SCREWSCREW
-
267080367 CLAMP, CABLECLAMP, CABLE
-
272411353 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
287518280 SCREWSCREW
-
297080960 CLAMP, CABLECLAMP, CABLE
