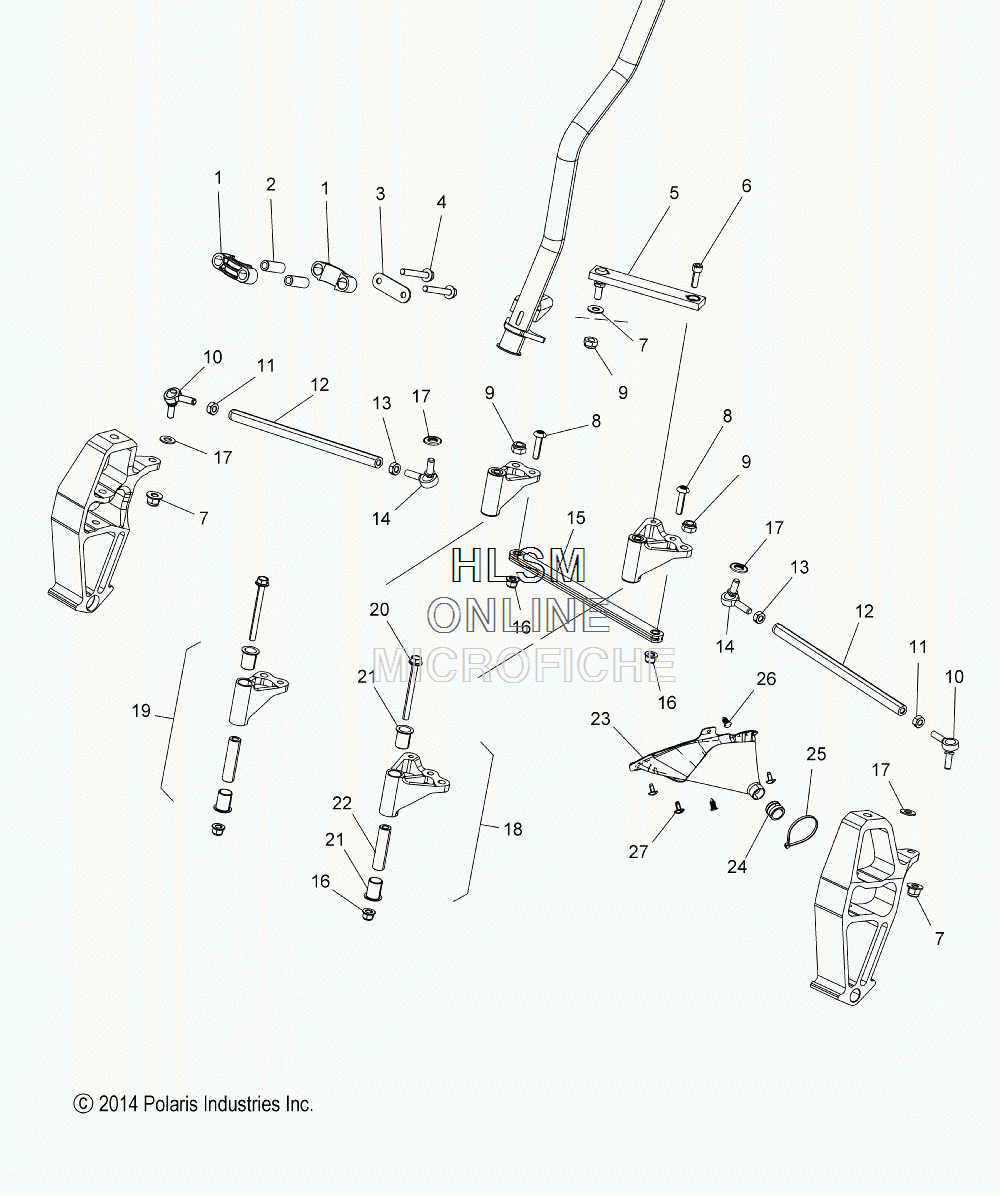

STEERING - LOWER для Polaris 800 RUSH PRO X LE (60TH ANNIV.) [S15DF8PS] - 2015 года выпуска
-
№АртикулНазвание
-
15450880 BUSHING, STEERING POST LOWERBUSHING, STEERING POST LOWER
-
25137796 SPACER, BUSHINGSPACER, BUSHING
-
35258308 STRAP, STEERINGSTRAP, STEERING
-
47519242 SCREWSCREW
-
57061186 ASM., DRAG LINK FIXEDASM., DRAG LINK FIXED
-
67519010 SCREWSCREW
-
77556153 WASHERWASHER
-
87519238 SCREWSCREW
-
97547442 NUTNUT
-
107061166 ROD END, RIGHT HANDROD END, RIGHT HAND
-
117547430 NUTNUT
-
125336578 TIE ROD (INCL. 23-27)TIE ROD (INCL. 23-27)
-
137547431 NUT (INCL. 14-16)NUT (INCL. 14-16)
-
147061165 ROD END, LEFT HANDROD END, LEFT HAND
-
157061190 ASM., RACK, LINKASM., RACK, LINK
-
167547332 NUTNUT
-
177555806 WASHERWASHER
-
181824284 ASM., PITMAN ARMASM., PITMAN ARM
-
191824285 ASM., IDLER ARMASM., IDLER ARM
-
207519972 SCREWSCREW
-
215438460 BUSHINGBUSHING
-
225138365 SHAFT, PIVOT, IDLERSHAFT, PIVOT, IDLER
-
232635202 ASM., TIE ROD BOOT, LEFT HANDASM., TIE ROD BOOT, LEFT HAND
-
232635203 ASM., TIE ROD BOOT, RIGHT HANDASM., TIE ROD BOOT, RIGHT HAND
-
245439309 BUSHING, TIE ROD BOOTBUSHING, TIE ROD BOOT
-
257080138 CABLE TIECABLE TIE
-
267661953 CLIP, X MAS TREECLIP, X MAS TREE
-
277519092 SCREWSCREW
