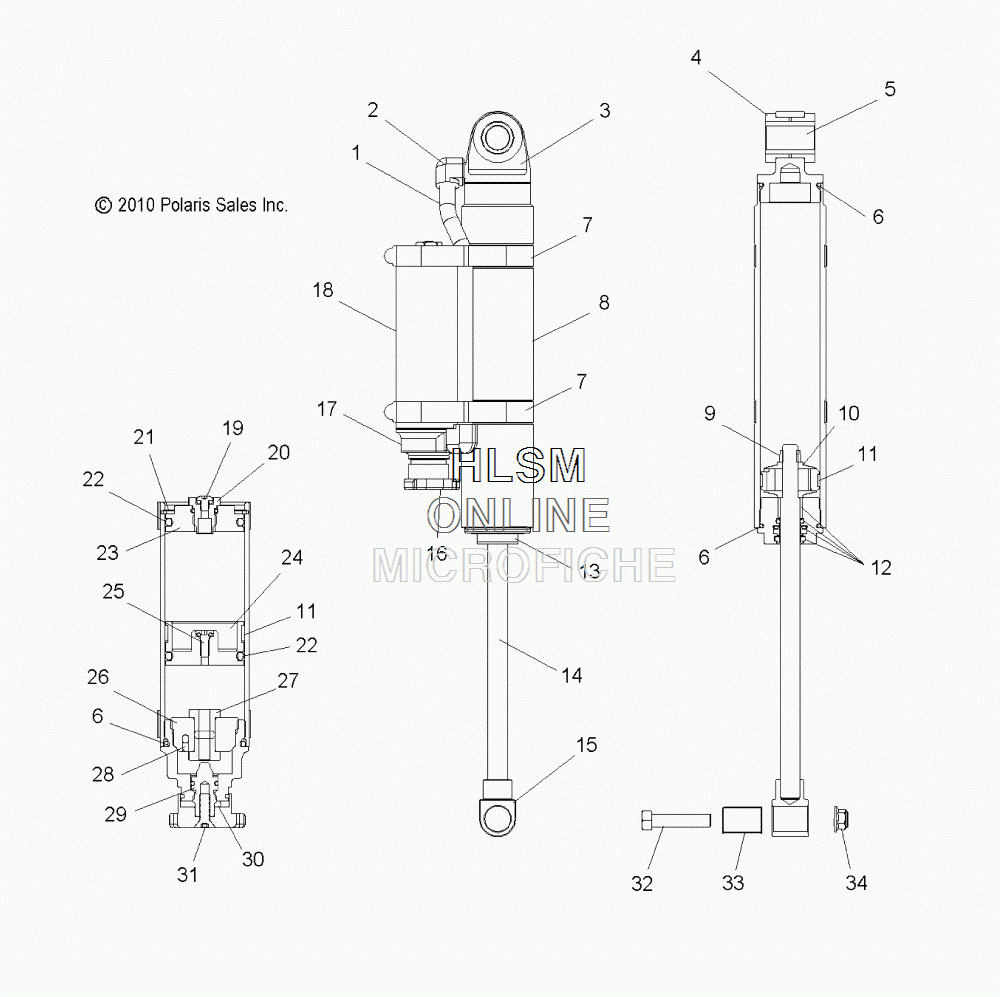

SUSPENSION - REAR SHOCK TRACK для Polaris 800 SWITCHBACK ASSAULT INTL [S15CW8] - 2015 года выпуска
-
№АртикулНазвание
-
--7043635 SHOCK, REAR TRACK, WALKER EVANSSHOCK, REAR TRACK, WALKER EVANS
-
11800198 HOSEHOSE
-
21800113 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
31800443 LOOP, BODY, CLEARLOOP, BODY, CLEAR
-
41800036 BUSHING/URETHANEBUSHING/URETHANE
-
51800032 SLEEVESLEEVE
-
61800027 O-RING, BODYO-RING, BODY
-
71800022 CLAMP, HOSECLAMP, HOSE
-
81800442 BODY, REAR TRACK, BLACKBODY, REAR TRACK, BLACK
-
91800031 NUT, CRIMPNUT, CRIMP
-
101800001 PISTON, CONVEXPISTON, CONVEX
-
111800297 BAND, WEARBAND, WEAR
-
121800292 BUSHING, SHAFTBUSHING, SHAFT
-
121800095 O-RINGO-RING
-
121800294 SEAL, U-CUPSEAL, U-CUP
-
121800295 SEAL, WIPERSEAL, WIPER
-
131800403 ASM., SEAL HEADASM., SEAL HEAD
-
141800296 SHAFTSHAFT
-
151800096 EYELET, SHAFTEYELET, SHAFT
-
161800441 KNOB, CLICKER, BLACKKNOB, CLICKER, BLACK
-
171800440 HOUSING, CLICKER, CLEARHOUSING, CLICKER, CLEAR
-
181800429 RESERVOIRRESERVOIR
-
191800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
191800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
201800329 VALVE, NEEDLEVALVE, NEEDLE
-
201800215 O-RING, STUDO-RING, STUD
-
211800019 RING, SNAP, RESERVOIRRING, SNAP, RESERVOIR
-
221800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
231800430 CAP, END, RESERVOIRCAP, END, RESERVOIR
-
241800281 PISTON, RESERVOIRPISTON, RESERVOIR
-
251800043 SCREW, BLEEDSCREW, BLEED
-
251800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
261800217 PISTONPISTON
-
271800219 SCREWSCREW
-
281800127 BALL, D-TENTBALL, D-TENT
-
291800352 STUD, CLICKERSTUD, CLICKER
-
291800215 O-RING, STUDO-RING, STUD
-
301800128 SPRING, D-TENTSPRING, D-TENT
-
301800127 BALL, D-TENTBALL, D-TENT
-
311800196 SCREWSCREW
-
327512410 SCREWSCREW
-
335010422 BUSHINGBUSHING
-
347547263 NUT, FLANGE, LOCKNUT, FLANGE, LOCK
