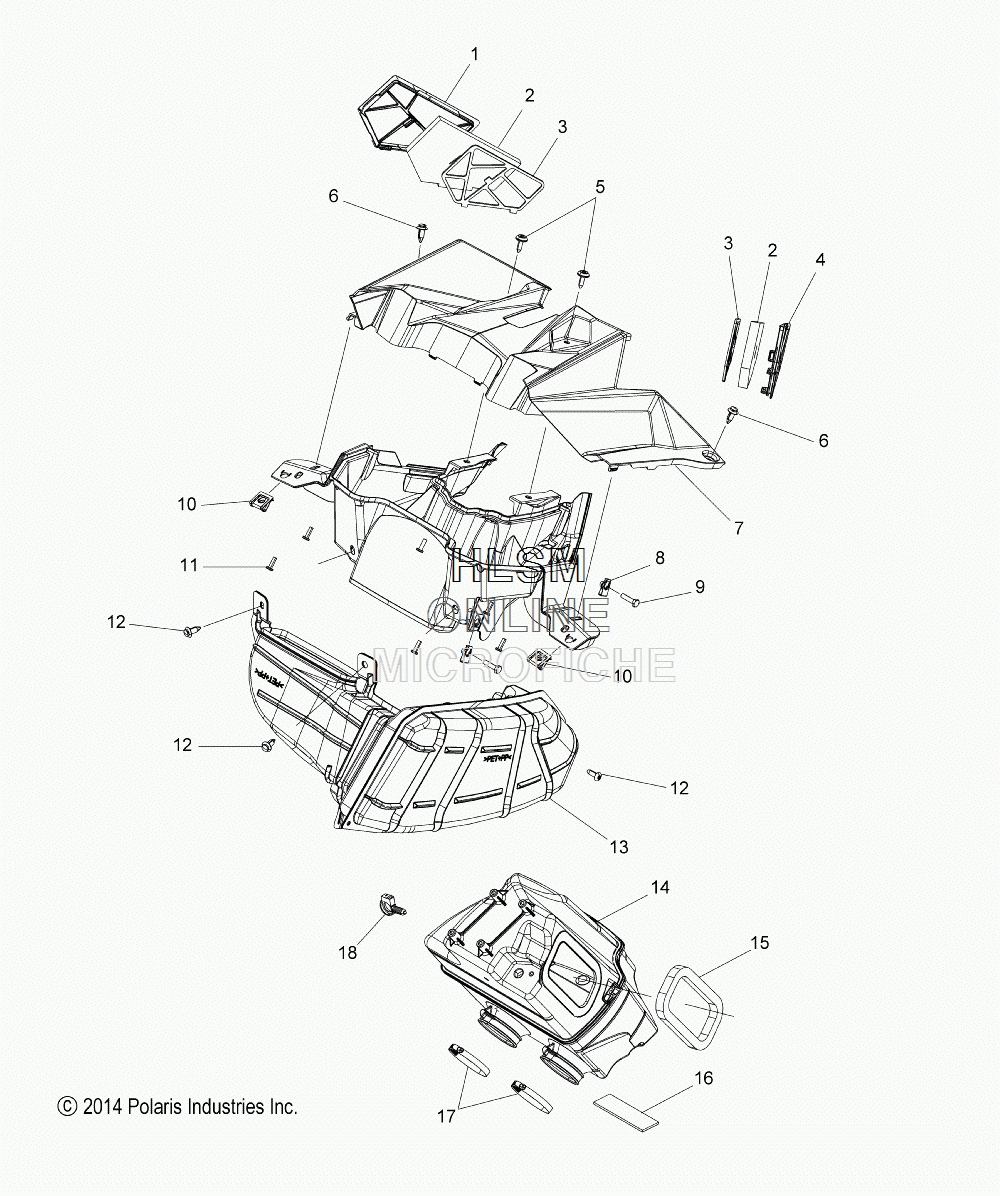

AIR INTAKE SYSTEM для Polaris 800 SWITCHBACK PRO S [S15DS8PS] - 2015 года выпуска
-
№АртикулНазвание
-
15450473 VENT, INTAKE, RIGHT HANDVENT, INTAKE, RIGHT HAND
-
25814024 FOAM, INTAKEFOAM, INTAKE
-
35814025 BACKER, INTAKE VENTBACKER, INTAKE VENT
-
45450472 VENT, INTAKE, LEFT HANDVENT, INTAKE, LEFT HAND
-
57519112 SCREWSCREW
-
67661855 RIVET, TUFLOKRIVET, TUFLOK
-
75450462-070 PLENUM, UPPER, IN MOLD, BLACKPLENUM, UPPER, IN MOLD, BLACK
-
75451240-599 PLENUM, UPPER, WHITE LIGHTNINGPLENUM, UPPER, WHITE LIGHTNING
-
87547366 CLIP, UCLIP, U
-
97516823 SCREWSCREW
-
107710630 CLIP, 1/4 TURNCLIP, 1/4 TURN
-
117518238 SCREWSCREW
-
127519045 SCREWSCREW
-
131205031 ASM., TUBE, INTAKEASM., TUBE, INTAKE
-
141204766 ASM., AIR SILENCERASM., AIR SILENCER
-
155813962 FOAM, INTAKE, LOWERFOAM, INTAKE, LOWER
-
165810947 FOAM, SEALFOAM, SEAL
-
177080909 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
184010589 CLIP, ROSEBUDCLIP, ROSEBUD
