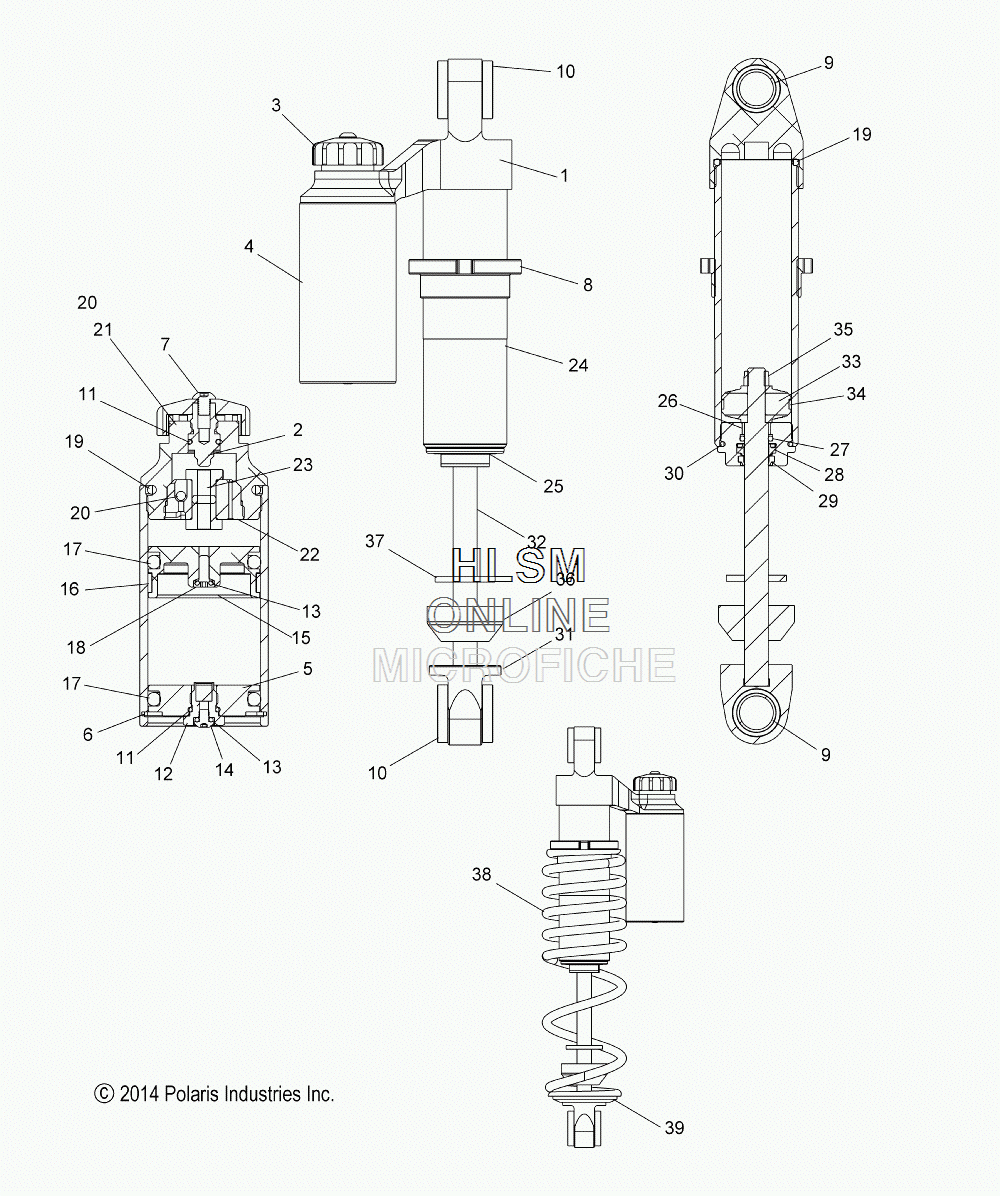

SUSPENSION - FRONT SHOCK TRACK (7043956) для Polaris 800 SWITCHBACK PRO-X [S15DR8PS] - 2015 года выпуска
-
№АртикулНазвание
-
--7044121 SHOCK, FT, WESHOCK, FT, WE
-
11800646 LOOP, PB, 65 DEGREELOOP, PB, 65 DEGREE
-
21800352 STUD, CLICKERSTUD, CLICKER
-
31800460 KNOB, CLICKERKNOB, CLICKER
-
41800419 BODY, RESERVOIR, 3.75L, BLACKBODY, RESERVOIR, 3.75L, BLACK
-
51800420 END CAP, RESERVOIR, 2'END CAP, RESERVOIR, 2'
-
61800159 RING, SNAPRING, SNAP
-
71800357 SCREW, BTN SSSCREW, BTN SS
-
81800046 RETAINER, SPRINGRETAINER, SPRING
-
91800405 SLEEVE, 1.15LSLEEVE, 1.15L
-
101800406 BUSHINGBUSHING
-
111800501 O-RINGO-RING
-
121800329 NEEDLE VALVENEEDLE VALVE
-
131800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
141800109 SCREW, BTN HD, 8/32SCREW, BTN HD, 8/32
-
151800355 PISTON, RES., 2'PISTON, RES., 2'
-
161800185 BAND, PISTONBAND, PISTON
-
171800184 O-RINGO-RING
-
181800043 BLEED SCREWBLEED SCREW
-
191800030 O-RINGO-RING
-
201800127 BALL, D-TENTBALL, D-TENT
-
211800128 SPRING, D-TENTSPRING, D-TENT
-
221800217 PISTONPISTON
-
231800219 SCREWSCREW
-
241800647 BODY, FT SHOCK, 5.96LBODY, FT SHOCK, 5.96L
-
251800545 SEAL HEAD, SHORTSEAL HEAD, SHORT
-
261800544 BUSHING, SHAFTBUSHING, SHAFT
-
271800095 O-RINGO-RING
-
281800294 SEAL, U-CUPSEAL, U-CUP
-
291800295 SEAL, WIPERSEAL, WIPER
-
301800027 O-RING, BODYO-RING, BODY
-
311800408 LOOP, SHAFTLOOP, SHAFT
-
321800648 SHAFT, .50', 6.6LSHAFT, .50', 6.6L
-
331800542 PISTON, CONNVEX, THINPISTON, CONNVEX, THIN
-
341800543 WEAR BAND, THINWEAR BAND, THIN
-
351800031 CRIMP NUT, 3/8'CRIMP NUT, 3/8'
-
361800649 BUMP STOP, 1.58X.73BUMP STOP, 1.58X.73
-
371800650 SCRAPER, 1.25X.125SCRAPER, 1.25X.125
-
387043678-293 SPRING, COMP., 150#, REDSPRING, COMP., 150#, RED
-
387043678-133 SPRING, COMP., 150#, WHITESPRING, COMP., 150#, WHITE
-
395020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
