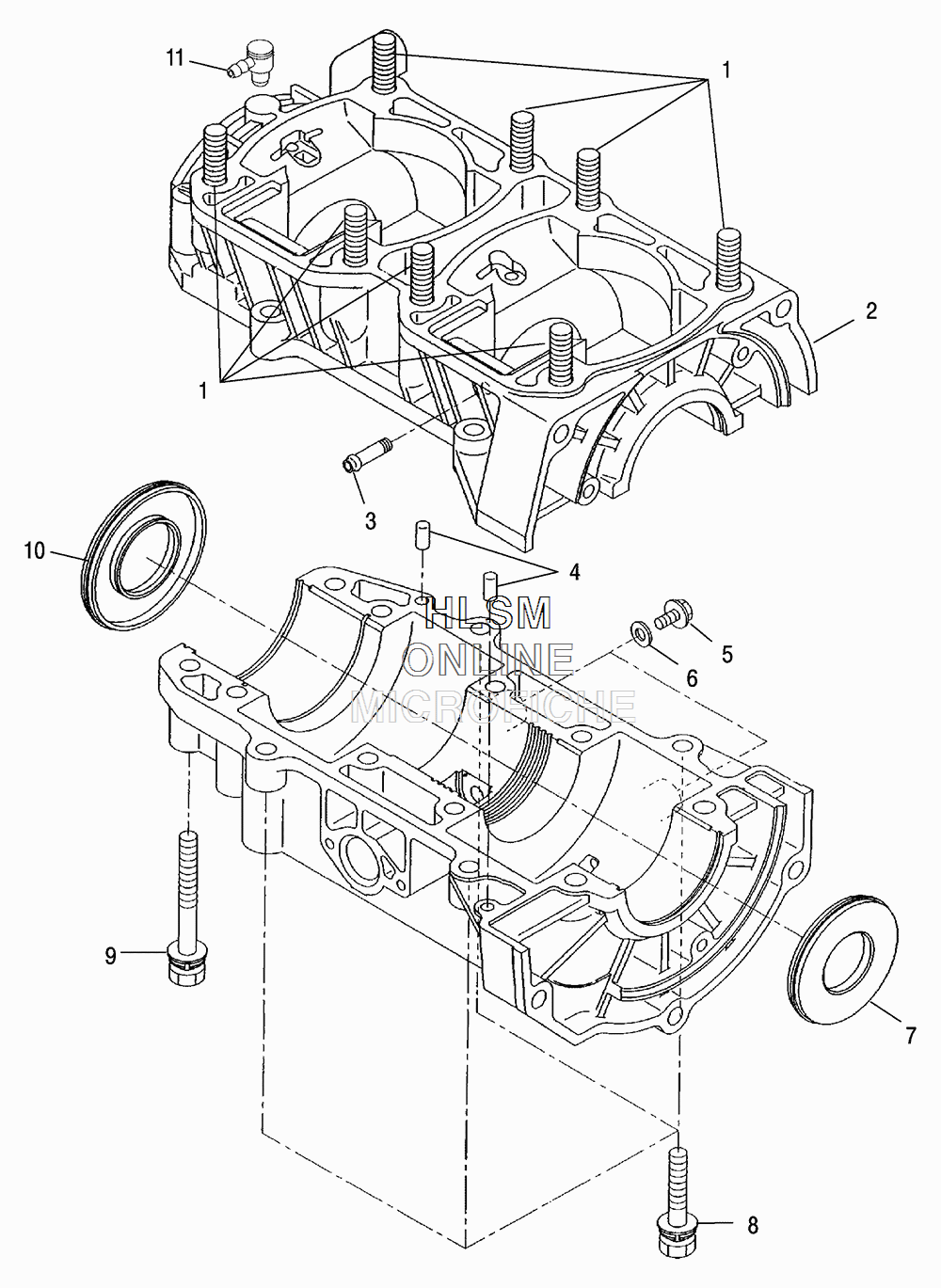

CRANKCASE ASSEMBLY для Polaris 550 INDY ADVENTURE 155 [S16CJ5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
13085713 STUDSTUD
-
23090309 ASM., CRANKCASE (INCL. 1-4,8,9,11)ASM., CRANKCASE (INCL. 1-4,8,9,11)
-
33083798 PIPE, PULSEPIPE, PULSE
-
43086838 PIN, DOWELPIN, DOWEL
-
53087256 BOLT, FLANGEBOLT, FLANGE
-
67555998 WASHER, FLATWASHER, FLAT
-
73085664 SEAL, OILSEAL, OIL
-
83084225 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
93084670 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
103085241 SEAL, OILSEAL, OIL
-
113085462 NIPPLE, ELBOWNIPPLE, ELBOW
